How to Build a Pergola: A Step-by-Step Guide for Beginners

Understand Pergola Types and Considerations

A pergola is an outdoor structure. It is constructed of a series of tall posts on which cross-beams are placed, and a lattice ceiling is laid. Light and darkness run through the lattice. A pergola, unlike a fully roofed patio, allows sun and shade to enter in unison. They have been in use by people for centuries, since their use was initially in the ancient gardens to enhance beauty and comfort in the outdoor environment. Affordable pergola ideas have become very popular as many backyard owners are adding them as they not only serve decorative purposes, but are also functional.

Freestanding Pergolas

Freestanding pergolas are not fixed to another house or building. They are suitable to be used in open areas within a yard, by a pool, or in a garden, or highlighted in the lawn. The reason is that they are not fixed to a wall, thus they can be applied anywhere.

Attached (Wall-Mounted) Pergolas

A fixed pergola is an attached pergola fitted to the side of a house or building. The use of these connects an indoor space with an outdoor space, so patios or decks have a comfortable feeling of being part of the house. The attached pergola can be more complicated to build. Its volume and setting might necessitate special fasteners entailing additional bracing, and perhaps a building permit.

Pergola Building Materials List

There are a variety of materials available to construct a pergola, with each having its advantages:

• Wood (Cedar, Redwood, Pressure-Treated Lumber): A classic wood that is natural and warm to look at. Generally affordable, wood must get constant maintenance, including sealing or staining, against the weather and pests.
• Aluminum or Vinyl: Low-maintenance products, no rot, rusting, or attack by insects. Such materials are long-lasting and tend to be of modern designs at times, but are more expensive.
• Motorized or Adjustable Designs: There are more modern types of pergola that have movable or adjustable louvers or moving canopies. They make it more convenient and enable you to control light and shade; however, it is the most costly variant.

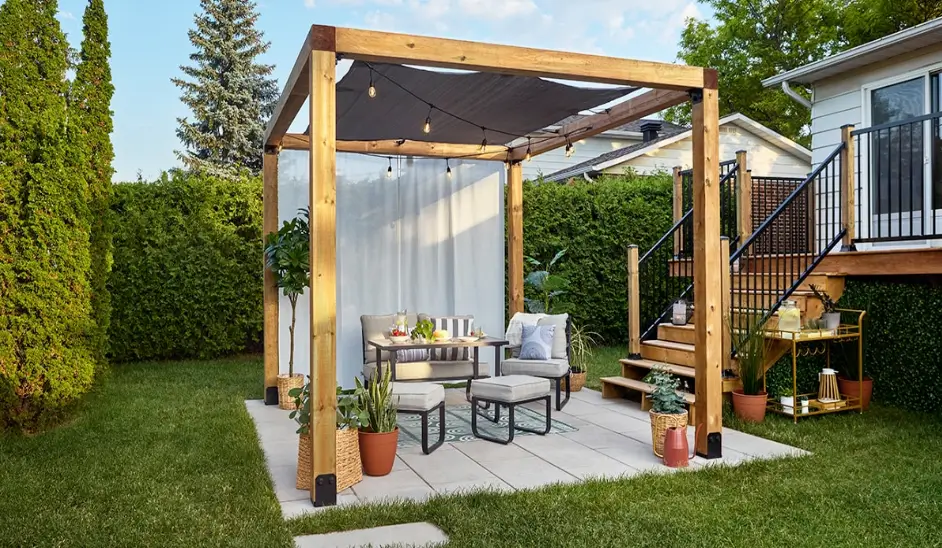

Planning and Design

Always start with designing a simple pergola design DIY before construction. Good design makes the building safe, functional, and fit for the homeowner.

• Location and Use Case: Find the right place. Construct a pergola on level and solid ground. Choose something that will work according to usage. An outdoor living space, such as a pergola adjacent to the house, can be added to a sitting or dining area. Locating one in the middle of a garden can make a peaceful relaxation point.
• Size and Layout: The size of pergolas varies, but you can pick one that is appropriate to your area. Backyard Pergola plans for beginners are usually 6 x 8 ft; it may be larger or smaller depending on the plan. One with a larger yard might consider a broad, open pergola to entertain, and the other with a small garden may require a scaled-down pergola.
• Local Rules and Permits: There are certain building regulations in certain areas. Higher pergolas, which are fixed to a building (and pergolas that are constructed at the front of a site) over 2.5 m, might require planning consent. To prevent later changes as a result of fines or the desire to make changes, always check local codes before building.
• Design Elements: The pergola style must also be in line with the home and the outdoors. A fixed slat design is available, a canopy to provide flexible shade, or more contemporary louvered panels that can be closed and opened. There are the overall styles of rustic wood, which can merge with a garden environment, and more sleek when it is made of aluminum or vinyl, which can be used to provide a modern touch.

Know Materials and Cost Estimation

To construct your pergola, you should have the appropriate available materials, equipment, and a budget that suits your ideas. Plan so that you do not incur expensive errors by thinking about this before you begin.

Materials Checklist

Solid pieces create strength and balance to a pergola. The key sections are:

• Posts: Masses of vertical support bearing the building.
• Beams: Horizontal members, which tie the posts together and support the upper structure.
• Cross-beams or Rafters: Smaller horizontal planks that are laid across the beams as the lattice or the roof with patterns.
• Fasteners and Screws: Quality that galvanized screws and brackets are used to join the pieces together.
• Concrete and Gravel: This can be applied to ensure the setting of posts into the ground to stabilize the pergola
• Sealant or Stain: This will prevent moisture and infectious damage to the wooden pergolas, as well as exposure to the sun.
• Optional Additions: Fancy brackets, post foundation, or a deciduous cover.

Tool List

When doing work on your house, you must have the correct devices. An ordinary list would be the following:

• Tape Measure and Level: Keep your project straight and square. Get precise lengths with its tap.
• Impact Driver or Drill: These bolts and screws are fast.
• Circular Saw: It is for cutting beams and rafters to the correct length.
• Post-Hole Digger or Auger: In construction, on soil, dig holes for posts.
• Hammer or Mallet: Fit and fasten small parts.
• Safety Gear: Safety glasses, hearing protection, and gloves are your protection.

Buying vs Building

Starting a greenfield means you can have complete control over size, shape, and materials, and it can be cost-effective. There is the disadvantage that it is more time-consuming, laborious, and requires skills for simple buildings.

They are ready-made in kits or prefabricated and easily assembled with similar pieces. They most often have warranties, are more expensive, and less customizable.

How to Build a Pergola Step By Step

Pergola building can seem like a huge undertaking, but breaking it down into manageable steps helps to make it more manageable and less intimidating. Each step is critical to ensure that the structure is secure, stable, and lasts long.

i. Layout & Foundation

Prepare the site. Before going any further, a good way to begin is through a good layout pergola:

• Measure out the space using stakes and string, and make it a rectangle or a square.
• Measure corner to corner. When the dimensions are equal, the layout is square.
• Another method to use to ensure corners are right angles would be the 3-4-5 triangle rule.

In case of pergolas that are attached:

• Fix the side attached to the house, using heavy-duty fixtures like lag bolts or brackets.
• When anchoring to a brick, stone, or concrete, drill it using a masonry bit.
• Make sure that alignment is checked and then proceed to eliminate future issues.

ii. Footings & Post Installation

Posts support a pergola, and therefore, they should be put in place carefully.

When the pergola is on its soil:

• Dig holes deep enough and about 30 inches deep in front of each post.
• To make each hole drain, place some gravel on the bottom of it.
• Put the posts in the holes and pour some concrete around the posts.
• Have the posts straight with temporary supports until the concrete is dry.
• Use the level to ensure that the posts remain straight.

When the pergola is located on a patio or a concrete pad:

• Fasten post bases to the surface rather than holes.
• Put holes using a hammer drill and fasten the bases using the eye anchors
• Insert the posts into the bases and bolt them down.

iii. Frame & Beams

The initial phase will be to fix the beams on the top edges of the posts. Usually, these beams are put on both sides of the post to increase strength. They are fastened by heavy-duty bolts or screws, and braces or clamps are applied to keep everything still when installing.

This is followed by beams, which are anchored, after which crossbeams or rafters are set on top. These improvements make the roof look like an open lattice. The rafter should be spaced in an even and powerful manner. Spacing can be anywhere between 12 and 16 inches apart, but this can change according to what design is wanted and how much shade is needed. A strong screw angle can be used along with special metal brackets to attach the rafters, or there can also be metal brackets that can be used to connect the rafters, which are meant for the process of constructing the pergola.

iv. Final Adjustments & Safety Checks

There are some additional steps you need to take before putting your pergola to use:

• Ensure that all the posts are plumb (upright) all the time.

• Inspect that the beams and rafters are level and in line.

• Screw all the screws and bolt them to the extent that the structure should not feel loose.

Concrete usually requires a few days to eventually harden to a state where they are safely used, in the range of 24-48 hours, although a week might be necessary to completely cure. When this is going on, do not place any weight upon the structure or install any heavy items like swings or canopies.

Appearance is equally important as safety. Screws and bolts must be ensured to be firmly tightened, and rough edges and splinters should be smoothed using sandpaper. After all is safe and the concrete has set, the pergola can be used.

Finishing Touches and Styling

Once the primary framework of the pergola is completed, the finishing and styling come next.

Finishes & Protection

Pergolas made of wood require some weather conditions to be weather-proof and gorgeous:

• Sealant or Stain: To ensure protection against sun, rain, and insects, seal the wood with high-quality outdoor stain or sealant. This also enhances the natural color and grain of the wood.
• Paint: Painting a more ornamental style can give it a personality, as well as match the pergola with the style of the house.
• Aluminum or Vinyl Pergolas: They are low-maintenance. They simply require a bath in soap and water occasionally to bring them to such a state of freshness.

Decor & Functionality

A pergola may transform an exterior area into a relaxing, homely area. These are a few easy tips to top it off:

• Planters: Encircle the posts with pots or in-built boxes in which to place flowers or greenery.
• Lighting: String lights, lanterns, or solar lamps provide an intimate atmosphere at night.
• Climbing Vines: There are natural plants that make the appearance soft and cool it off.
• Outdoor Curtains or Canopies: These provide privacy and prevent the wind or intense sun rays.
• Heaters or Fire Features: This will allow you to extend your pergola into late evening when it gets colder.
• Furniture: Lounge chairs, a dining table, or a hammock make the space become a real outdoor room.

Plant Integration

A pergola can become a living structure when covered with plants.

• Climbing Roses or Wisteria: They create a natural shade, as well as beauty and fragrance.
• Ivy or Jasmine: They grow fast and provide heavy cover.
• Grapevines: Not only are they decorative, but they will also give you fruit if they are left in place.
• Hanging Baskets: They give an additional fill of color and seasonal diversity.

Common Mistakes to Avoid

Pergola construction is simple, and most beginners can build it; however, there are some general mistakes that one must avoid. Understanding these in advance can save time, money, and frustration.

• Skipping Proper Leveling and Layout: When the land is not square and level before construction, the building may come out to be lopsided. Be sure to measure diagonals, level, and check alignment prior to post and beam installation.
• Using Weak Materials: Too small posts do not accommodate a large pergola. “For safety and durability, use posts of at least 6×6 inches rather than 4×4 inches for wide spans. Heavier timber or metal pergola supports maintain the pergola structure even in old age.
• Ignoring Permit Requirements: Permits are needed in some jurisdictions, and large pergolas may need a permit in jurisdictions that require them to be attached to a house or be more than a given height. Failure to undertake this process can result in a fine or even make the builder dismantle the construction. Rules and regulations vary by the local area so always be sure to investigate.
• Underestimating Tools or Help Needed: Beams and posts of the pergola are heavy and challenging to handle on their own. Placement of them requires at least two people to lift and move them safely. The right equipment—an impact driver, a circular saw, and a level—is essential for safe installation and to avoid delays or errors.

Summary

A DIY pergola construction guide is one of the best improvements in any backyard. It provides shade, comfort, and style at a relatively low price and effort compared to erecting an enclosed building such as a gazebo. A pergola can be built by a novice, yet with proper planning, the right materials, and simple steps, it looks impressive and sturdy.
