How to Install a Drip Irrigation System for Your Garden

Parts of a Drip Irrigation System

One should be familiar with the key components before establishing a system. A drip irrigation system typically consists of the following:

• Water Source: This is the initial location, such as a garden faucet or a hose bib.
• Backflow Preventer: In higher-risk setups, step up to a reduced-pressure backflow device to prevent dirty water from flowing back into the home water supply.
• Filter: A 120-mesh disc filter for drip emitters helps prevent clogs from sediment and calcium buildup.
• Pressure Regulator: Reduces the pressure of water in the system, preventing it from bursting or leaking.
• Main Tubing: This is the large hose that transfers water from the faucet to various areas of the garden.
• Drip Lines or Small Tubes: Smaller water lines, which are offshoots of the major construction, and carry water nearer to the plants.
• Emitters or Drippers: These are small holes that slowly spray water to the base of the plant.
• End Caps or Flush Valves: These are used to close the ends of the lines and facilitate cleaning of the lines in the future.

Plan the System Before Buying Parts

Proper planning also simplifies the process of installing the irrigation system and ensures that every plant receives enough water.

1. Sketch the Garden: The first stage is that of drawing a basic map of the garden. Included all the plants, beds, hedges, and containers.
2. Group Plants by Water Need: Separate the plants that require an equal amount of water. For example, plants like vegetables tend to require more water than plants like cacti or succulents. This classification helps create watering areas that meet the plants' requirements.
3. Map Tubing Routes: Plan the primary tubing route of the water source to each area. Keep bending to maintain water flowing.
4. Emitter spacing matters, too. In sandy soil, place the emitters close together because water flows rapidly. In clay soil, they should be spaced farther apart due to the clay's tendency to retain water.

Tools and Materials Needed

Here is what a gardener needs to install a drip irrigation system:

Tools

• Scissors or a tubing cutter
• Hole punch tool
• Tape measure
• Stakes or clips to hold tubing in place
• Shovel or trowel for light digging

Materials

• ½-inch main tubing
• ¼-inch distribution tubing
• Emitters or drippers
• Connectors, tees, and elbows
• Backflow preventer, filter, and pressure regulator
• End caps or flush valves
• Optional timer or controller for automatic watering

Drip Irrigation Installation Guide

Follow these steps in order. Work calmly and check each part as it goes in.

1. Connect to the Water Source: Use the backflow preventer, filter, and pressure regulator for drip lines to keep flow even across zones.. These sections retain clean water, prevent clogging, and maintain constant pressure.

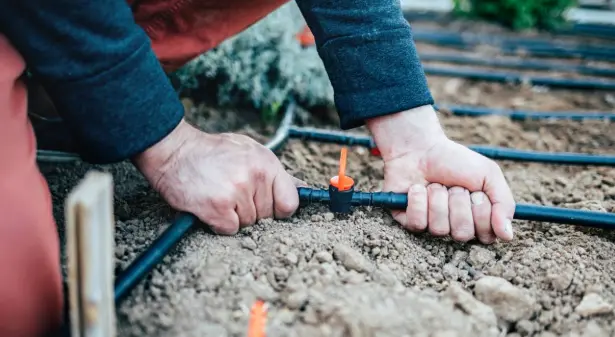

2. Installation of the Primary Tubing: Unravel the 1/2 inch hose and lay it back to the source of water to the first garden bed. Lay it on the ground on posts. Bend it not sharply, or twist it.
3. Add branch lines: Attach connectors or tees to the 1/4-inch hose, which extends closer to the plants. These reduced-length lines can access pots or plant clusters.
4. Install Emitters: Use a hole punch to punch holes in the hose. Insert an emitter on every hole and position it close to the bottom of any plant, 2-4 inches above the stem. Depending on the size and water requirements, some plants would require more than a single emitter.
5. Seal the Ends and Flush the Lines: Add a minute of water, and then seal with water to wash dirt out. So, seal up every line with a cap or end valve. Add automatic flush valves to drip headers to keep lines self-cleaning and free of sediment buildup.
6. Test the System: Switch on the water and ensure that the emitters are all dripping at an equal rate. Ensure that drippers are free to flow or do not dry up. Move them if needed.
7. Cover or Bury the Tubing: After testing, add mulch to protect drip lines and reduce evaporation.

Maintenance and Care

A drip irrigation system requires little maintenance, though it must be monitored frequently.

• Check for Leaks: The garden should be inspected every week to determine whether the fittings are loose or have broken-off tubing.
• Clean Filters and Emitters: In case an emitter is clogged, clean it and rinse it out. Washing the filter every few weeks helps prevent clogs. Most systems need 120–200-mesh filtration.
• Flush the System: Periodically open the end caps and allow water to pour through the end caps and purify the system. Plan regular line flushing and checks, and follow UA’s guide to seasonal flushing and tune-ups for drip systems.
• Winter Preparation: Turn off. In cold weather, removable parts of the system must be kept indoors to prevent freezing.
• Adjust to Growth: Modify emitters as plants grow or the garden layout changes.

Use soil moisture meters to make precise watering decisions and adjust runtimes seasonally.

When to Hire a Drip Irrigation System Professional

When you are struggling to install or maintain the system, you need to hire a professional. A drip irrigation professional will be able to create and install a system that is the same size and shape as your garden.

It’s a good idea to hire help when:

• The garden is large or complex, with many zones or plant types.
• There is uneven terrain that affects water pressure or flow.
• The system needs to be connected to the main water supply or requires trenching.
• The gardener is unsure about plumbing or backflow prevention.
• Existing sprinkler systems need to be integrated or replaced.

Factors to Consider Before Hiring

There are some considerations before calling a professional. These reasons will help you decide whether to hire someone.

1. Project Size and Scope: In case you have a small garden bed, a pro may not be necessary. But you are likely to have one with a large landscape, trees, hedges, and a multitude of planters. A professional design is more advantageous for bigger projects.
2. Water Pressure and Quality: If the pressure is excessively high or low, or the water contains excessive dirt or minerals, a professional can select the appropriate pressure regulator, filter, or pump. This prevents leaking or clogging of the system.
3. Budget and Long-term Expenses: Working alone could prove cheaper in the short term, but errors can accumulate. The economic benefits of professional design include long-term savings from fewer repairs, a healthier plant, and less water use.
4. Automation Preferred: Timer, intelligent controllers, rain sensors, soil sensors, and flow meters all help make watering more precise. A professional will select the appropriate technology to use in your garden and also install it correctly. If you’re juggling beds, consider hose timers for multi-zone watering to automate schedules.
5. Local Ordinances and Backflow Regulations: There may be local codes and backflow regulations, such as a local requirement of a backflow device or inspection. A licensed installer is familiar with regulations and is able to provide you with the right documentation.
6. Service: Many professionals offer seasonal checks, filter replacements, winter preparations, and service calls. If you are not interested in supporting the system personally, a service plan is a good option.
7. Warranty and Responsibility: A warranty is typically given by professional installers. In case of issues, they revert and rectify the issues. This brings you relaxation, particularly with complicated systems.

Are you willing to improve your garden's watering system but would like professional support? It can be more reliable, easier, and faster to find a professional drip irrigation expert in your area. A professional installer can create a system that suits your garden's shape, soil type, and plant needs.

The Bottom Line

A simple and effective system for irrigating a garden is drip irrigation. It places water at the roots of the plants, thereby minimizing waste and maintaining uniform soil moisture. They can be easily established and maintained, with a basic plan, several tools, and frequent inspections; anyone can have a drip irrigation system running. Hiring a professional may be a good idea if you have a large or complex garden.
