How to Install a Sprinkler System for a Lush Lawn

1. Planning and Preparation

A successful installation of sprinklers is a matter of good planning.

Check Local Rules

Before starting, it is essential to be aware of local rules and permits. A backflow preventer is typically required in most areas to prevent contaminated water from flowing back into the home's water supply. These towns require a permit or inspection before use.

Measure Water Pressure and Flow

The system is based on the water pressure (PSI) and flow rate (GPM) of the home. PSi may be measured using a simple pressure gauge on the outside faucet. To check the flow rate, use a 5-gallon bucket, fill it, and note the time it takes to complete. These two figures assist in determining the number of sprinkler heads per zone and the diameter of the pipe to use.

Make a Yard Drawing

Take a basic sketch of the yard, including the lawn, flower beds, paths, trees, and slopes. Indicate the location of the source of water and location of the control box. This will be used in the layout process and will prevent future errors.

2. Designing the System

A proper layout will ensure that all areas of the lawn receive the appropriate amount of water.

• Even Watering: The sprinkler heads must spray water at a distance enough to cover the next sprinkler. Aim for head-to-head coverage; choose sprinklers for even lawn coverage to match throw distance and pattern.
• Group by Type and Area: Various sprinklers discharge water differently. Rotors suit a large open lawn, whereas spray heads are suitable for small or narrow areas. Put beds on a separate zone using a 1-inch inline drip zone valve kit with filter & regulator for correct pressure.
• Plan Zones: The yard is divided into areas based on sunlight, slope, and plant type. As an example, sunny grass lawns might require more water than shaded ones. Zoning prevents water wastage and keeps plants healthy.

3. Gathering Materials and Tools

The correct parts and tools will save time and labor when installing a DIY sprinkler setup.

Materials Needed

• Backflow preventer
• Shutoff and zone valves
• Valve box or manifold
• Controller/timer and low-voltage wires
• PVC or poly pipes and fittings
• Sprinkler heads with matching nozzles
• Primer, cement, clamps, and Teflon tape
• Drip irrigation kit for flower beds

Useful Tools

A shovel or trenching tool, a pipe cutter, a wire stripper, a multimeter, and flags or paint to mark lines will be required by the homeowner.

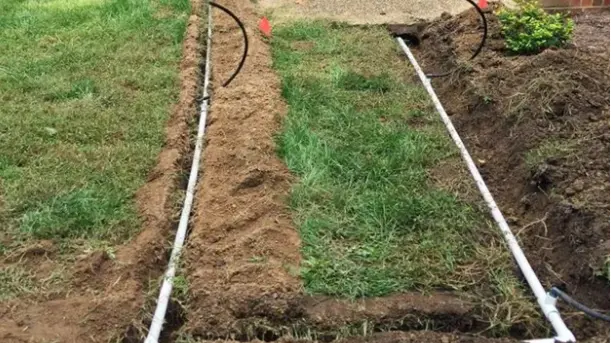

4. Marking and Digging Trenches

This should be done by calling the local utility marking service before digging to check the cables or gas lines. Mark the position of the pipes and sprinkler heads using flags or spray paint. The depth of the trenches must range between 6 to 12 inches depending on the local regulations and the level of frost. Keep the trenches level and straight so that laying of pipes will be easier.

5. Connecting to the Water Supply

The sprinkler system may be linked to the primary water line or an external tap. It is easier to maintain the sprinkler system in the future by simply adding a shutoff valve.

• Backflow Preventer: Install a backflow preventer as most areas require a reduced-pressure backflow preventer for residential sprinklers to protect household water.
• Valve Manifold: A valve manifold is used to regulate the flow of water to every zone. It is inside a plastic value box, thus easy to access. Name each valve (i.e., Front Yard or Back Lawn) so that it is easy to program.

6. Laying the Pipes

The primary line will be between the backflow preventer and the valve box. The lines run toward the sprinkler heads. Dry-fit before attaching all parts to ensure that they fit together. Apply PVC primer and cement with PVC pipes, or apply compression fittings with poly pipes. The main line of most houses is 1 inch for the main line and ¾-inch for piping. The size maintains the water pressure constant. During long runs, consider using water hammer arrestors to prevent irrigation damage and protect pipes and fittings.

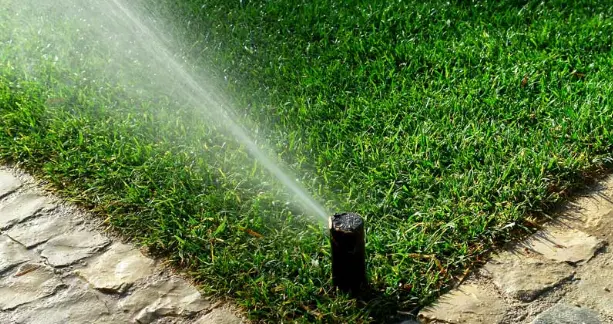

7. Installing the Sprinkler Heads

The sprinkler heads are supposed to be at the same level as the ground. When it is too high, the mower can hit it and when it is too low, the water can form a puddle around it. Select nozzles that are suitable for the shape and size of the area. Strip nozzles are used on small paths whereas rotors are used in big lawns. Adjust the spray jets to ensure that water falls only on the grass, not on the sidewalks or fences.

8. Wiring and Controller Setup

The availability of the correct parts and tools will save time and effort in installation. For small setups without a full controller, use best hose timers for simple zones.

• Wiring the Valves: Run a low-voltage wire from the controller to every solenoid valve. A single wire will be connected to all of the valves, and each zone will have its own colored wire. Install waterproof connectors and keep excess wire in the box to repair it easily in the future.
• Mounting the Controller: Consider WaterSense-labeled smart irrigation controllers that adjust watering to plant needs and reduce overwatering. Label each zone clearly. Recent models of controllers are intelligent and can be connected to Wi-Fi and automatically change watering depending on weather variations.

9. Flushing, Testing, and Backfilling

Turn on the water before attaching the sprinkler nozzles to flush dirt and debris from the pipes.

Then attach the nozzles and start testing each zone. Inspect for leaks, plugged heads or uneven spray. Adjust the arcs and pressure until the lawn grows evenly. Once everything is going well, fill the trenches back in and compact the soil to keep the pipes in position.

10. Setting the Watering Schedule

Different areas require various times of watering. The rotor zone requires approximately 20-30 minutes and the spray zone requires only 10-15 minutes. For efficiency and healthier turf, schedule early-morning lawn watering (4–8 a.m.) when evaporation and wind are lowest. Use one of the best rain gauges to fine-tune your watering schedule and verify real rainfall before you irrigate.

Watering time should be kept down in colder seasons. This is easily done with some controllers because they have a seasonal adjustment setting. By incorporating a rain sensor or smart controller, it is possible to save even more water by withholding watering after rainfall.

DIY vs Hire a Sprinkler System Professional

Although installing a sprinkler system can be a rewarding DIY project, there are times when hiring a professional is the best decision. People should consider bringing in a certified irrigation contractor when:

• Lawn is Large or Complex: If your yard has multiple zones, uneven terrain, or diverse vegetation, a professional can design a more efficient system.
• Need Specialized Components: For advanced setups with smart controllers, drip systems, or pressure-regulated valves, expertise ensures proper configuration.
• Lack of Time or Tools: Professionals complete installation faster and with minimal disruption to your landscape.
• Want Long-Term Reliability: Licensed installers can handle permits, ensure compliance with local codes, and guarantee workmanship.

Steps to Hire a Professional

Hiring the right professional involves more than finding the lowest quote. Follow these steps for a smooth process:

• Research Local Experts: Look for certified irrigation specialists through trusted directories or landscaping networks.
• Check Credentials: Ensure they hold licenses and insurance, and verify their experience with residential sprinkler systems.
• Request Estimates: Obtain multiple quotes that include materials, labor, warranty, and timeline.
• Ask for References: Contact past clients or review testimonials to assess reliability and customer satisfaction.
• Review the Contract: Confirm all details—scope of work, warranty period, payment schedule, and post-installation support—are clearly outlined.

If you’re unsure where to begin, find trusted irrigation professionals nearby. These experts can handle lawn care, sprinkler system design, and installation processes easily.

The Bottom Line

A sprinkler system is not as difficult to install as it may seem. With the help of proper planning, selecting the right materials, and following all the steps outlined in the lawn irrigation guide, anyone can construct a DIY sprinkler setup that ensures the lawn remains green and healthy.

Once watering is done, a slow-release organic lawn fertilizer after irrigation installation helps push steady, healthy growth. It also makes the yard look beautiful with less effort- leaving more time to enjoy your yard.
