How to Set Up a Rainwater Harvesting System at Home

Plan Before You Buy a Rainwater Harvesting System

Proper planning prevents tomorrow's headaches. It is important to note the following before purchasing parts for a homeowner.

1. Know the Water Need: Guess the amount of water used weekly in the garden and the lawn when it is dry. A little vegetable garden consumes a lot less than a large lawn. The ballpark number is used to select the tank size.
2. Check the Roof: Measure the dripping area of the roof into the intended downspout. The larger the roof, the larger the amount of water that you can collect. Look at the roof material too. The majority of ordinary roofs are suitable with non-drinking water.
3. Check Local Rainfall Pattern: The size of the tank is determined by the frequency of rain. You should have a larger tank in regions with small but heavy storms so that you can capture large bursts. Use the best rain gauges to track local rainfall patterns so your tank size matches reality.
4. Select a Storage Position: Choose a flat, solid spot next to the downspout. Ensure you can access and clean. It is advisable to keep the tank there out of the harsh direct sunlight.
5. Think About Gravity vs Pump: A small pump may be required in case of sprinklers or uphill watering. Consider submersible water pumps for low-pressure garden hoses when you need steady flow.
6. Plan Overflow and Drainage: What will become of the excess water in case of heavy rain? Arrange the overflow pipe, which will pour water into a garden bed, a rain garden, or a distant drain that is not near foundations.
7. Check Basic: There are rules of rainwater systems, mosquitoes, or backflow in some areas. The rules are often very easy to follow when used in a garden, although it is prudent to consult.

Set Up a Rainwater Harvesting System

The steps below describe a basic above-ground tank or barrel system that feeds a hose or drip lines for garden beds and lawns.

1) Prepare the Site

Scrape the soil on the side of the selected downspout. Lay concrete blocks or a compacted paved or gravel surface. The foundation should be solid, as the weight of water is great. A one-thousand-liter tank weighs approximately one metric ton when full.

2) Clean the Roof and Gutters

Eliminate debris and leaves from gutters and downspouts. These are the best gutter cleaning tools for safe roof maintenance making the job quicker and safer.

3) Fit the Diverter and Inlet Screen

Install a diverter attached to a downspout that sends the water to the tank. Install an inlet fine mesh screen to exclude insects and debris from the tank. If you have a first-flush device, you can mount it vertically on the wall and position the drain so it empties during every downpour.

4) Set the Tank and Connect Fittings

Set the tank on the base. Install a spigot or a ball valve on the bottom outlet. Apply the threading tape on the fittings to prevent leakages. Connect the tank with the inlet hose of the diverter. Cover the tank with a close-fitting lid to keep pests and light out.

5) Add the Overflow Path

Fit in an overflow outlet at or close to the top of the tank. Connect an overflow pipe to a rain garden, soakaway, or a safe drain. The overflow should not flow close to the foundation of the house.

6) Set up Distribution

When you are just interested in a simple use, a hose connected to the tank may be sufficient. To be able to control, a line should be run to a small manifold with drip zones or soaker hose feeding valves onto it. These drip irrigation systems for rainwater tanks minimize loss and target roots.

7) Test with Controlled Water

You have to test the system by running water from the hose into the gutter or the diverter before the first storm. Look after leaks, keep the inlet screen in place, and ensure that the overflow moves water away as it should.

Use Rainwater in the Garden and on the Lawn

Rainwater is perfect for plants because it is soft and free from chlorine and salts found in tap water. Homeowners can use it to:

• Water lawns and flower beds.
• Irrigate vegetable gardens.
• Clean garden tools, patios, and walkways.
• Refill birdbaths or small ponds.

For water-saving irrigation, drip irrigation systems can be connected directly to the tank. They deliver water slowly to plant roots, preventing waste through evaporation. Pair drip with soil moisture meters to prevent overwatering and stretch every gallon.

Rainwater Harvesting System Maintenance Tips

A home rainwater system has a longer lifespan in the case of a light routine and regular maintenance.

• Look after one month of rain. Clean the inlet screens. Look for leaks. Make sure the lid is sealed.
• Clean gutters when needed. Eliminate leaves following seasons of wind or litterfall.
• Inspected the tank after every few months. Examine clear areas of check. Opaque tanks are not so much affected.
• Prevention of mosquitoes through screening of all the openings. Fix any gaps. Mosquito dunks for rain barrels should be used in case of necessity.
• Clean the pump strainers. Do whatever the maker says.
• Clean it thoroughly after a year, in case sediment has deposited. Drain the tank to the bottom. Rinse the bottom. Flush the outlet line.
• Check for blocked screens, curved hoses, closed valves, or weak valves.

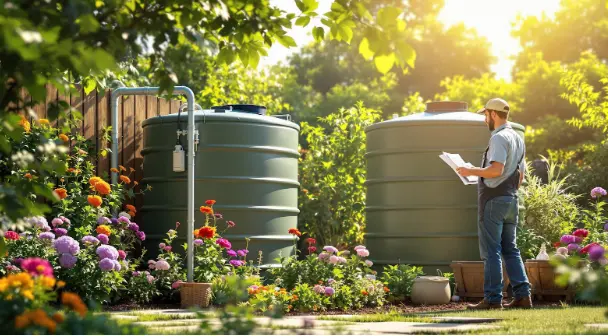

DIY vs Hiring a Rainwater Harvesting Professional

Many homeowners consider building a rainwater harvesting system on their own to save money. However, many technical details and safety concerns can easily turn a small mistake into a costly problem. Hiring a professional installer ensures the system works efficiently, safely, and lasts for many years.

1. Design Accuracy and Efficiency

When undertaking a DIY project, most people use simple online tutorials or videos to learn how to size tanks and gutters. This may result in improper sizing, such as a tank that is too small to hold adequate water or too big to fill adequately.

2. Water Quality and Safety

DIY systems usually lack good filtration and first-flush systems. Consequently, the tank will be polluted with dirty water containing leaves, bird droppings, or roof dust. It has filters, mesh screens, and diverters to maintain clean water to the gardens or lawns.

3. Leakage and Structural Problem.

Unidirected gutters, loose joints, and weak tank bases are typical issues in self-assembled systems. This is due to the small mistakes that could have led to leaks, flooding, or even a collapse of the tank in case the building is not stable.

4. Legal and Safety Compliance

There are certain regulations and licenses to collect and store rainwater in specific regions. Home experts are conversant with building codes, backflow prevention, and local water-use regulations.

5. Long-term Maintenance, Effort, and Time.

Installing a custom system takes time and requires knowledge. From cutting the pipes to closing the tanks, the tiniest mistakes can cause major disappointments. Practitioners install within a short time and offer maintenance services.

How to Hire a Professional

Most homeowners prefer to do it on their own, but hiring a professional installer can make it easier and more reliable. This is the way to locate and recruit the appropriate individual.

• Research Local Service Providers: The first step would be to research rainwater harvesting experts in your location online. Review, consult neighbors, or the local environmental groups.
• Check Qualifications and Experience: The professional should have experience dealing with homes such as yours. Request to look at the photos of previous projects or request references.
• Get Multiple Quotes: There should be at least two or three cost estimates. Not only the price, but also the materials, design quality, and after-installation service of the product are compared.
• Ask About Local Rules and Permits: Rainwater harvesting regulations vary by locality. The pro is supposed to be aware of whether a permit is necessary and whether the use of collected water is subject to any legal constraints.
• Discuss Design and Maintenance Schemes: An expert contractor will prepare the system depending on the size of your roof, your garden requirements, and precipitation. They are also supposed to provide services for maintenance or to show you how to maintain it yourself.
• Secure Warranty and Safety: Select a person who offers guarantees on tanks, pumps, and fittings. Enquire about security amenities like overflow protection and mosquito control.

The Bottom Line

One of the easiest ways homeowners can save water, reduce bills, and help preserve the planet is by collecting rainwater. To start with, consider the roof size, the rainfall in the area, and the amount of water you need to store. Also build healthy soil with how to start a compost pile at home to make every drop go further. Professional hiring ensures that the system is properly designed, constructed to be durable, and built according to the rules of the area.
