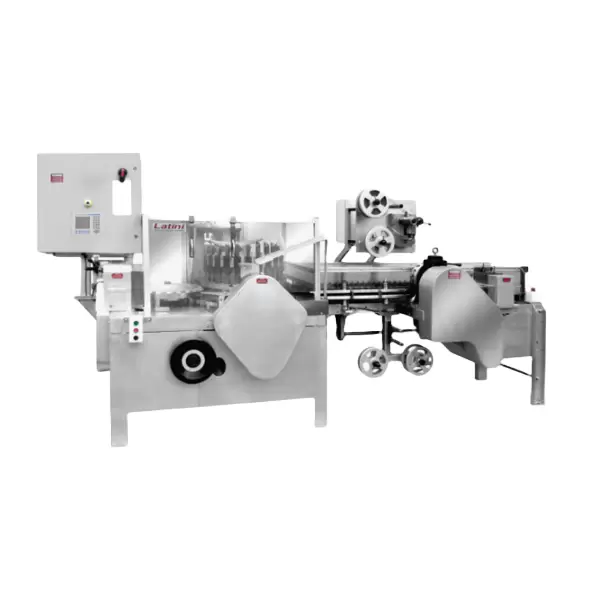

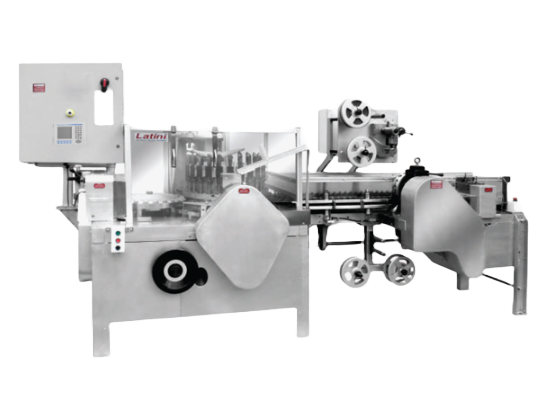

CONTINUOUS DIE POP FORMING AND PACKING MACHINE HLM - 2000

700 AND MORE FINISHED POPS PER MINUTE

In one continuous rotary operation, the Latini Continuous Die Pop Forming and Wrapping Machine feeds, sizes, cuts, forms, inserts sticks, and crimp-wraps lollipops.

ADJUSTABLE WEIGHT CONTROL
The forming machine is equipped with three convenient features for varying the weight of the lollipops without changing the forming dies. Each set of forming dies has a weight adjustment factor of approximately 15% from either the upper or lower limit.

AUTOMATIC WRAPPING
Lollipops are formed and wrapped, all at the same rate of speed at which they are produced. The Wrapping is accomplished by passing lollipops through two sheets of cellophane or paper-coated poly film. A pair of heat sealing rollers then crimp-seals on four sides under Controlled heat and pressure.

WEIGHTS AND SHAPES
The Latini Forming Machine has a wide range of weights and shapes from 5 grams to 20 grams.

SHAPES: Flat round, oval., rectangular, square, polygon, ball, and sphere-related shapes, in addition to custom engraving.
Many sizes and shapes are available to choose from. Drawings featuring various shape lollipops furnished on request.

OPTIONAL FEATURES:

• SINGLE POPS OR STRIPS
  It is possible to form and wrap lollipops in individual packages or in a continuous strip of any desired length, from 2 to 99 pieces per strip. If multiple lengths of lollipops are required, a counting unit can be provided.
• PHOTO EYE REGISTRATION
  Photo paper registration equipment can be attached for registering package designs or words in the center of a wrapped lollipop.
• PRINTING AND ICING DEVICE
  The top lollipop surface is printed with an edible ink or sugar icing to highlight a figure, design, or letters with a color different than that of the actual lollipop giving a "two-color" effect. The ink or icing is applied in a continuous motion before the wrapper is heat sealed. Various designs are available to suit customer requirements.
• LABELER
  A self adhesive label can be applied directly on the lollipop wrapper and positioned in the center when continuous reel type pre-printed labels are used.
