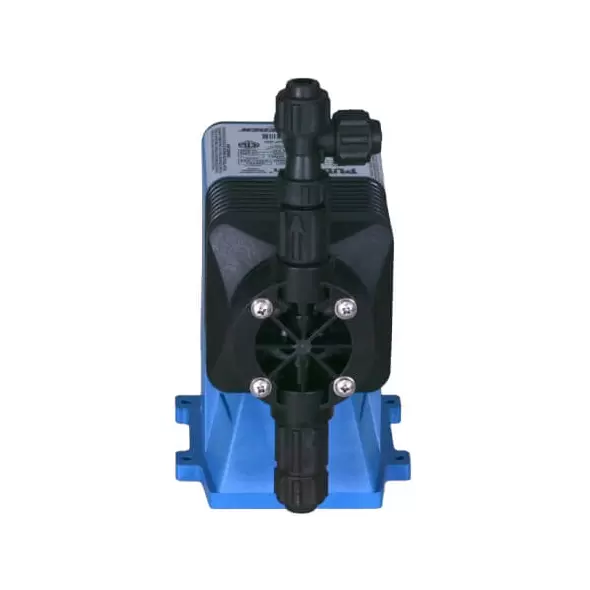

Pulsafeeder LB02SA-KTC1-130 Series A Plus - Electronic Metering Pumps

The PULSAtron Series A PLUS by Pulsafeeder is designed for precision metering and chemical dosing across various industrial and water treatment applications. Featuring manual controls for stroke length and stroke rate, along with options for external pacing and stopping, this pump delivers reliable performance and flexibility. With a high turndown ratio up to 2000:1, pressures up to 250 PSI, and flow rates reaching 58 GPD, the Series A PLUS ensures efficient, reproducible dosing with +/- 3% accuracy, making it ideal for demanding environments.

Key Features and Specifications

Control Options:

• Manual Control: Equipped with onboard adjustable knobs for precise stroke rate and length control.
• External Control Options: Supports optional external pacing and stop features for automated control.
• High Turndown Ratio: Available with a 100:1 or up to 2000:1 turndown ratio for adaptable dosing control.
• Consistent Metering: Provides accuracy within +/- 3% of maximum capacity for reliable dosing.

Durability and Safety:

• Thermal Overload Protection: Auto-reset thermal overload feature protects the solenoid, ensuring longevity.
• Water-Resistant Construction: Suitable for both indoor and outdoor installations.
• Noise Dampening: Internally dampened for quiet operation, enhancing workplace comfort.
• Leak-Free Priming: Standard leak-free bleed valve assembly allows safe and simple priming.

Materials and Options:

• Pump Head Materials: Available in GFPPL, PVC, PVDF, and 316 Stainless Steel.
• Fittings: Options include GFPPL, PVC, and PVDF.
• Bleed Valve: Made with the same materials as the fittings, except 316 SS.
• Seat O-Rings and Balls: Available in PTFE, CSPE, Viton for O-rings and Ceramic, PTFE, 316 SS, Alloy C for balls.
• Diaphragms: PTFE-faced, CSPE-backed.
• Tubing Options: Clear PVC, White PE, and PVDF tubing available.

Power and Electrical Specifications:

• Power Input Options: 115 VAC or 230 VAC, 50/60 Hz, single-phase.
• Power Usage:
  • Peak Power: 130 Watts
  • Average Power at Max SPM: 50 Watts
  • Current Draw: 0.6 Amps (115 VAC) and 0.3 Amps (230 VAC)

Certifications and Approvals

The Series A PLUS is recognized for its quality and meets several industry standards, with certifications including:

• ETL, ETL Sanitation, CE, and NSF 61 Certified (for PVDF material and PVC Degassing Head models).

Applications and Use Cases

The Series A PLUS pump is suitable for a wide range of industrial and treatment applications, including:

• Water Treatment and Conditioning
• Chemical Injection in Industrial Processes
• Wastewater Treatment
• Cooling Tower Maintenance and Boiler Systems
• Food and Beverage Sanitation
• Pharmaceutical Dosing

Benefits and Maintenance

With its dependable, accurate dosing and robust construction, the PULSAtron Series A PLUS is designed for long-term use with minimal maintenance. Wall-mountable and featuring a guided ball check valve system, the pump is easy to install and maintain, while the leak-free bleed valve assembly facilitates safe, straightforward priming.

Recommendation

The Pulsafeeder LB02SA-KTC1-130 Series A PLUS is recommended for professionals needing precise, reproducible chemical dosing with flexible control options. Its durable construction, wide material compatibility, and high turndown ratio make it ideal for both industrial and water treatment settings.
