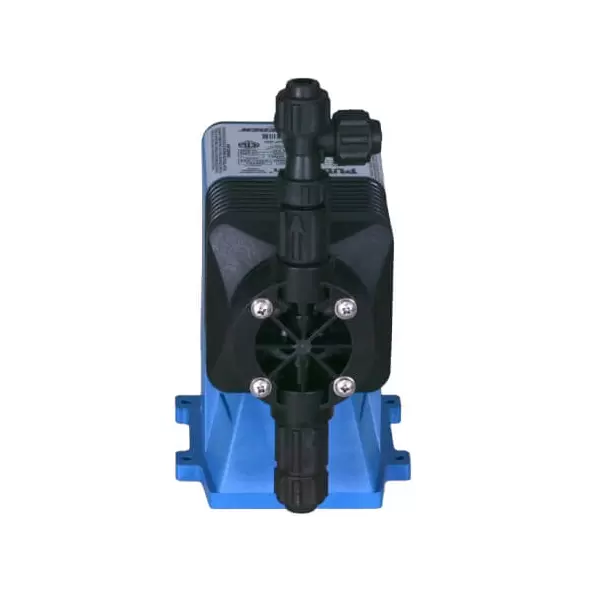

Pulsafeeder LB02SA-PTC1-500 Series A Plus- Electronic Metering Pumps
In stock
0.00

Description

The PULSAtron Series A PLUS LB02SA-PTC1-500 metering pump is a versatile solution for precise chemical dosing across water treatment, industrial processing, and chemical handling applications. This model offers manual control over stroke length and stroke rate, with the added option for external pacing and stopping, making it adaptable for automated systems. With a high turndown ratio of up to 2000:1, pressure capacity reaching 250 PSI, and flow rates up to 58 GPD, this pump ensures consistent dosing accuracy, reproducible to within +/- 3% of maximum capacity.

Key Features and Specifications

Control and Precision:

  • Manual Adjustment: Onboard knobs allow precise control of stroke rate and length for accurate dosing.
  • External Control Option: Supports optional external pacing and stop functions, ideal for automated processes.
  • High Turndown Ratio: Available turndown ratios of 100:1 or up to 2000:1 allow flexibility across dosing applications.
  • Reliable Metering Performance: Provides consistent dosing accuracy within +/- 3% of maximum capacity.

Durable Design:

  • Thermal Overload Protection: Solenoid protection with auto-reset prevents overheating, extending pump life.
  • Weather-Resistant: Suitable for indoor and outdoor use with water-resistant construction.
  • Noise Dampening: Internally dampened to minimize noise during operation.
  • Leak-Free Bleed Valve: Includes a durable, leak-free bleed valve assembly for safe and easy priming.

Material Options:

  • Pump Head Materials: Available in GFPPL, PVC, PVDF, and 316 Stainless Steel.
  • Fittings: Choose from GFPPL, PVC, PVDF for compatibility with various chemicals.
  • Seat O-Rings and Ball Materials: PTFE, CSPE, Viton O-rings; ball options include Ceramic, PTFE, 316 SS, and Alloy C.
  • Diaphragms: PTFE-faced, CSPE-backed for enhanced durability.
  • Tubing: Clear PVC, White PE, and PVDF tubing options available.

Electrical and Power Specifications:

  • Power Input: Available in 115 VAC and 230 VAC, 50/60 Hz, single-phase.
  • Power Usage:
    • Peak Input Power: 130 Watts
    • Average Power at Max SPM: 50 Watts
    • Current Draw: 0.6 Amps at 115 VAC, 0.3 Amps at 230 VAC

Certifications and Approvals

The Series A PLUS pump adheres to stringent safety and quality standards with certifications including:

  • ETL, ETL Sanitation, CE, and NSF 61 Certified (for PVDF material and PVC Degassing Head models).

Applications and Use Cases

The Series A PLUS pump is suitable for industries requiring precise chemical dosing, such as:

  • Water Treatment and Conditioning
  • Industrial Chemical Injection
  • Wastewater Treatment
  • Cooling Tower and Boiler Maintenance
  • Food and Beverage Sanitation
  • Pharmaceutical Dosing

Benefits and Maintenance

This PULSAtron Series A PLUS pump is designed for reliable, long-term performance with minimal maintenance. The wall-mountable design, guided ball check valve system, and limited moving parts simplify setup and upkeep, while the durable bleed valve assembly provides easy and safe priming.

Recommendation

The Pulsafeeder LB02SA-PTC1-500 Series A PLUS is ideal for professionals in water treatment, industrial processing, and chemical handling. Its adaptability, high precision, and durable construction make it suitable for complex dosing applications in demanding environments.
