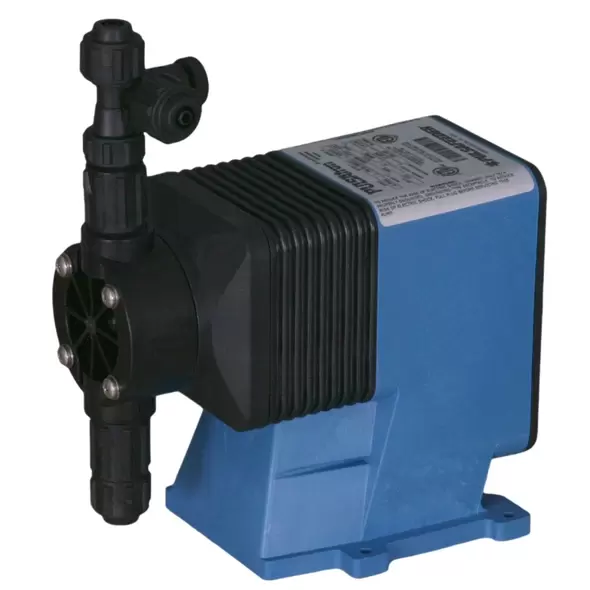

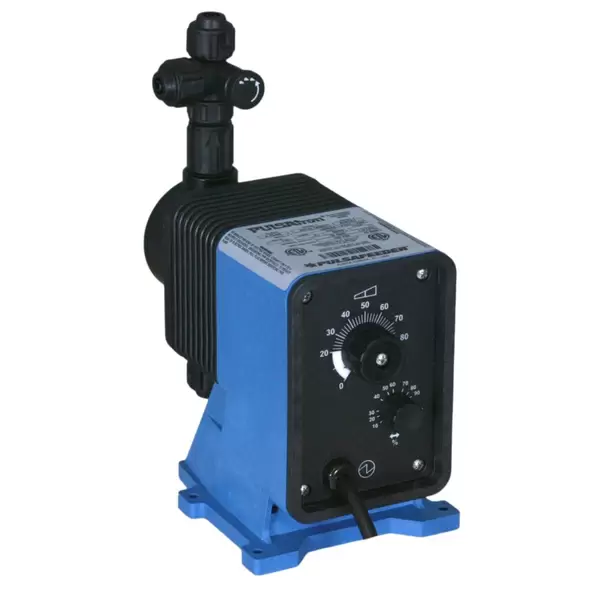

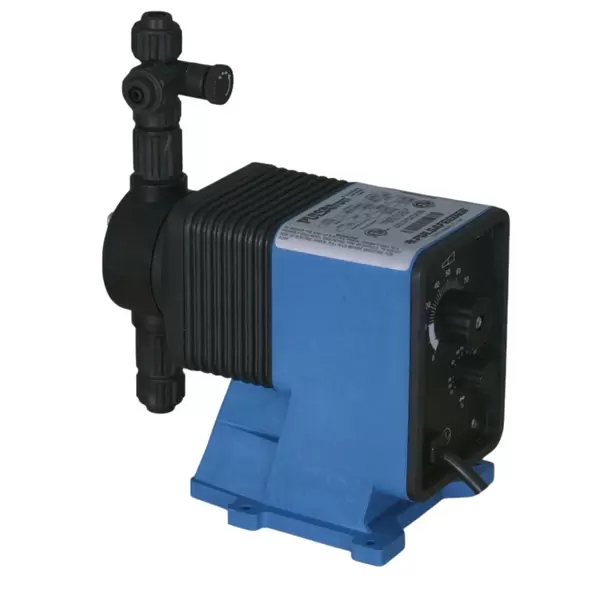

Pulsafeeder LB02S2-VTC1-CZXXX Series A PLUS - Electronic Metering Pumps

The Pulsafeeder LB02S2-VTC1-CZXXX Series A PLUS from Cannon Water Technology is an electronic metering pump designed for precise chemical dosing, adaptable to diverse water treatment needs. Built for durability and reliability, this pump model is a part of the PULSAtron Series A Plus, which provides manual controls and optional external pacing for automatic control. The Series A Plus pump is crafted to deliver exceptional performance, even in demanding environments, ensuring a consistent and reproducible chemical metering experience.

Key Features of the PULSAtron Series A Plus Pump

• Manual Controls: Offers manual adjustments for both stroke length and stroke rate, allowing for precision control.
• Reliable Timing Circuit: Equipped with a high-quality timing circuit that ensures consistent operation.
• Voltage & Current Protection: Circuit protection prevents damage from electrical irregularities.
• Thermal Overload Solenoid Protection: Features auto-reset functionality to prevent overheating.
• Water-Resistant Design: Suitable for both indoor and outdoor applications.
• Noise Reduction: Internally dampened to minimize operational noise.
• Guided Ball Check Valve System: Reduces backflow and enhances priming capabilities for reliable operation.
• Leak-Free Bleed Valve Assembly: Ensures safe, easy priming with a durable valve assembly.

Specifications

• Pump Head Materials: GFPPL, PVC, PVDF, 316 Stainless Steel (SS)
• Fitting Material: GFPPL, PVC, PVDF
• Bleed Valve: Matches the selected fitting and check valve material (except 316SS)
• Turndown Ratio: 100:1 or 2000:1, depending on model
• Seat O-Rings: PTFE, CSPE, Viton
• Valve Balls: Options include Ceramic, PTFE, 316 SS, Alloy C
• Diaphragms: PTFE-faced, backed with CSPE
• Tubing: Clear PVC, White PE, PVDF
• Power Input: Available in 115 VAC - 50/60 HZ -1 phase and 230 VAC - 50/60 HZ -1 phase
• Power Consumption:
  • Peak Input Power: 130 watts
  • Average Input Power at Max Strokes per Minute (SPM): 50 watts
  • Average Current Draw: 0.6 amps (115 VAC) or 0.3 amps (230 VAC)

Performance and Capabilities

• Pressure Range: Models are available with pressure capabilities of up to 250 PSI (17 bar)
• Flow Capacity: Supports flow capacities up to 58 gallons per day (GPD) or 9.1 liters per hour (LPH)
• Reproducibility: Capable of consistent performance within ±3% of maximum capacity

Compliance and Approvals

Backed by over 25 years of development, PULSAtron pumps are highly reliable and approved by:

• ETL, ETL Sanitation, CE, and NSF 61 (for PVDF material and PVC degassing head models)

Applications of Series A Plus Metering Pumps

The Pulsafeeder Series A Plus metering pumps serve a range of industries requiring accurate and consistent chemical dosing, such as:

• Water Treatment and Conditioning
• Wastewater Treatment
• Pharmaceutical Production
• Ware Wash
• Utilities
• Petrochemical
• Oil and Gas
• Pulp and Paper
• Chemical Processing
• Automotive
• Mining
• Well Water Treatment
• Chlorination, Iron Control, and Hydrogen Sulfide Control
• Drinking Water Disinfection

The Pulsafeeder LB02S2-VTC1-CZXXX Series A PLUS is an exceptional metering pump that combines accuracy, ease of use, and durability for professionals across industries, ensuring safe, effective, and reproducible chemical metering for critical processes.
