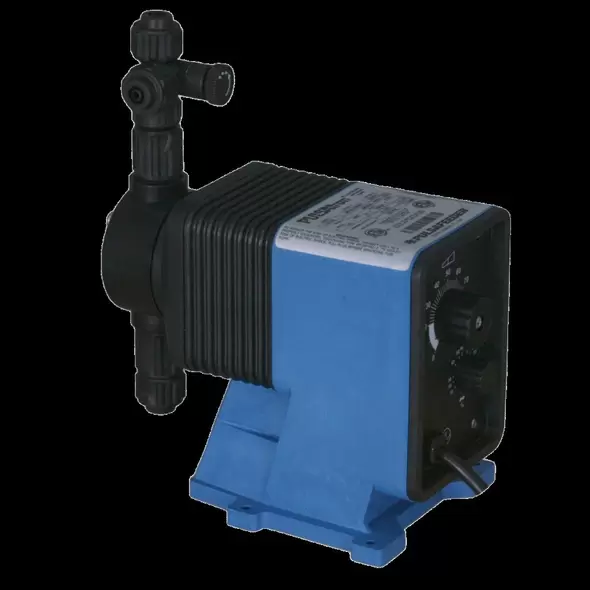

Pulsafeeder LB02S2-VTCJ-CZXXX Series A PLUS - Electronic Metering Pumps

The Pulsafeeder LB02S2-VTCJ-CZXXX Series A PLUS is a robust electronic metering pump designed for precise chemical dosing in water treatment and other industrial applications. As part of the PULSAtron Series A Plus, this pump offers standard manual controls for stroke length and rate, with optional features including external pacing for automatic control, external stop function, and a 2000:1 turndown ratio. With over 25 years of innovation, the Series A Plus has earned multiple agency approvals for quality and reliability.

Key Features

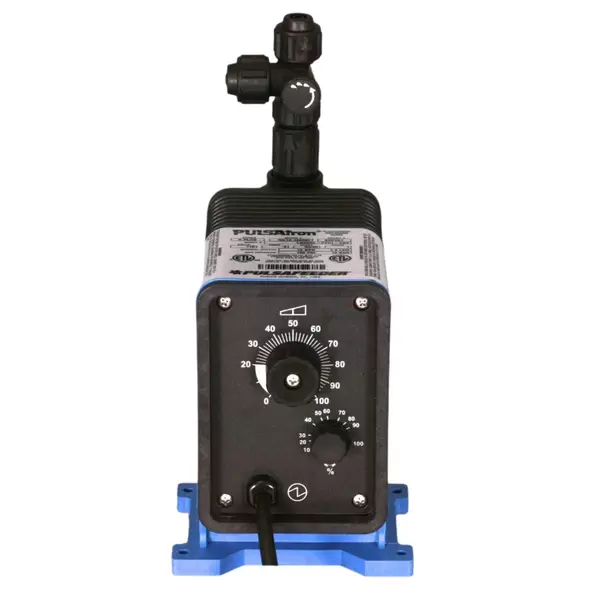

• Manual and Optional Control Options: Adjustable stroke rate and length controls with optional external pacing for automatic dosing.
• Enhanced Durability: Built-in protections for circuit voltage, current upsets, and thermal overload with an automatic reset.
• Noise Dampening: Internally dampened to minimize operational noise for a quieter work environment.
• Backflow and Priming Protection: Guided ball check valve system to minimize backflow and improve priming functionality.
• Leak-Free Bleed Valve Assembly: Ensures safe, easy priming for secure operation in varied applications.
• Compact and Wall Mountable: Designed for easy installation in diverse industrial settings.

Specifications

• Pump Head Materials: GFPPL, PVC, PVDF, 316 SS
• Fitting Material: GFPPL, PVC, PVDF
• Bleed Valve: Material matches fitting and check valve (except 316 SS)
• Turndown Ratio: 100:1 or up to 2000:1 based on model
• Seat O-Rings: PTFE, CSPE, Viton
• Valve Balls: Ceramic, PTFE, 316 SS, Alloy C
• Diaphragms: PTFE-faced, backed with CSPE
• Tubing: Clear PVC, White PE, PVDF
• Power Input: Options of 115 VAC - 50/60 Hz, 1-phase; or 230 VAC - 50/60 Hz, 1-phase
• Power Usage:
  • Peak Input Power: 130 watts
  • Average Input Power at Max SPM: 50 watts
  • Current Draw: 115 VAC at 0.6 amps, 230 VAC at 0.3 amps

Performance

• Pressure Capability: Models offer up to 250 psi (17 bar)
• Flow Capacity: Capable of delivering up to 58 gallons per day (9.1 liters per hour)
• Reproducibility: Consistent metering performance with an accuracy of +/- 3% at maximum capacity

Compliance and Approvals

The PULSAtron Series A Plus has received approvals from:

• ETL, ETL Sanitation, CE, and NSF 61 (for PVDF material and PVC degassing head models)

Applications

This versatile metering pump is ideal for the following industries:

• Water and Wastewater Treatment
• Pharmaceuticals
• Utilities
• Ware Wash
• Chemical Processing
• Automotive
• Mining
• Well Water Treatment
• Pool and Spa Maintenance
• Petrochemical
• Pulp and Paper Processing
• Oil and Gas

The Pulsafeeder LB02S2-VTCJ-CZXXX Series A PLUS is a high-performance solution for industries requiring consistent and precise chemical metering with flexible control options and durable construction.
