Pulsafeeder LB02SA-KTC1-XXX Series A Plus - Electronic Metering Pumps
In stock
0.00

Description

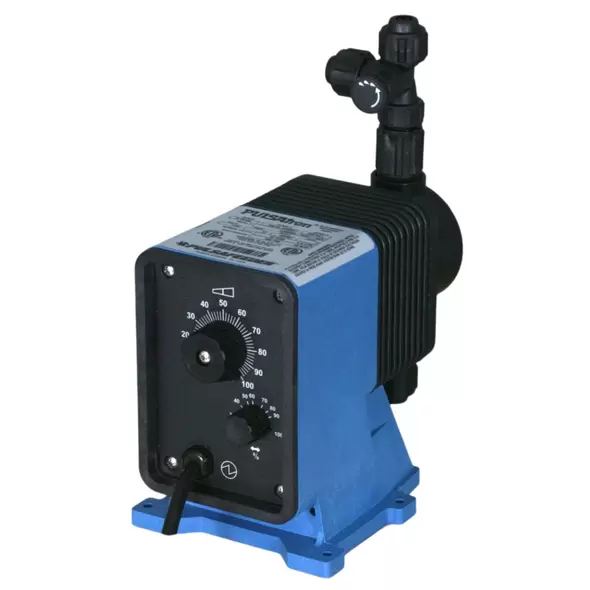

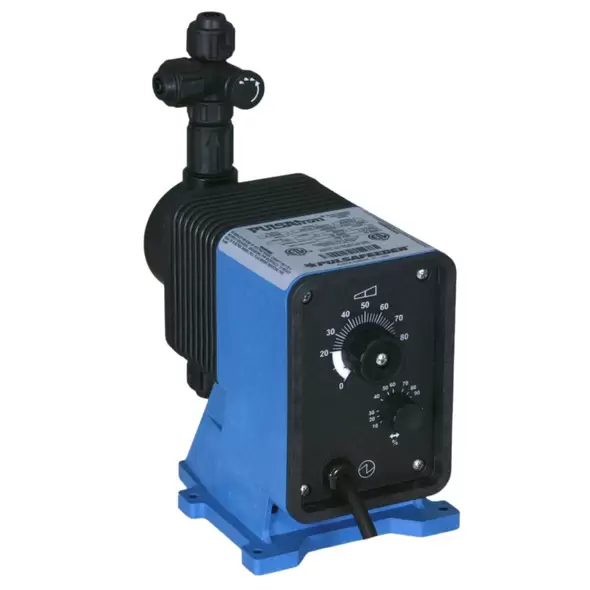

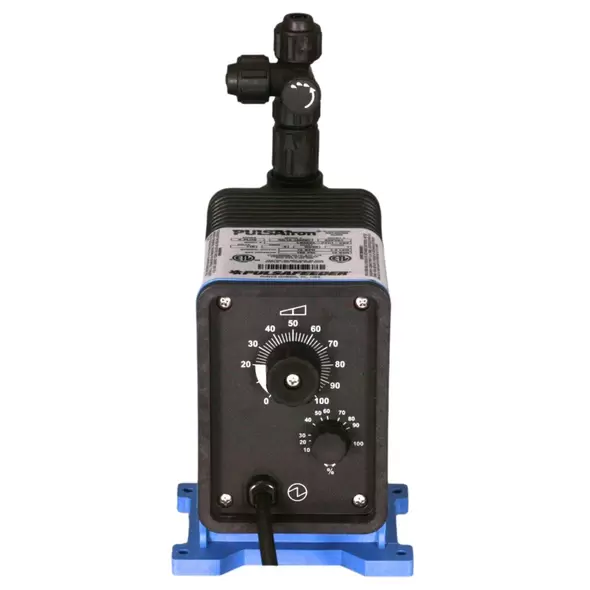

The PULSAtron Series A Plus electronic metering pump, model LB02SA-KTC1-XXX by Cannon Water Technology, combines precision, flexibility, and reliability for consistent chemical dosing. Featuring manual controls for stroke length and rate with an option for external pacing, this pump provides optimal control for water treatment, chemical metering, and other industrial applications. With a maximum pressure capacity of 250 PSI and flow rates up to 58 gallons per day, this Series A Plus pump offers a turndown ratio of 100:1 or up to 2000:1 in specific models, delivering reproducible metering accuracy within ±3% of maximum output. Certified by ETL, CE, and NSF 61, it’s designed for high durability and functionality in demanding environments.

Key Features

  • Adjustable Manual & Automatic Control: Adjustable stroke length and stroke rate with an option for external pacing.
  • Built-in Circuit Protection: Provides reliability with protection against voltage and current fluctuations.
  • Self-Priming with Leak-Free Bleed Valve: Ensures safe and easy priming with a durable, leak-free bleed valve assembly.
  • Outdoor-Ready: Water-resistant for outdoor and indoor applications.
  • Quiet Operation: Internally dampened to minimize noise.
  • Durable and Minimal Maintenance: Designed with few moving parts for long-lasting performance.

Specifications

  • Pump Head Materials: GFPPL, PVC, PVDF, 316 Stainless Steel
  • Fitting Materials: GFPPL, PVC, PVDF
  • Bleed Valve: Matches fitting and check valve (except 316SS)
  • Turndown Ratio: Options for 100:1 or 2000:1
  • Seat O-Rings: PTFE, CSPE, Viton
  • Valve Balls: Ceramic, PTFE, 316 SS, Alloy C
  • Diaphragm: PTFE-faced, CSPE-backed
  • Tubing Options: Clear PVC, White PE, PVDF
  • Power Input: 115 VAC – 50/60 Hz -1 ph, 230 VAC – 50/60 Hz – 1 ph
  • Power Consumption:
    • Peak: 130 Watts
    • Average at Max SPM: 50 Watts
  • Current Draw:
    • 115 VAC: 0.6 amps
    • 230 VAC: 0.3 amps

Performance & Compliance

  • Pressure Capacity: Up to 250 PSI (17 bar)
  • Flow Rate: Up to 58 GPD (9.1 LPH)
  • Reproducibility: Accurate to within ±3% of max capacity
  • Approvals: ETL, CE, and NSF 61 compliant, suitable for industry-standard applications.

Applications

Ideal for industries such as:

  • Water Treatment and Conditioning
  • Chemical Processing
  • Pharmaceutical
  • Wastewater Treatment
  • Mining and Petrochemical
  • Pulp and Paper
  • Oil and Gas
  • Utilities
