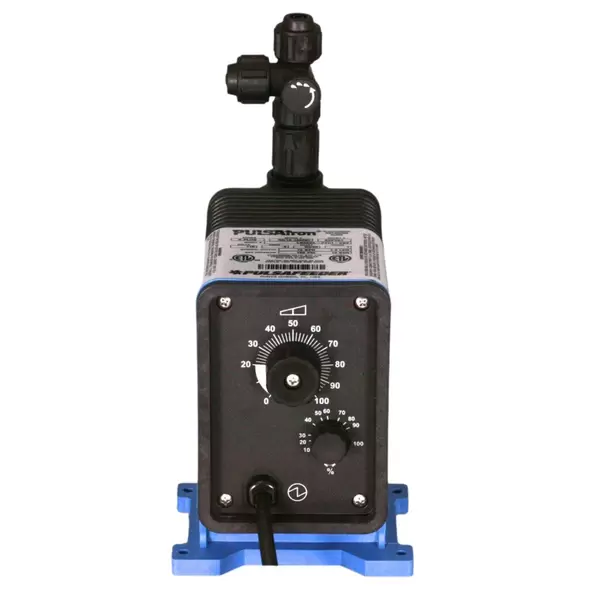

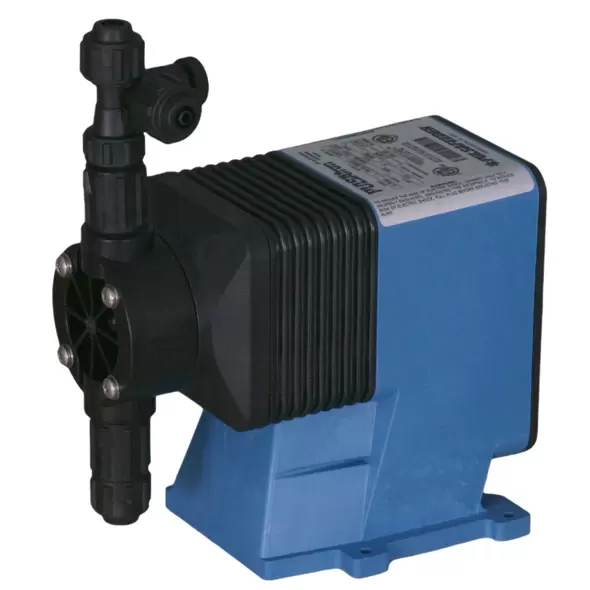

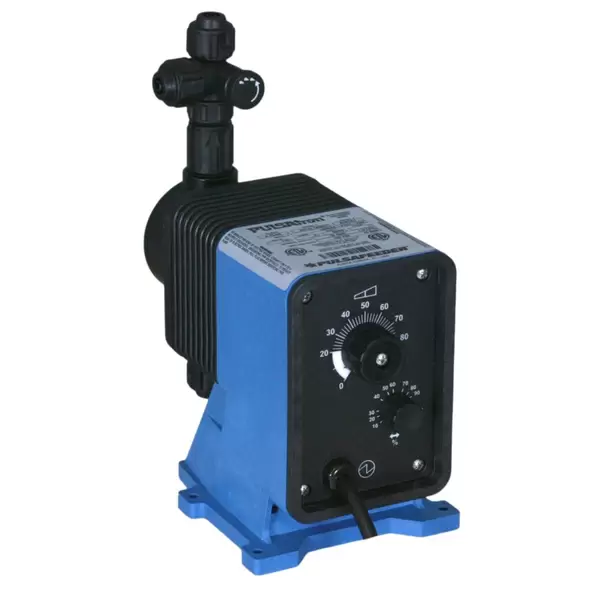

Pulsafeeder LB02SA-VHC1-500 Series A Plus - Electronic Metering Pumps

The Pulsafeeder LB02SA-VHC1-500 Series A PLUS Electronic Metering Pump from Cannon Water is an advanced chemical metering solution, tailored for precise control in demanding industrial applications. The Series A Plus offers robust construction with versatile manual and external control options, enabling users to adjust stroke length and rate for optimal chemical dosing. With ten models available, including the LB02SA-VHC1-500, this pump provides a maximum pressure capability of 250 psi and a flow capacity of up to 58 gallons per day (GPD), ensuring reliable performance across various operating conditions.

Key Features and Advanced Functionality

• Precision Control for Consistent Dosing The LB02SA-VHC1-500 model allows users to manually adjust both stroke length and rate to maintain accurate dosing levels. Additionally, an external pacing option enables automated control for precise, consistent output across varying applications, making it ideal for environments that require high dosing accuracy.
• High-Quality, Durable Construction Constructed to withstand harsh environmental conditions, the pump’s solenoid is equipped with thermal overload protection and auto-reset functionality. These protective features ensure durability, reducing potential downtimes and maintenance frequency.
• Noise Reduction and Water Resistance With an internally dampened system, this pump operates with reduced noise levels, making it suitable for indoor and outdoor installations. Its water-resistant design enhances durability, allowing it to withstand various weather conditions without compromising on performance.
• Reliable Priming and Backflow Prevention The guided ball check valve system prevents backflow and ensures accurate priming, critical for maintaining dosing precision and reducing wastage. This feature is especially beneficial in high-pressure applications, as it optimizes the pump’s efficiency over extended periods of use.

Specifications and Material Composition

• Chemical-Resistant Materials The pump head is available in durable materials like GFPPL, PVC, PVDF, and 316 stainless steel, providing chemical resistance and corrosion protection. The use of PTFE, CSPE, and Viton O-rings ensures compatibility with various chemicals, enhancing the pump’s lifespan in challenging environments.
• Power Efficiency Designed for efficient power usage, the pump operates at 130 Watts peak and draws 0.6 Amps at 115 VAC and 0.3 Amps at 230 VAC, making it energy efficient without sacrificing performance. It also includes a wall-mountable design, enabling easy installation in diverse settings.
• High-Capacity Performance With a flow range of up to 58 GPD (9.1 LPH) and pressure capability of up to 250 psi, the LB02SA-VHC1-500 offers a turndown ratio of 100:1, allowing for accurate metering across multiple applications. The pump’s metering accuracy is within +/- 3% of maximum capacity, ensuring reliable dosing.

Applications

The versatility of the LB02SA-VHC1-500 makes it ideal for a wide range of applications, including:

• Wastewater and Water Treatment
• Pharmaceutical Manufacturing
• Chemical Processing
• Food and Beverage Industry

These pumps are highly recommended in applications that require both high flow capacity and resistance to chemical exposure, enhancing operational efficiency and longevity.
