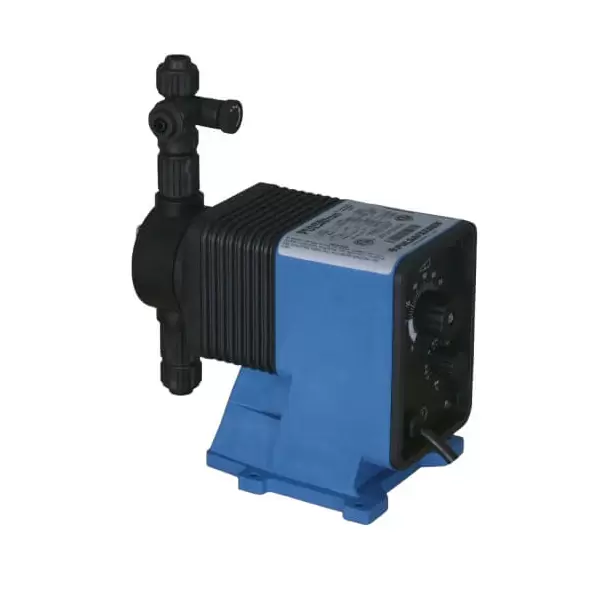

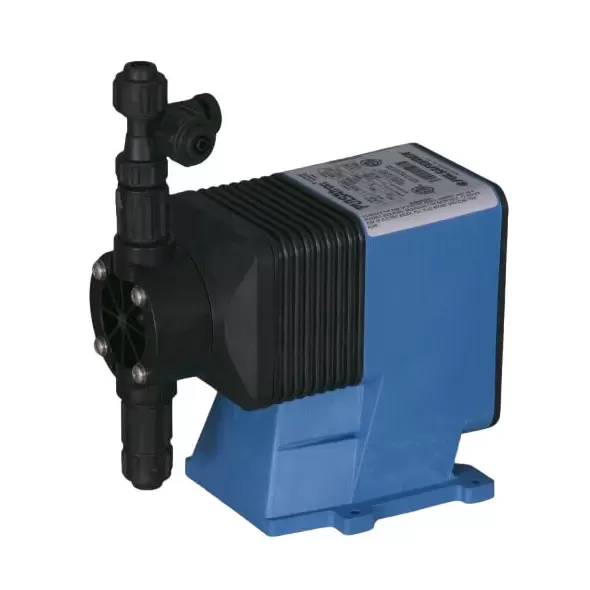

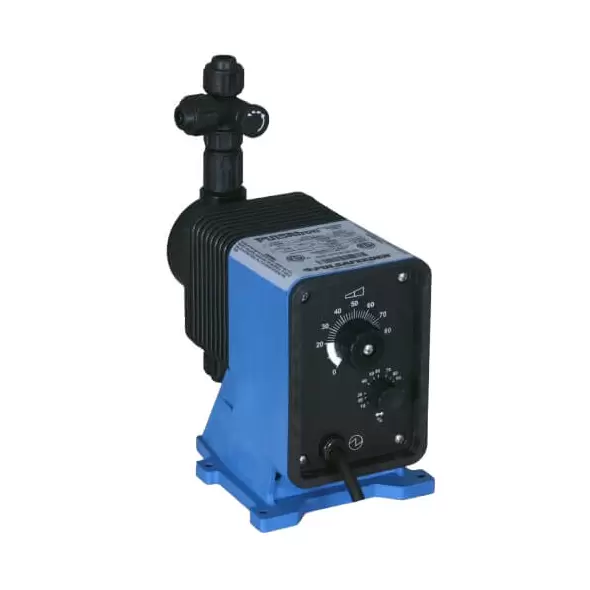

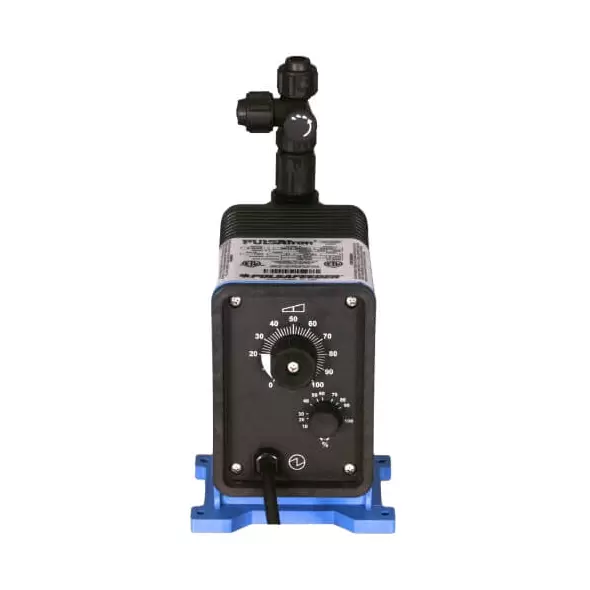

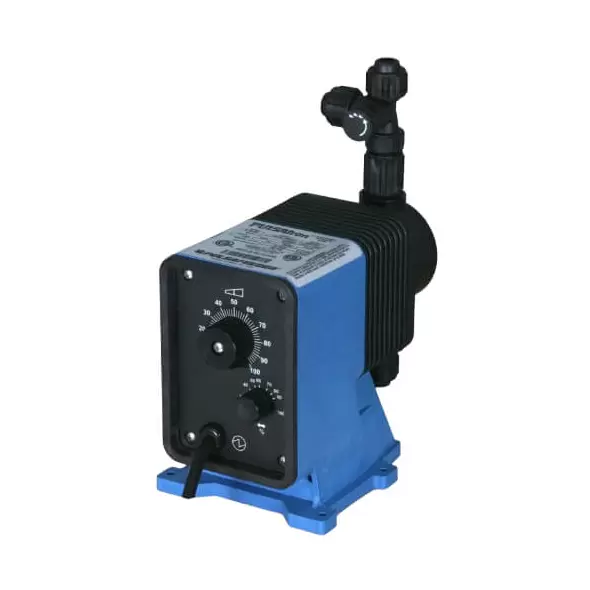

Pulsafeeder LB64SB-KTC1-XXX Series A Plus - Electronic Metering Pumps
In stock
0.00

Description

The Pulsafeeder LB64SB-KTC1-XXX Series A PLUS Electronic Metering Pumps are designed to deliver precise and reliable chemical dosing for industrial and commercial applications. With a legacy of over 25 years, these pumps combine advanced features, certified reliability, and robust performance to meet a variety of operational needs.

Flexible Control Options

The PULSAtron Series A Plus provides manual stroke length and stroke rate adjustments for accurate chemical dosing. For automated systems, optional features such as external pacing and external stop functions, combined with a turndown ratio of up to 2000:1, ensure unmatched versatility and control.

High Performance and Accuracy

With pressure capabilities up to 250 psig (17 bar) and flow rates up to 58 gpd (9.1 lph), these pumps achieve dosing accuracy reproducible to within ±3% of maximum capacity. Their durable design ensures reliable performance in demanding environments.

Certified Quality and Durability

The PULSAtron Series A PLUS is certified by ETL, ETL Sanitation, CE, and NSF 61 (specific to PVDF and PVC Degassing Head models). These certifications validate the pump’s safety, quality, and compliance with global standards.

Features and Benefits

  • Manual and Automated Controls: Adjustable stroke length and rate with optional automation for flexibility.
  • Circuit Protection: Advanced circuitry safeguards against voltage and current fluctuations.
  • Thermal Overload Safety: Solenoid protection with automatic reset ensures long-lasting durability.
  • Water-Resistant Design: Suitable for indoor and outdoor applications.
  • Quiet Operation: Internally dampened design minimizes operational noise.
  • Priming Efficiency: Guided ball check valves improve priming and reduce backflow.
  • Compact and Durable Construction: Few moving parts and wall-mountable design for easy installation and maintenance.
  • Leak-Free Operation: Durable bleed valve assembly ensures safe and efficient priming.

Specifications

  • Pump Head Materials: GFPPL, PVC, PVDF, 316 SS
  • Fitting Materials: GFPPL, PVC, PVDF
  • Bleed Valve Material: Matches the selected fitting and check valve (except 316SS)
  • Turndown Ratio: 100:1 or 2000:1 (depending on model)
  • Seal and O-Ring Options: PTFE, CSPE, Viton
  • Ball Options: Ceramic, PTFE, 316 SS, Alloy C
  • Diaphragms: PTFE-faced CSPE-backed
  • Tubing Available: Clear PVC, White PE, PVDF
  • Power Input: 115 VAC or 230 VAC – 50/60 Hz
  • Power Consumption: Peak input power of 130 watts; average input power of 50 watts

Recommendation

The Pulsafeeder LB64SB-KTC1-XXX Series A PLUS is a dependable solution for precise chemical dosing across diverse industries. Its advanced features, robust construction, and certifications make it a reliable choice for critical and high-performance applications.
