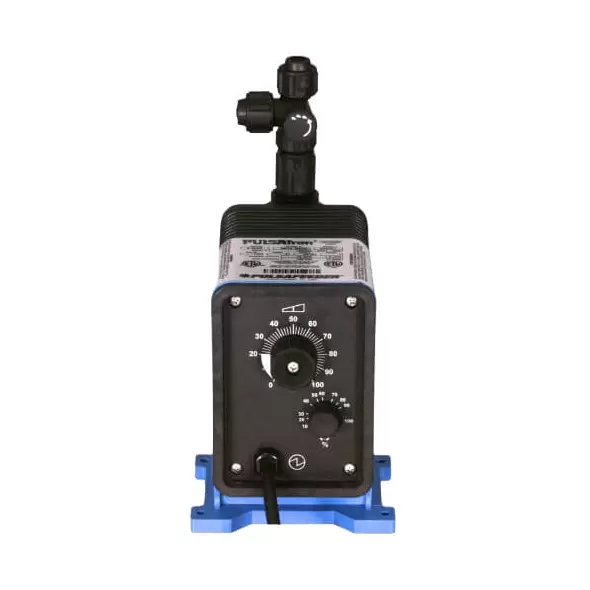

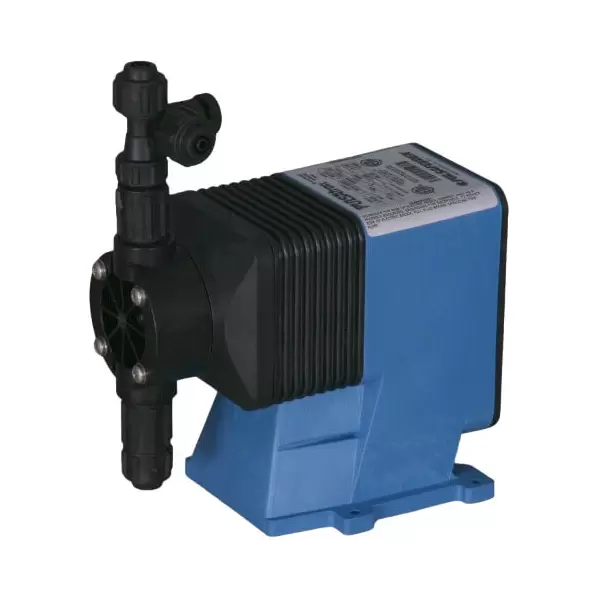

Pulsafeeder LBS3SA-PTCJ-XXX Series A Plus - Electronic Metering Pumps

The Pulsafeeder PULSAtron Series A Plus, model LBS3SA-PTCJ-XXX, is an advanced electronic metering pump designed for industrial and commercial fluid handling applications. Known for its precision, durability, and versatility, this pump offers unmatched performance for demanding processes. With certifications from ETL, CE, and NSF 61, the Series A Plus ensures compliance with the highest quality and safety standards.

Flexible Control Options

The pump provides manual control of stroke length and stroke rate via onboard adjustable knobs, allowing for precise dosing. It also supports external pacing and stop functionalities for seamless integration into automated systems. A turndown ratio of 100:1 or 2000:1 ensures operational flexibility across various flow and pressure requirements.

High-Performance Metrics

Operating at pressures up to 250 psig (17 bar) and delivering flow capacities of up to 58 gallons per day (9.1 liters per hour), the LBS3SA-PTCJ-XXX ensures consistent and accurate metering. Metering performance is reproducible within +/- 3% of maximum capacity, making it ideal for critical applications.

Enhanced Safety Features

Circuit protection safeguards the pump against voltage and current fluctuations, ensuring reliable operation. Solenoid protection with thermal overload and automatic reset adds an additional layer of safety, enabling trouble-free performance under demanding conditions.

Durable and Quiet Design

The pump is constructed with water-resistant materials, making it suitable for both indoor and outdoor environments. Internally dampened mechanisms reduce operational noise, while guided ball check valves enhance priming efficiency and prevent backflow.

Ease of Installation and Maintenance

The wall-mountable design simplifies installation, conserving workspace and improving accessibility. A durable, leak-free bleed valve assembly allows for safe and efficient priming, while minimal moving parts reduce maintenance, ensuring long-term reliability.

Specifications

• Pump Head Materials: GFPPL, PVC, PVDF, 316 SS
• Fittings: GFPPL, PVC, PVDF
• Bleed Valve: Matches fitting and check valve materials (except 316 SS)
• Turndown Ratios: 100:1 or 2000:1 (depending on model)
• Seat O-Rings: PTFE, CSPE, Viton
• Balls: Ceramic, PTFE, 316 SS, Alloy C
• Diaphragms: PTFE-faced, CSPE-backed
• Tubing: Clear PVC, White PE, PVDF
• Power Input: 115 VAC or 230 VAC, 50/60 HZ
• Power Consumption: Peak 130 Watts; average 50 Watts at maximum strokes per minute
• Current Draw: 115 VAC (0.6 Amps), 230 VAC (0.3 Amps)

Certifications and Approvals

The LBS3SA-PTCJ-XXX Series A Plus is certified by ETL, ETL Sanitation, CE, and NSF 61 (specific to PVDF material and PVC Degassing Head models), ensuring compliance with stringent global safety and quality standards.

Applications

This pump is suitable for a wide range of industries, including:

• Water treatment systems
• Chemical processing
• Food and beverage production
• Industrial fluid handling

Recommendations

The Pulsafeeder LBS3SA-PTCJ-XXX is a reliable choice for professionals seeking precision, durability, and versatility in metering pumps. Its advanced features, certifications, and consistent performance make it an ideal solution for critical fluid handling applications.
