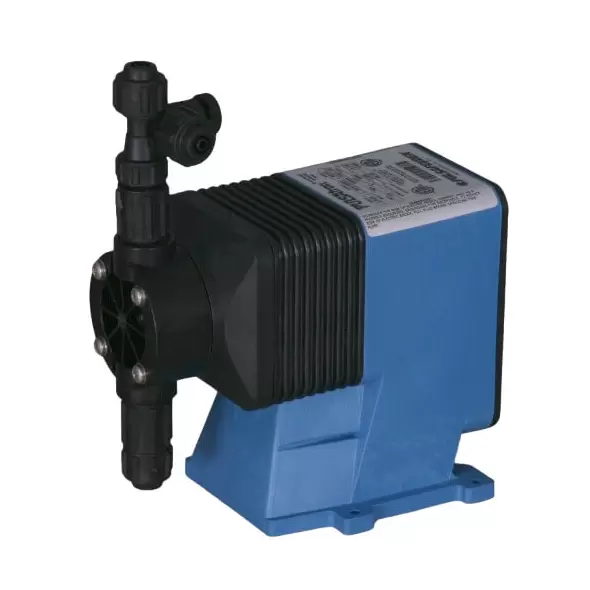

Pulsafeeder LBS3SB-PTCJ-XXX Series A Plus - Electronic Metering Pumps

The Pulsafeeder PULSAtron Series A Plus, model LBS3SB-PTCJ-XXX, is a high-precision electronic metering pump designed for industrial and commercial applications. With its advanced control options, robust construction, and globally recognized certifications, this pump delivers dependable performance in demanding environments. Its legacy of over 25 years of excellence makes it a trusted choice for professionals worldwide.

Advanced Control Features

The LBS3SB-PTCJ-XXX offers manual adjustment of stroke length and rate, ensuring precision in fluid dosing. Optional features like external pace and stop functionalities allow seamless integration into automated systems. With a turndown ratio of 100:1 or 2000:1, this pump provides versatile performance to meet various operational requirements.

High-Performance Metrics

This model achieves pressure capabilities of up to 250 psig (17 bar) and a flow capacity of 58 gallons per day (9.1 liters per hour). Its metering accuracy is reproducible to within +/- 3% of maximum capacity, ensuring reliable and consistent operation.

Enhanced Safety and Protection

Built-in circuit protection safeguards the pump against voltage and current fluctuations. The solenoid is equipped with thermal overload protection and an auto-reset feature, ensuring safe and durable operation even under challenging conditions.

Durable and Quiet Operation

Constructed with water-resistant materials, the LBS3SB-PTCJ-XXX is suitable for both indoor and outdoor use. Internally dampened mechanisms reduce operational noise, and guided ball check valves enhance priming efficiency while preventing backflow.

Easy Installation and Maintenance

The pump’s wall-mountable design simplifies installation, optimizing space and usability. A durable, leak-free bleed valve assembly ensures safe priming. With minimal moving parts, maintenance requirements are reduced, offering cost-effective and reliable performance.

Specifications

• Pump Head Materials: GFPPL, PVC, PVDF, 316 SS
• Fittings: GFPPL, PVC, PVDF
• Bleed Valve: Matches fitting and check valve materials (except 316 SS)
• Turndown Ratios: 100:1 or 2000:1 (depending on model)
• Seat O-Rings: PTFE, CSPE, Viton
• Balls: Ceramic, PTFE, 316 SS, Alloy C
• Diaphragms: PTFE-faced, CSPE-backed
• Tubing: Clear PVC, White PE, PVDF
• Power Input: 115 VAC or 230 VAC, 50/60 HZ
• Power Consumption: Peak 130 Watts; average 50 Watts at maximum strokes per minute
• Current Draw: 115 VAC (0.6 Amps), 230 VAC (0.3 Amps)

Certifications and Approvals

The LBS3SB-PTCJ-XXX Series A Plus is certified by ETL, ETL Sanitation, CE, and NSF 61 (specific to PVDF material and PVC Degassing Head models), ensuring compliance with stringent safety and quality standards.

Applications

This pump is suitable for a range of applications, including:

• Water treatment systems
• Chemical processing
• Food and beverage production
• Industrial fluid management

Recommendations

The Pulsafeeder LBS3SB-PTCJ-XXX is ideal for professionals seeking a reliable, high-performance metering pump. Its advanced features, precision, and durability make it a valuable tool for efficient fluid management.
