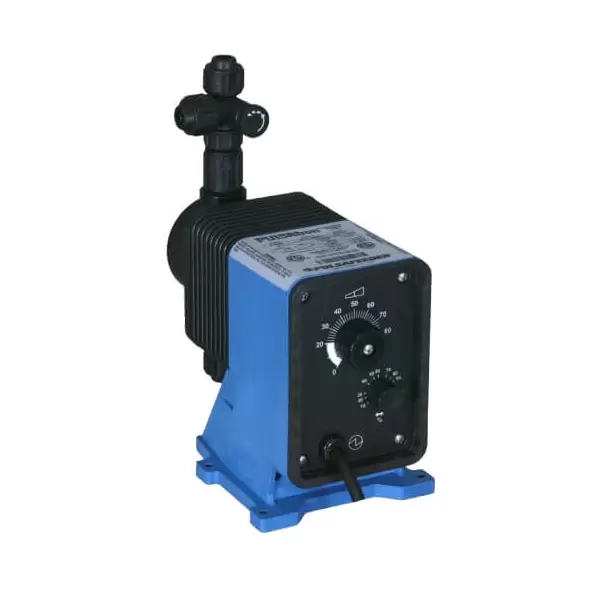

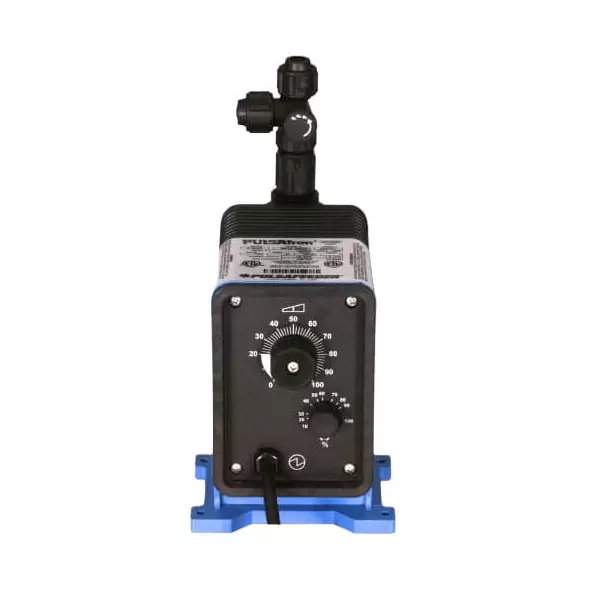

Pulsafeeder LBS4SA-PTC1-500 Series A Plus - Electronic Metering Pumps

The PULSAtron Series A Plus represents the pinnacle of precision and reliability in fluid handling solutions. Designed to cater to a variety of industrial applications, this series combines robust construction, versatile control options, and industry-recognized certifications. With over 25 years of expertise, PULSAtron pumps are synonymous with durability and performance.

Precision Control and Automation

The Series A Plus is equipped with manual controls for stroke length and stroke rate, offering users the flexibility to fine-tune performance. Advanced options, including external pacing for automated control, external stop functions, and a 2000:1 turndown ratio, provide enhanced functionality to meet complex operational demands.

Performance and Model Options

Available in ten distinct models, the Series A Plus is tailored to deliver exceptional performance:

• Pressure Capability: Up to 250 psig (17 bar)
• Flow Rate: Up to 58 gallons per day (9.1 liters per hour)
• Turndown Ratio: Standard models offer 100:1; advanced models provide a 2000:1 ratio

The pump ensures reproducible metering performance within +/- 3% of its maximum capacity, guaranteeing reliable operation in critical applications.

Certifications and Compliance

The PULSAtron Series A Plus meets stringent industry standards and is certified by leading organizations:

• ETL and ETL Sanitation: Assurance of electrical safety and sanitation compliance
• CE Certification: Conformance to European safety, health, and environmental standards
• NSF 61 Approval: Applies to PVDF material and PVC degassing head models for safe fluid handling

Advanced Features

• Manual and Automated Functionality: Adjustable stroke length/rate with optional external pacing for automation.
• Circuit Protection: Safeguards against voltage and current disruptions, ensuring operational reliability.
• Thermal Overload Protection: Prevents solenoid damage with an auto-reset feature.
• Noise Reduction: Internal damping minimizes operational noise for a quieter working environment.
• Priming Efficiency: Guided ball check valve system reduces backflow and enhances priming characteristics.
• Durable and Versatile Design: Water-resistant for both indoor and outdoor applications.
• Leak-Free Operation: Equipped with a robust, safe bleed valve assembly.
• Wall-Mountable: Convenient installation and space-saving design.

Technical Specifications

• Pump Head Materials: GFPPL, PVC, PVDF, 316 SS
• Fitting Materials: GFPPL, PVC, PVDF
• Bleed Valve: Matches fitting and check valve material (except for 316 SS)
• Seat O-Rings: PTFE, CSPE, Viton
• Ball Materials: Ceramic, PTFE, 316 SS, Alloy C
• Diaphragms: PTFE-faced CSPE-backed
• Tubing Options: Clear PVC, White PE, PVDF
• Power Input: 115 VAC or 230 VAC, 50/60 Hz, single-phase
• Power Consumption: Peak power at 130 watts; average power at maximum strokes per minute is 50 watts
• Current Draw: 0.6 amps at 115 VAC; 0.3 amps at 230 VAC

Recommendations

The Pulsafeeder LBS4SA-PTC1-500 Series A PLUS is a dependable choice for industrial, municipal, and commercial applications requiring precise, safe, and durable fluid handling solutions. Its advanced features and robust design make it an ideal pump for operations demanding reliability and flexibility.
