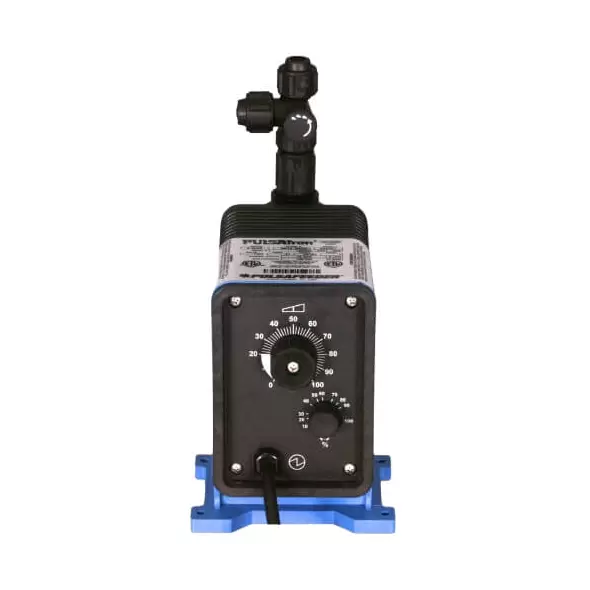

Pulsafeeder LD02S2-VTC1-CZXXX Series C Plus - Electronic Metering Pumps

The PULSAtron Series C Plus builds on the legacy of the Series C, offering precision fluid handling for a wide range of applications. While it retains manual control over stroke length and stroke rate as standard, the Series C Plus is distinguished by its higher pressure capabilities. This series is ideal for applications requiring pressure up to 80 psi and flow capacities of 30 gpd (4.7 lph). With a turndown ratio of 100:1 and metering performance reproducible within +/- 3% of maximum capacity, it ensures accurate and reliable performance.

The Series C Plus features advanced guided check valves for precise seating, excellent priming, and enhanced suction characteristics. Its highly reliable timing circuit is designed to withstand temperature variations, EMI, and other electrical disturbances, making it a dependable solution for challenging environments.

Control and Automation

The Series C Plus offers:

• Manual Control: Adjustable stroke length and stroke rate for precision operation.
• External Pacing Option: Enables automated control for enhanced flexibility.

Performance and Model Options

With four distinct models, the Series C Plus provides:

• Pressure Capability: Up to 80 psi
• Flow Capacity: Up to 30 gallons per day (4.7 liters per hour)
• Turndown Ratio: 100:1

Metering performance is consistent and reproducible, ensuring reliable fluid handling.

Certifications and Approvals

The Series C Plus meets stringent quality and safety standards, with certifications including:

• ETL and ETL Sanitation: Electrical and sanitation compliance.
• CE Certification: Conforms to European safety and environmental requirements.
• NSF 61 Approval: Specific to PVDF material and PVC Degassing Head models, ensuring safe handling of potable water.

Key Features

• Reliable Timing Circuit: Virtually unaffected by temperature, EMI, and electrical disturbances.
• Manual and Automated Control: Adjustable stroke length and rate with an option for external pacing.
• Thermal Overload Protection: Automatic reset protects the solenoid, ensuring long-term reliability.
• Noise Reduction: Internally dampened for quieter operation.
• Priming Efficiency: Guided ball check valve system minimizes backflow and improves priming characteristics.
• Durable and Water-Resistant Design: Suitable for indoor and outdoor use.
• Leak-Free Operation: Equipped with a robust bleed valve assembly for safe and efficient priming.
• Wall-Mountable: Compact design for easy installation and space efficiency.

Technical Specifications

• Pump Head Materials: GFPPL, PVC, PVDF, 316 SS
• Fitting Materials: GFPPL, PVC, PVDF
• Bleed Valve: Matches fitting and check valve material (except for 316 SS)
• Seat O-Rings: PTFE, CSPE, Viton
• Ball Materials: Ceramic, PTFE, 316 SS, Alloy C
• Diaphragms: PTFE-faced CSPE-backed
• Tubing Options: Clear PVC, White PE, PVDF
• Power Input: 115 VAC or 230 VAC, 50/60 Hz, single-phase
• Power Consumption: Peak input power of 130 watts; average power at maximum strokes per minute is 50 watts
• Current Draw: 0.6 amps at 115 VAC; 0.3 amps at 230 VAC

Recommendations

The Pulsafeeder LD02S2-VTC1-CZXXX Series C PLUS is a dependable solution for industries requiring precise, safe, and efficient fluid handling. Its enhanced pressure capabilities, durable design, and certifications make it a perfect choice for demanding environments such as water treatment, chemical processing, and commercial fluid applications.
