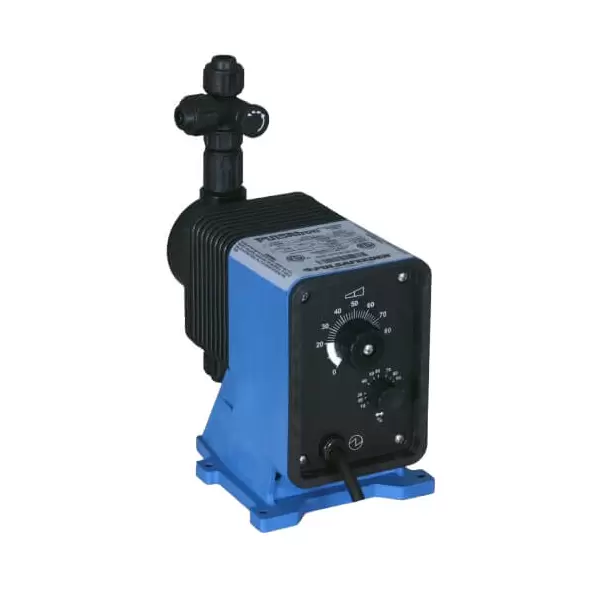

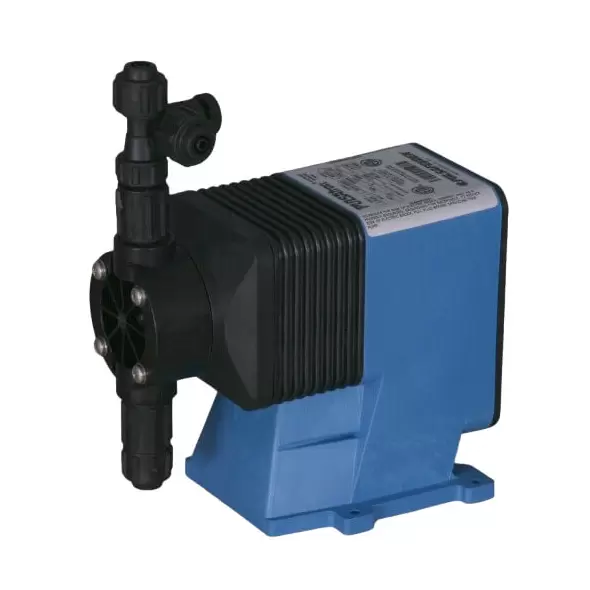

Pulsafeeder LD54E2-VTC1-CZXXX Series C Plus - Electronic Metering Pumps

The Pulsafeeder LD54E2-VTC1-CZXXX Series C PLUS is a precision-engineered electronic metering pump designed for high reliability and efficient fluid metering. While maintaining the trusted manual control capabilities of the PULSAtron Series C, this model introduces enhanced pressure ratings and external pacing options to support automated operations. With a pressure capacity of up to 80 psi and a maximum flow rate of 30 gpd (4.7 lph), the Series C PLUS achieves a 100:1 turndown ratio and offers metering accuracy reproducible to within +/- 3% of maximum capacity.

Its guided check valves, featuring state-of-the-art seat and ball designs, ensure accurate seating, excellent priming, and extended suction life. The highly dependable timing circuit remains unaffected by temperature fluctuations, EMI, and electrical disturbances, making it suitable for demanding applications.

Control and Automation

• Manual Control: Adjust stroke length and stroke rate for precise fluid metering.
• Optional External Pacing: Allows for automated operation to meet dynamic application needs.

Performance and Model Options

The Series C PLUS offers four versatile models for diverse fluid metering tasks:

• Pressure Capability: Up to 80 psi
• Flow Capacity: Up to 30 gpd (4.7 lph)
• Turndown Ratio: 100:1

Certifications and Approvals

This pump meets the highest safety and quality standards, with certifications including:

• ETL and ETL Sanitation: Ensures compliance with electrical and sanitation safety regulations.
• CE Certification: Meets European safety and environmental standards.
• NSF 61 Approval: Specific for PVDF and PVC Degassing Head models for potable water applications.

Key Features

• Reliable Timing Circuit: Unaffected by temperature variations, EMI, and electrical disturbances.
• Precision Adjustment: Manual control of stroke rate and stroke length ensures accurate fluid metering.
• Safety Features: Circuit protection guards against voltage and current upsets, with solenoid protection via thermal overload and auto-reset.
• Noise Reduction: Internally dampened design ensures quieter operation.
• Enhanced Priming: Guided ball check valve systems minimize backflow and improve suction performance.
• Durable and Water-Resistant: Designed for both indoor and outdoor use.
• Leak-Free Operation: Includes a robust bleed valve assembly for safe and efficient priming.
• Wall-Mountable Design: Compact and user-friendly for space-saving installation.

Technical Specifications

• Pump Head Materials: GFPPL, PVC, PVDF, 316 SS
• Fitting Materials: GFPPL, PVC, PVDF
• Bleed Valve: Matches fitting and check valve material (except for 316 SS)
• Seat O-Rings: PTFE, CSPE, Viton
• Ball Materials: Ceramic, PTFE, 316 SS, Alloy C
• Diaphragms: PTFE-faced CSPE-backed
• Tubing Options: Clear PVC, White PE, PVDF
• Power Input: 115 VAC or 230 VAC, 50/60 Hz, single-phase
• Power Consumption: Peak input power of 130 watts; average power at maximum strokes per minute is 50 watts
• Current Draw: 0.6 amps at 115 VAC; 0.3 amps at 230 VAC

Recommendations

The Pulsafeeder LD54E2-VTC1-CZXXX Series C PLUS is the optimal choice for fluid metering in industries requiring accuracy, efficiency, and reliability. It is ideal for applications in water treatment, chemical dosing, and other precision fluid handling tasks.
