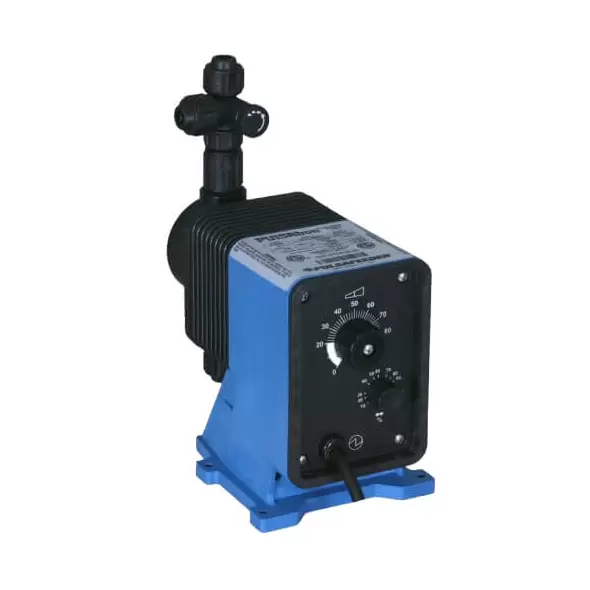

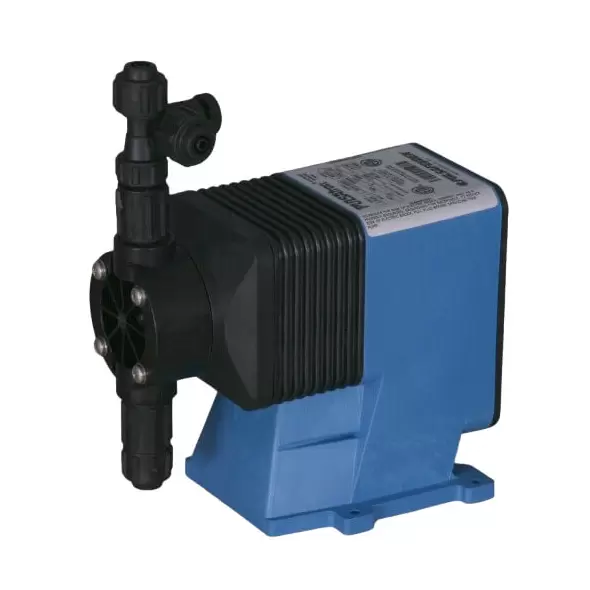

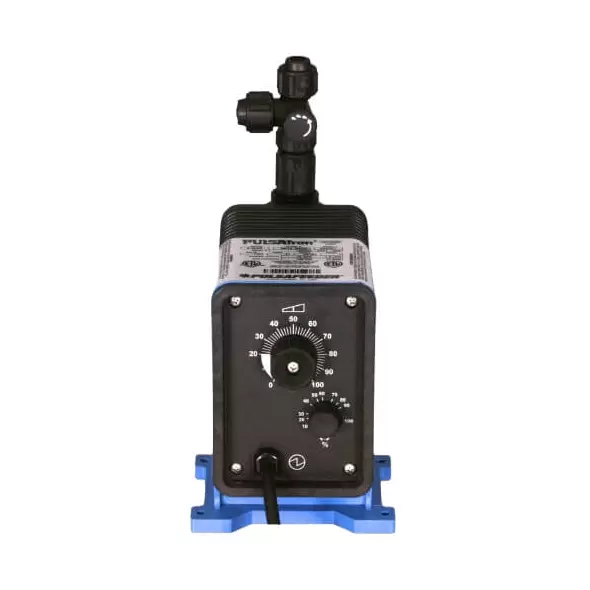

Pulsafeeder LD54S2-PTC1-CZXXX Series C Plus - Electronic Metering Pumps

The Pulsafeeder LD54S2-PTC1-CZXXX Series C PLUS is a highly efficient and precision-engineered electronic metering pump, designed to meet the demanding requirements of fluid handling applications. Built on the trusted foundation of the PULSAtron Series C, this model features enhanced pressure capabilities of up to 80 psi, flow capacities of 30 gpd (4.7 lph), and a turndown ratio of 100:1. With manual control over stroke length and stroke rate, and the option for external pacing, it offers unmatched flexibility and accuracy in operation.

The guided check valves utilize advanced seat and ball designs, ensuring precise seating, excellent priming, and long-lasting suction life. The highly reliable timing circuit is designed to perform consistently under varying temperatures, EMI, and electrical disturbances, making it a dependable solution for industrial and commercial applications.

Control and Automation

• Manual Control: Adjustable stroke rate and stroke length for accurate fluid metering.
• Optional External Pacing: Facilitates automated operations to suit dynamic application needs.

Performance and Model Options

The Series C PLUS offers versatile performance across its range of models:

• Pressure Capability: Up to 80 psi
• Flow Capacity: Up to 30 gpd (4.7 lph)
• Turndown Ratio: 100:1

Certifications and Approvals

The LD54S2-PTC1-CZXXX meets stringent safety and quality standards, including:

• ETL and ETL Sanitation: Compliance with electrical and sanitation safety regulations.
• CE Certification: Adheres to European safety and environmental standards.
• NSF 61 Approval: Certified for PVDF material and PVC Degassing Head models, ensuring safe potable water handling.

Key Features

• Reliable Timing Circuit: Performs consistently under various environmental and electrical conditions.
• Precision Adjustment: Manual control ensures accuracy reproducible to within +/- 3% of maximum capacity.
• Safety Mechanisms: Includes circuit protection against voltage/current upsets and solenoid thermal overload protection with auto-reset.
• Noise Reduction: Internally dampened to ensure quiet operation.
• Enhanced Priming: Guided ball check valve systems reduce backflow and improve suction capabilities.
• Water-Resistant Build: Suitable for both indoor and outdoor environments.
• Leak-Free Operation: Equipped with a durable bleed valve assembly for safe and efficient priming.
• Compact Design: Wall-mountable for easy installation and space efficiency.

Technical Specifications

• Pump Head Materials: GFPPL, PVC, PVDF, 316 SS
• Fitting Materials: GFPPL, PVC, PVDF
• Bleed Valve: Matches fitting and check valve material (except for 316 SS)
• Seat O-Rings: PTFE, CSPE, Viton
• Ball Materials: Ceramic, PTFE, 316 SS, Alloy C
• Diaphragms: PTFE-faced CSPE-backed
• Tubing Options: Clear PVC, White PE, PVDF
• Power Input: 115 VAC or 230 VAC, 50/60 Hz, single-phase
• Power Consumption: Peak input power of 130 watts; average power at maximum strokes per minute is 50 watts
• Current Draw: 0.6 amps at 115 VAC; 0.3 amps at 230 VAC

Recommendations

The Pulsafeeder LD54S2-PTC1-CZXXX Series C PLUS is ideal for fluid metering tasks in industries requiring precision and reliability, such as water treatment, chemical dosing, and other critical fluid handling applications. Its advanced design, durable construction, and certifications make it a trusted choice for professionals.
