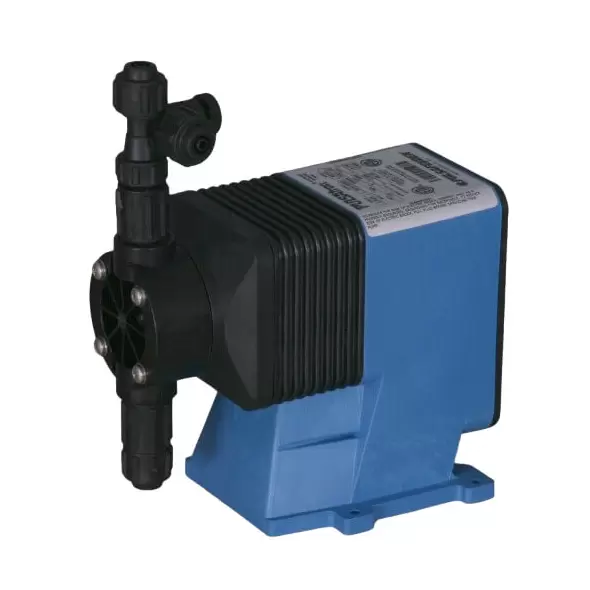

Pulsafeeder LD54S2-VTC1-CZXXX Series C Plus - Electronic Metering Pumps

The Pulsafeeder LD54S2-VTC1-CZXXX Series C PLUS is a high-precision, reliable electronic metering pump engineered for diverse fluid handling needs. Retaining the trusted features of the PULSAtron Series C, this pump introduces advanced performance capabilities, including manual control over stroke length and stroke rate, as well as optional external pacing for automated fluid management. It boasts pressure capacities of up to 80 psi and flow rates of 30 gpd (4.7 lph), with a 100:1 turndown ratio, ensuring metering reproducibility within +/- 3% of maximum capacity.

Designed for durability and efficiency, the guided check valves feature advanced seat and ball designs to enhance priming, reduce backflow, and extend suction life. A robust timing circuit ensures consistent performance, even under challenging environmental conditions, such as temperature fluctuations, EMI, and electrical disturbances.

Control and Automation

• Manual Control: On-line adjustable stroke rate and stroke length for precision fluid handling.
• Optional External Pacing: Enables automated operation for dynamic application requirements.

Performance and Model Options

The Series C PLUS offers a versatile range of models designed to meet varied fluid metering needs:

• Pressure Capability: Up to 80 psi
• Flow Capacity: Up to 30 gpd (4.7 lph)
• Turndown Ratio: 100:1

Certifications and Approvals

This pump meets rigorous safety and quality standards, ensuring reliable operation across applications:

• ETL and ETL Sanitation: Compliance with electrical and sanitation safety standards.
• CE Certification: Conforms to European safety and environmental regulations.
• NSF 61 Approval: Certified for PVDF material and PVC Degassing Head models, ensuring safe use in potable water applications.

Key Features

• Highly Reliable Timing Circuit: Performs unaffected by environmental or electrical disturbances.
• Precision Adjustment: Manual control of stroke rate and stroke length ensures accuracy within +/- 3%.
• Safety Mechanisms: Circuit protection against voltage/current upsets and solenoid thermal overload with auto-reset.
• Noise Reduction: Internally dampened design ensures quiet operation.
• Enhanced Priming: Guided ball check valve systems reduce backflow and improve suction characteristics.
• Water-Resistant Design: Suitable for both indoor and outdoor applications.
• Leak-Free Operation: Equipped with a durable bleed valve assembly for efficient and safe priming.
• Wall-Mountable Construction: Compact and easy to install, optimizing space efficiency.

Technical Specifications

• Pump Head Materials: GFPPL, PVC, PVDF, 316 SS
• Fitting Materials: GFPPL, PVC, PVDF
• Bleed Valve: Matches fitting and check valve material (except for 316 SS)
• Seat O-Rings: PTFE, CSPE, Viton
• Ball Materials: Ceramic, PTFE, 316 SS, Alloy C
• Diaphragms: PTFE-faced CSPE-backed
• Tubing Options: Clear PVC, White PE, PVDF
• Power Input: 115 VAC or 230 VAC, 50/60 Hz, single-phase
• Power Consumption: Peak input power of 130 watts; average power at maximum strokes per minute is 50 watts
• Current Draw: 0.6 amps at 115 VAC; 0.3 amps at 230 VAC

Recommendations

The Pulsafeeder LD54S2-VTC1-CZXXX Series C PLUS is the ideal choice for industries requiring precision, reliability, and durability in fluid metering applications. Perfect for water treatment, chemical dosing, and other critical fluid handling needs, it provides trusted performance and certifications that meet the highest industry standards.
