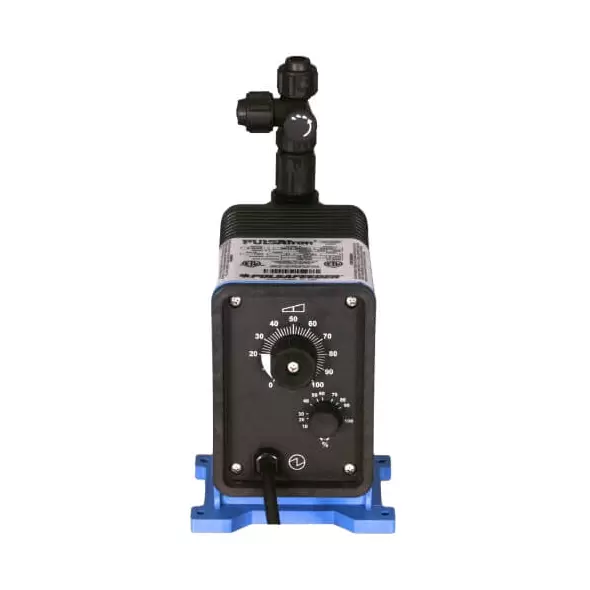

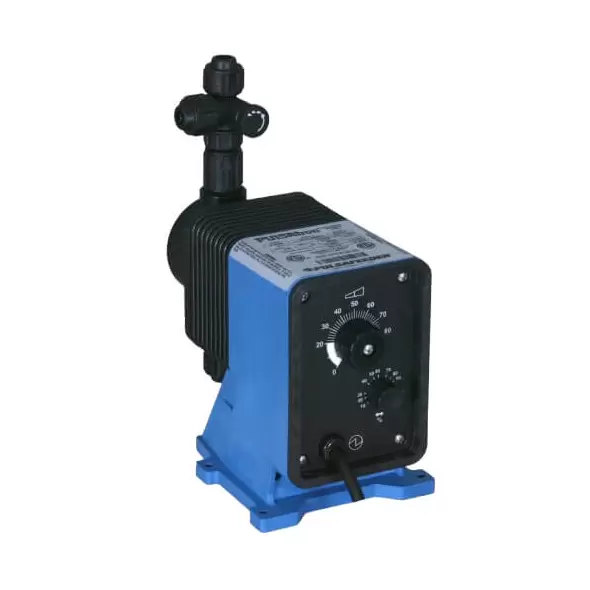

Pulsafeeder LD54SA-KTC1-130 Series C Plus - Electronic Metering Pumps

The Pulsafeeder LD54SA-KTC1-130 Series C PLUS is a precision-engineered electronic metering pump designed for high performance and reliability in fluid metering applications. Building on the trusted features of the PULSAtron Series C, this model offers manual control of stroke length and stroke rate, along with the flexibility of optional external pacing for automated operations. With pressure capabilities of up to 80 psi and flow capacities of 30 gpd (4.7 lph), the Series C PLUS provides a turndown ratio of 100:1, ensuring accurate metering reproducible to within +/- 3% of maximum capacity.

The guided check valves incorporate state-of-the-art seat and ball designs, delivering exceptional priming, precise seating, and extended suction life. The pump's advanced timing circuit is highly reliable and unaffected by environmental factors such as temperature, EMI, and electrical disturbances.

Control and Automation

• Manual Control: Adjustable stroke length and stroke rate for precise fluid handling.
• Optional External Pacing: Enables automated fluid metering to suit dynamic applications.

Performance and Model Options

The Series C PLUS offers high versatility for various industrial and commercial applications:

• Pressure Capability: Up to 80 psi
• Flow Capacity: Up to 30 gpd (4.7 lph)
• Turndown Ratio: 100:1

Certifications and Approvals

The LD54SA-KTC1-130 meets stringent industry standards for safety and quality:

• ETL and ETL Sanitation: Ensures compliance with electrical and sanitation regulations.
• CE Certification: Conforms to European safety and environmental standards.
• NSF 61 Approval: Certified for PVDF material and PVC Degassing Head models for potable water use.

Key Features

• Reliable Timing Circuit: Delivers consistent performance regardless of environmental or electrical conditions.
• Precision Adjustment: Manual controls ensure metering reproducibility within +/- 3%.
• Safety Features: Includes circuit protection against voltage and current upsets, as well as solenoid thermal overload protection with auto-reset.
• Noise Reduction: Internally dampened design minimizes operational noise.
• Enhanced Priming: Guided ball check valve systems reduce backflow and improve suction efficiency.
• Water-Resistant Design: Suitable for both indoor and outdoor applications.
• Leak-Free Priming: Equipped with a durable bleed valve assembly for safe and efficient operation.
• Compact and Space-Saving: Wall-mountable construction simplifies installation.

Technical Specifications

• Pump Head Materials: GFPPL, PVC, PVDF, 316 SS
• Fitting Materials: GFPPL, PVC, PVDF
• Bleed Valve: Matches fitting and check valve material (except for 316 SS)
• Seat O-Rings: PTFE, CSPE, Viton
• Ball Materials: Ceramic, PTFE, 316 SS, Alloy C
• Diaphragms: PTFE-faced CSPE-backed
• Tubing Options: Clear PVC, White PE, PVDF
• Power Input: 115 VAC or 230 VAC, 50/60 Hz, single-phase
• Power Consumption: Peak input power of 130 watts; average power at maximum strokes per minute is 50 watts
• Current Draw: 0.6 amps at 115 VAC; 0.3 amps at 230 VAC

Recommendations

The Pulsafeeder LD54SA-KTC1-130 Series C PLUS is ideal for industries requiring precision and reliability in fluid metering, including water treatment, chemical dosing, and other critical applications. With its robust design, high accuracy, and certifications, it is a trusted solution for professionals seeking dependable performance.
