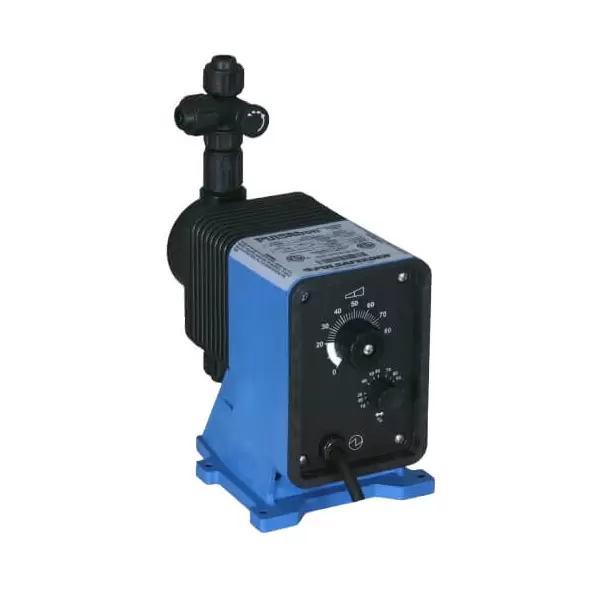

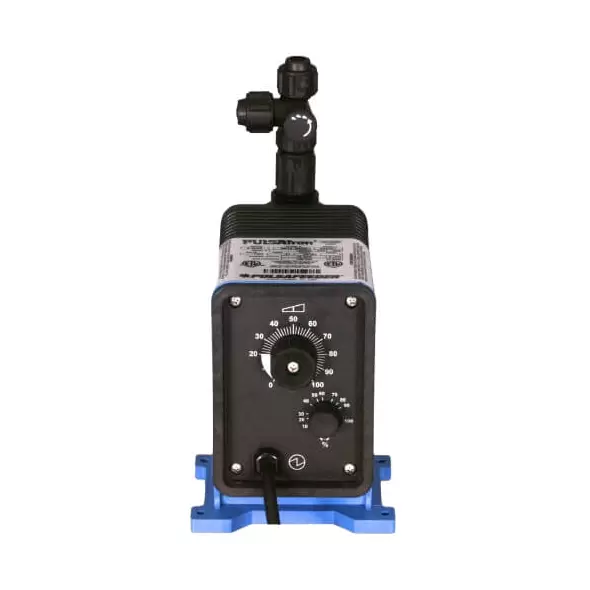

Pulsafeeder LD54SA-KTC2-XXX Series C Plus - Electronic Metering Pumps

The Pulsafeeder LD54SA-KTC2-XXX Series C PLUS is a reliable and efficient electronic metering pump tailored for precision fluid handling in industrial and commercial applications. This model builds on the proven features of the PULSAtron Series C, offering enhanced performance through manual stroke length and stroke rate controls, alongside optional external pacing for automated functionality. With a pressure capacity of up to 80 psi and flow capabilities of 30 gpd (4.7 lph), this pump delivers a turndown ratio of 100:1 and metering accuracy reproducible to within +/- 3% of maximum capacity.

Designed with advanced guided check valves and a dependable timing circuit, the pump ensures precise fluid delivery and optimal priming, even under demanding environmental conditions. Its robust construction and certifications make it suitable for diverse fluid metering applications.

Control and Automation

• Manual Adjustment: Fine-tune stroke length and rate for precise metering.
• Optional External Pacing: Supports automated operations for dynamic application requirements.

Performance and Model Options

The Series C PLUS offers exceptional performance for a variety of operational needs:

• Pressure Capability: Up to 80 psi
• Flow Capacity: Up to 30 gpd (4.7 lph)
• Turndown Ratio: 100:1

Certifications and Approvals

This pump complies with stringent industry standards, ensuring safety and reliability:

• ETL and ETL Sanitation: Certified for electrical and sanitation safety.
• CE Certification: Conforms to European safety and environmental regulations.
• NSF 61 Approval: Certified for PVDF material and PVC Degassing Head models for potable water applications.

Key Features

• Dependable Timing Circuit: Operates consistently under varying environmental and electrical conditions.
• High Accuracy: Delivers metering reproducible to within +/- 3% of maximum capacity.
• Safety Mechanisms: Includes thermal overload protection for the solenoid and circuit safeguards against voltage/current upsets.
• Reduced Noise: Internally dampened design ensures quiet operation.
• Advanced Priming Efficiency: Guided ball check valves prevent backflow and enhance suction life.
• Water-Resistant Design: Suitable for indoor and outdoor environments.
• Leak-Free Priming: Durable bleed valve assembly ensures safe and efficient operation.
• Wall-Mountable Construction: Compact and space-efficient design for ease of installation.

Technical Specifications

• Pump Head Materials: GFPPL, PVC, PVDF, 316 SS
• Fitting Materials: GFPPL, PVC, PVDF
• Bleed Valve: Matches fitting and check valve material (except for 316 SS)
• Seat O-Rings: PTFE, CSPE, Viton
• Ball Materials: Ceramic, PTFE, 316 SS, Alloy C
• Diaphragms: PTFE-faced CSPE-backed
• Tubing Options: Clear PVC, White PE, PVDF
• Power Input: 115 VAC or 230 VAC, 50/60 Hz, single-phase
• Power Consumption: Peak input power of 130 watts; average power at maximum strokes per minute is 50 watts
• Current Draw: 0.6 amps at 115 VAC; 0.3 amps at 230 VAC

Recommendations

The Pulsafeeder LD54SA-KTC2-XXX Series C PLUS is perfect for industries requiring high precision and reliability in fluid metering, such as water treatment, chemical dosing, and other critical fluid management tasks. Its advanced features, robust design, and certifications make it a trusted solution for professionals seeking durable and accurate performance.
