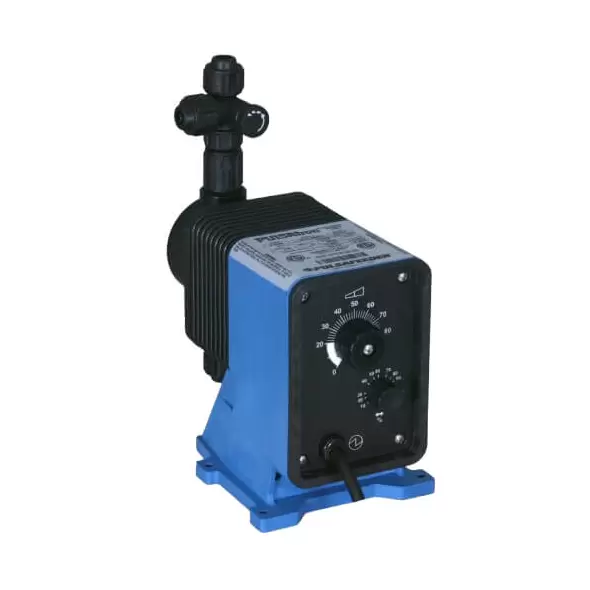

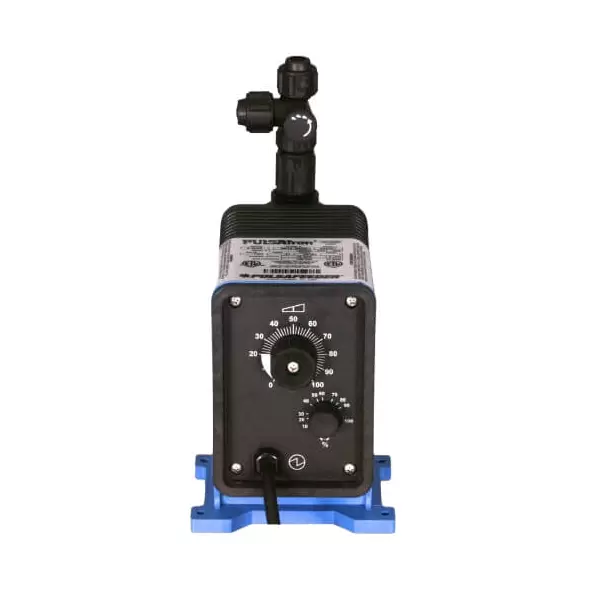

Pulsafeeder LD54SA-VVC1-XXX Series C Plus - Electronic Metering Pumps

The Pulsafeeder LD54SA-VVC1-XXX Series C PLUS is a reliable and precision-engineered electronic metering pump designed to meet the demands of industrial fluid handling. Built on the trusted PULSAtron Series C platform, the Series C PLUS offers enhanced features such as manual stroke length and stroke rate controls, with the flexibility of external pacing for automated operations. It is designed to operate efficiently under pressures up to 80 psi, with a maximum flow capacity of 30 gpd (4.7 lph), and a turndown ratio of 100:1, ensuring accurate and repeatable metering performance within +/- 3% of maximum capacity.

With state-of-the-art guided check valves for optimal priming and suction life, this pump is well-suited for a wide variety of applications. Its highly reliable timing circuit is engineered to withstand environmental and electrical disturbances, ensuring consistent performance.

Control and Automation

• Manual Control: Adjustable stroke length and stroke rate for precise fluid handling.
• Automated Functionality: External pacing option allows seamless integration into automated systems.

Performance and Model Options

• Pressure Capability: Up to 80 psi
• Flow Capacity: Up to 30 gpd (4.7 lph)
• Turndown Ratio: 100:1

Certifications and Approvals

The LD54SA-VVC1-XXX model is certified to meet the highest standards of safety and reliability:

• ETL and ETL Sanitation: Ensures compliance with electrical and sanitation safety standards.
• CE Certification: Approved for European safety and environmental standards.
• NSF 61 Certified: Suitable for potable water systems, particularly with PVDF materials and PVC Degassing Head models.

Key Features

• Highly Reliable Circuitry: Designed to operate unaffected by temperature variations, EMI, or electrical disruptions.
• Precise Metering: Stroke length and rate adjustments ensure metering reproducibility within +/- 3%.
• Safety Features: Thermal overload protection and circuit safeguards for reliable operation.
• Noise Dampening: Internally dampened system minimizes noise during operation.
• Efficient Priming System: Guided ball check valves reduce backflow and enhance suction performance.
• Water-Resistant Design: Suitable for both indoor and outdoor environments.
• Compact and Durable: Wall-mountable construction saves space and enhances durability.
• Leak-Free Bleed Valve Assembly: Ensures safe and efficient priming operations.

Technical Specifications

• Pump Head Materials: GFPPL, PVC, PVDF, 316 SS
• Fitting Materials: GFPPL, PVC, PVDF
• Bleed Valve: Matches fitting and check valve material (except 316 SS)
• Seat O-Rings: PTFE, CSPE, Viton
• Ball Materials: Ceramic, PTFE, 316 SS, Alloy C
• Diaphragms: PTFE-faced CSPE-backed
• Tubing Options: Clear PVC, White PE, PVDF
• Power Input: 115 VAC or 230 VAC, 50/60 Hz, single-phase
• Power Consumption: Peak input power of 130 watts; average power at maximum strokes per minute is 50 watts
• Current Draw: 0.6 amps at 115 VAC; 0.3 amps at 230 VAC

Recommendations

The Pulsafeeder LD54SA-VVC1-XXX Series C PLUS is ideal for industries such as water treatment, chemical dosing, and other precision fluid handling tasks. Its durable construction, advanced features, and reliable certifications make it a trusted choice for professionals seeking high performance in demanding applications.
