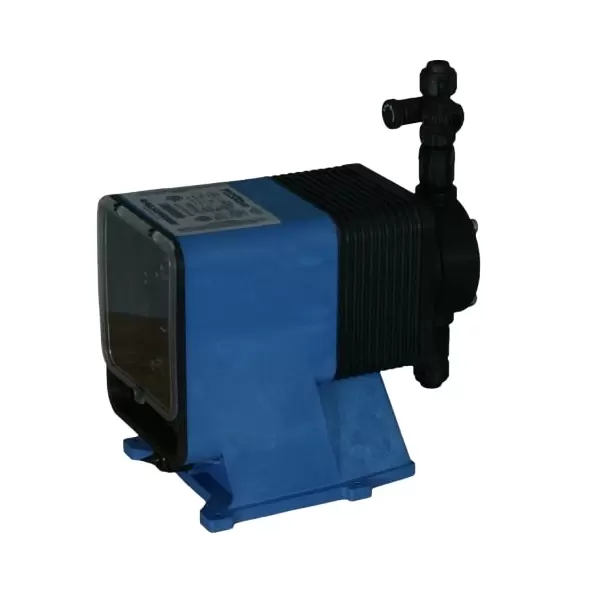

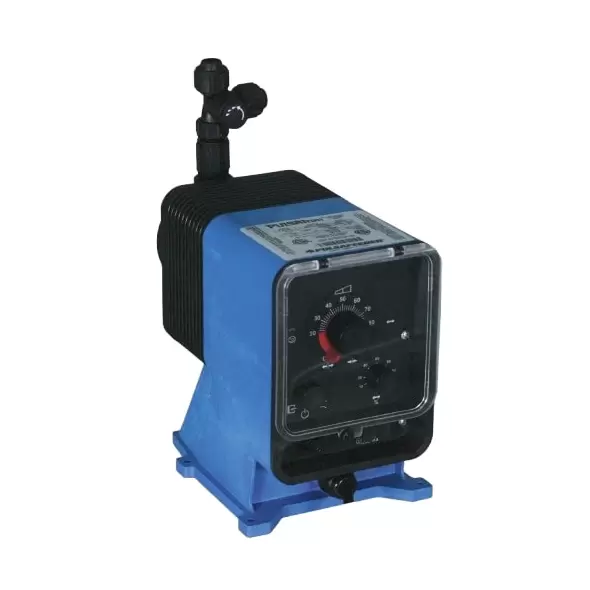

Pulsafeeder LE02SA-KTCJ-XXX Series E - Electronic Metering Pumps

The PULSAtron Series E - Electronic Metering Pump represents a high-quality solution for precise chemical dosing in various industrial applications. Known for its reliability and robust design, this pump delivers exceptional performance in demanding environments. Whether used indoors or outdoors, the Series E pump ensures consistent accuracy, flexibility, and durability. With over 25 years of trusted engineering, the Pulsafeeder Series E is a leader in the field of chemical metering.

Key Features of the PULSAtron Series E Pump

The Pulsafeeder LE02SA-KTCJ-XXX is packed with features that make it an indispensable tool for industries requiring precise dosing:

• Manual Control for Enhanced Precision The pump provides manual control through adjustable stroke rate and stroke length, allowing operators to tailor its performance to their specific requirements. This ensures accurate and reliable dosing every time.
• Impressive Pressure and Flow Capabilities With pressure capabilities of 250 psi (17 bar) and flow rates of up to 44 gpd (7 bar), this pump is designed to handle a wide range of applications. Its 100:1 turndown ratio further enhances its adaptability for varied operational needs.
• Superior Safety and Protection Mechanisms The Series E pump includes a highly reliable timing circuit, circuit protection against voltage and current fluctuations, and solenoid protection with a thermal overload auto-reset feature. These safeguards ensure safe and uninterrupted operation.
• Rugged and Durable Design Built for demanding environments, the pump is water-resistant and ideal for both indoor and outdoor use. Its guided ball check valve system minimizes backflow while enhancing priming characteristics, and the leak-free bleed valve assembly ensures safe and easy priming.
• Low Maintenance with Wall-Mountable Design The pump features few moving parts, reducing maintenance needs. Additionally, its wall-mountable design allows for easy installation and space-saving convenience.

Advanced Specifications for Reliable Operation

• Construction Materials
  • Pump Head: GFPPL, PVC, PVDF, 316 SS
  • Fittings: GFPPL, PVC, PVDF
  • Diaphragm: PTFE-faced, CSPE-backed
• Operational Efficiency
  • Turndown Ratio: 100:1
  • Seat O-Rings: PTFE, CSPE, Viton
  • Balls: Ceramic, PTFE, 316 SS, Alloy C
• Power Requirements
  • Power Input: 115 VAC or 230 VAC, 50/60 Hz, single phase
  • Peak Input Power: 300 Watts
  • Average Input Power at Max SPM: 130 Watts

Certifications and Approvals

The PULSAtron Series E pump meets stringent global standards, carrying certifications such as ETL, ETL Sanitation, CE, and NSF 61 (for PVDF material and PVC Degassing Head models). These approvals demonstrate its compliance with rigorous quality and safety requirements, making it a dependable choice for critical applications.

Applications

The versatility of the Series E pump makes it suitable for a wide range of industrial and commercial uses, including:

1. Water and wastewater treatment processes.
2. Chemical injection in agricultural operations.
3. Detergent and cleaning solutions in manufacturing.
4. Acid and alkali handling in industrial systems.
5. Precision chemical dosing in laboratory settings.

Final Words

The PULSAtron Series E - Electronic Metering Pump is a proven solution for industries requiring accurate, efficient, and durable chemical dosing systems. With advanced safety features, robust construction, and global certifications, it delivers reliable performance in even the most challenging environments. Whether for water treatment, industrial cleaning, or chemical processing, this pump ensures precision and dependability. For businesses seeking high-quality metering pumps, the Series E is a top recommendation.
