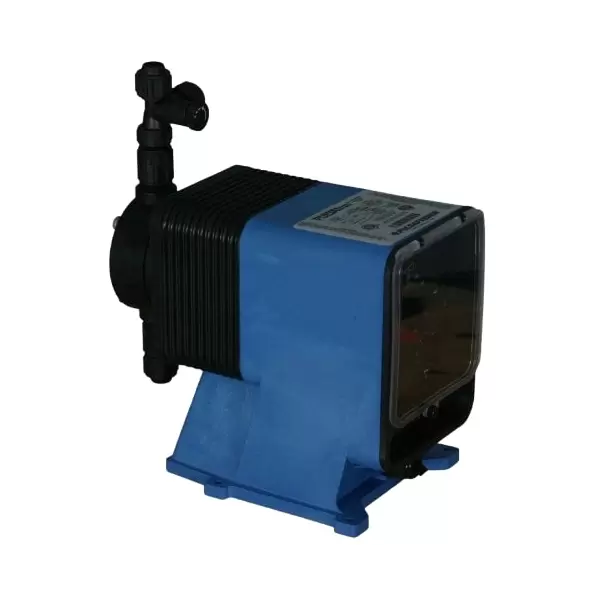

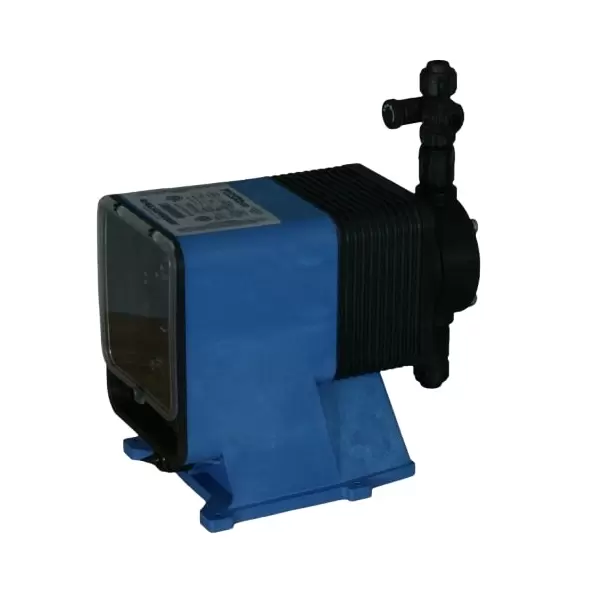

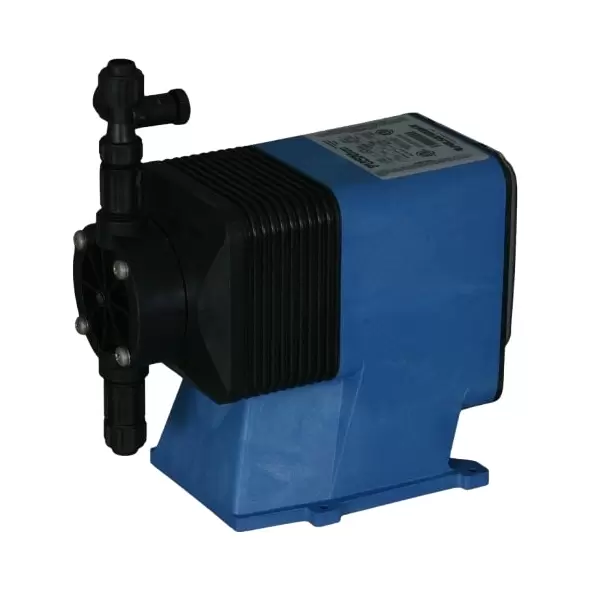

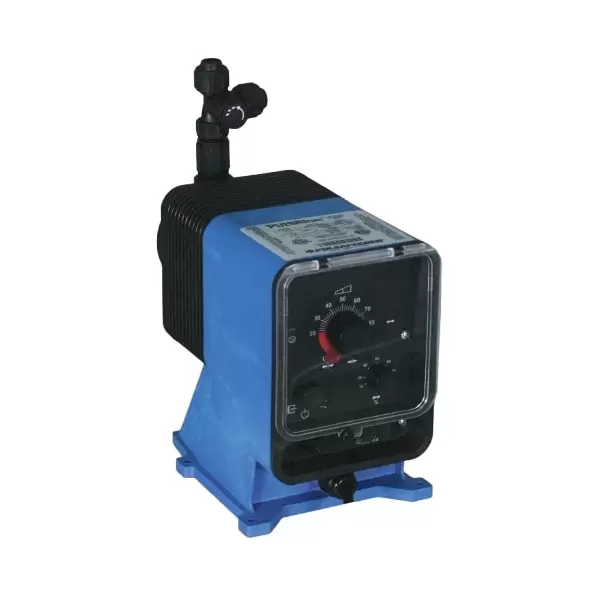

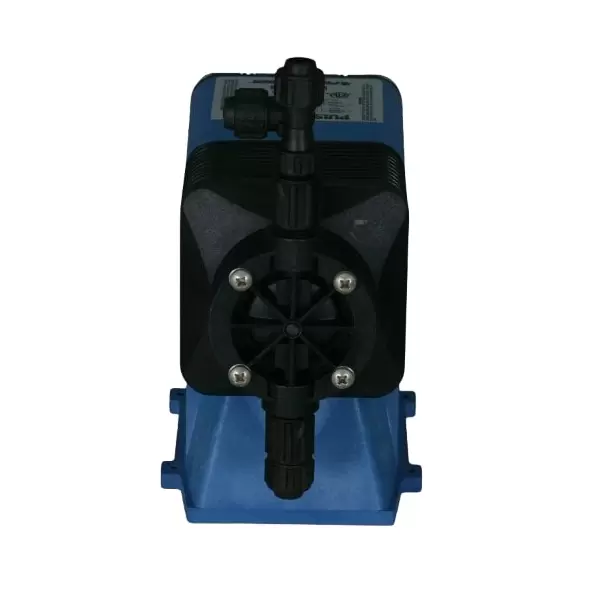

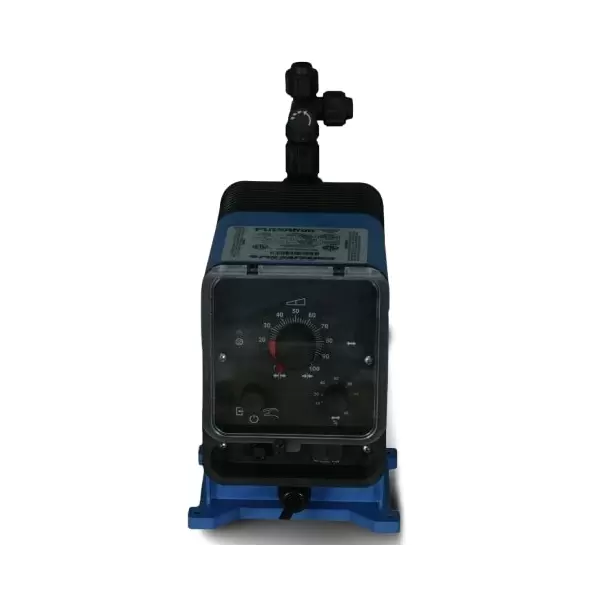

Pulsafeeder LE02SA-VTCJ-XXX Series E - Electronic Metering Pumps

The PULSAtron Series E - Electronic Metering Pump is an advanced solution for accurate and efficient chemical dosing. Built to withstand demanding environments, it combines precision, reliability, and durability to meet the needs of various industries. With over 25 years of trusted performance and global certifications, the Pulsafeeder LE02SA-VTCJ-XXX offers unmatched quality and consistency in metering applications.

Key Features of the PULSAtron Series E Pump

The Pulsafeeder LE02SA-VTCJ-XXX boasts a range of features that ensure top-tier performance in industrial and commercial applications:

• Manual Control for Fine-Tuned Operation With on-line adjustable stroke rate and stroke length, the pump provides precise control for accurate chemical dosing. This feature enhances flexibility and operational efficiency.
• Exceptional Pressure and Flow Capabilities Designed to handle pressures up to 250 psi (17 bar) and flow rates of up to 44 gpd (7 bar), the pump’s 100:1 turndown ratio ensures adaptable and precise metering.
• Reliable Safety and Protection Features Equipped with a robust timing circuit, thermal overload protection with auto-reset, and safeguards against voltage and current upsets, this pump is engineered for consistent, safe operation.
• Durable Design for Indoor and Outdoor Use The water-resistant construction ensures durability in various conditions, making it suitable for both indoor and outdoor environments. Its guided ball check valve system minimizes backflow while improving priming efficiency.
• Minimal Maintenance and User-Friendly Installation Featuring few moving parts and a wall-mountable design, the Series E pump is easy to install and maintain. Its leak-free bleed valve assembly simplifies priming, reducing operational complexity.

Technical Specifications for Superior Performance

• High-Quality Construction Materials
  • Pump Head: GFPPL, PVC, PVDF, 316 SS
  • Fittings: GFPPL, PVC, PVDF
  • Diaphragm: PTFE-faced, CSPE-backed
• Efficiency and Precision
  • Turndown Ratio: 100:1
  • Seat O-Rings: PTFE, CSPE, Viton
  • Balls: Ceramic, PTFE, 316 SS, Alloy C
• Power Requirements
  • Power Input: 115 VAC or 230 VAC, 50/60 Hz, single phase
  • Peak Input Power: 300 Watts
  • Average Input Power at Max SPM: 130 Watts

Certifications and Approvals

The PULSAtron Series E pump complies with rigorous industry standards, earning certifications including ETL, ETL Sanitation, CE, and NSF 61 (specific to PVDF material and PVC Degassing Head models). These credentials underline the pump’s reliability, safety, and quality assurance.

Applications

The versatility of the PULSAtron Series E pump makes it ideal for various industrial and commercial applications, such as:

1. Water and wastewater treatment.
2. Chemical injection in agriculture.
3. Detergent and cleaning solution metering in manufacturing.
4. Acid and alkali dosing for industrial systems.
5. Precision chemical metering in laboratory and pharmaceutical processes.

Final Words

The PULSAtron Series E - Electronic Metering Pump is a high-performance, reliable solution for industries requiring accurate and efficient chemical dosing. With robust construction, advanced safety features, and global certifications, it is a trusted choice for demanding applications. Whether for water treatment, agriculture, or industrial processes, the Pulsafeeder LE02SA-VTCJ-XXX delivers consistent performance and durability. Invest in this pump for long-term operational excellence and efficiency.
