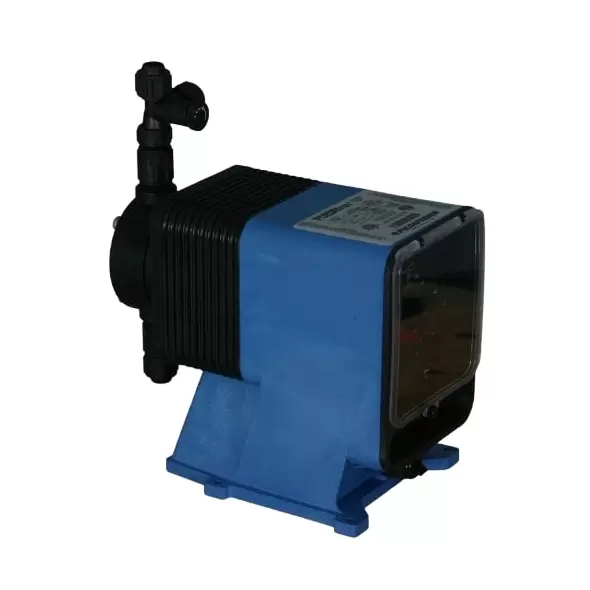

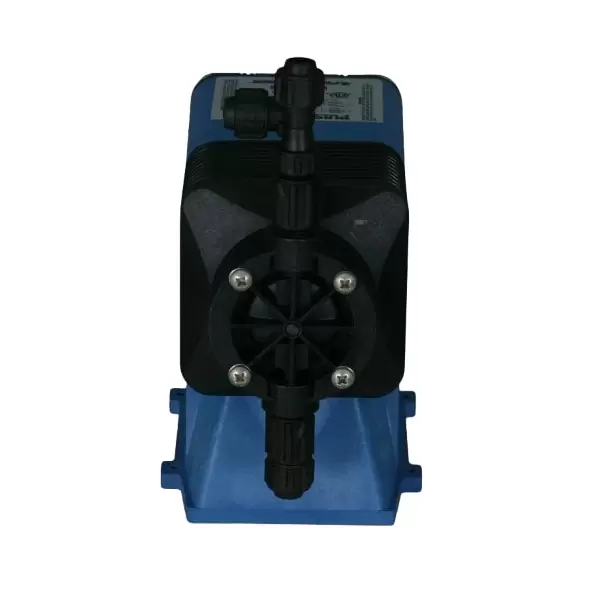

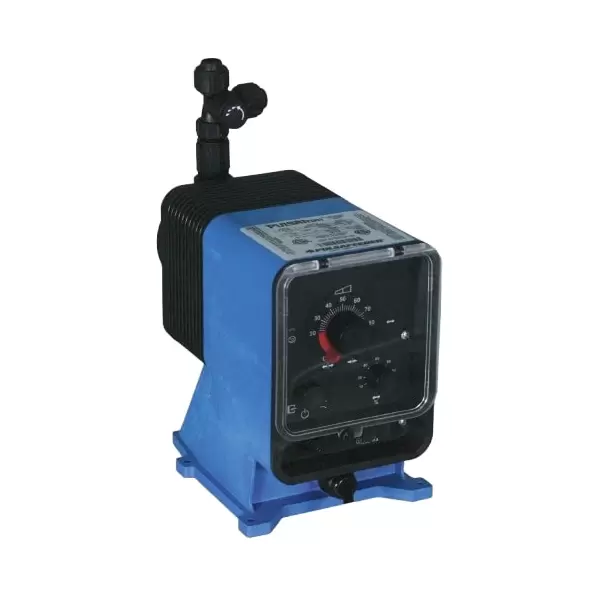

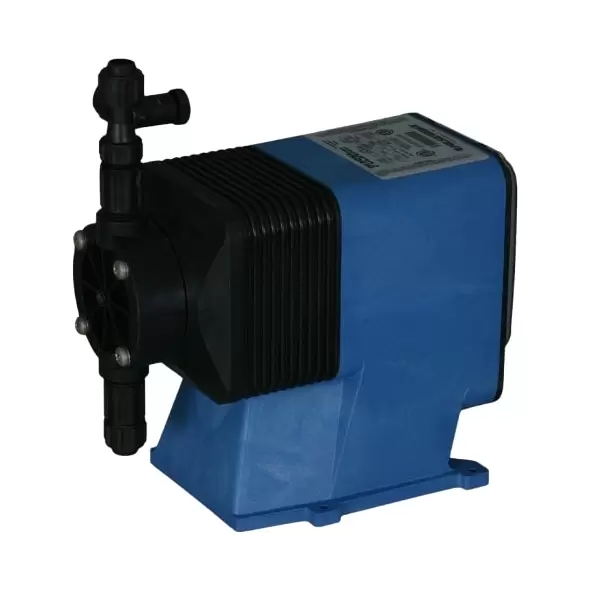

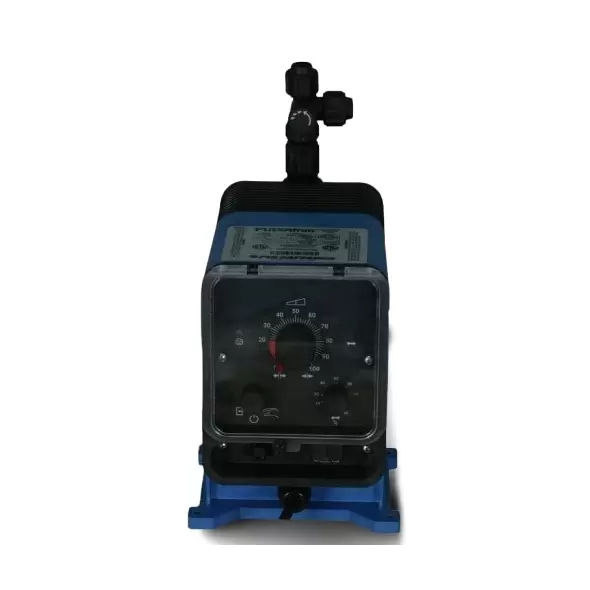

Pulsafeeder LE02SB-KTCJ-XXX Series E - Electronic Metering Pumps

The PULSAtron Series E - Electronic Metering Pump is a trusted solution for precision chemical dosing, offering superior performance and reliability for a wide range of industrial and commercial applications. Engineered to operate efficiently in both indoor and outdoor settings, this pump features advanced manual control options, robust safety mechanisms, and durable construction. With over 25 years of proven excellence, the Pulsafeeder LE02SB-KTCJ-XXX is a top choice for industries requiring accurate and consistent chemical metering.

Key Features of the PULSAtron Series E Pump

The Pulsafeeder LE02SB-KTCJ-XXX combines innovative technology and user-centric design, ensuring optimal performance:

• Manual Control for Accurate Dosing Operators can easily adjust the stroke rate and stroke length, enabling precise chemical dosing tailored to specific application needs. This flexibility ensures reliable operation in diverse environments.
• Exceptional Pressure and Flow Performance Capable of handling pressures up to 250 psi (17 bar) and flow rates up to 44 gpd (7 bar), this pump’s 100:1 turndown ratio offers exceptional versatility and adaptability.
• Robust Safety Features Equipped with a reliable timing circuit, thermal overload protection with auto-reset, and safeguards against voltage and current fluctuations, the pump ensures safe and consistent operation even under demanding conditions.
• Durable and Water-Resistant Design The water-resistant construction makes this pump ideal for both indoor and outdoor applications. Its guided ball check valve system reduces backflow and enhances priming characteristics, improving operational efficiency.
• Ease of Maintenance and Installation With few moving parts, a wall-mountable design, and a leak-free bleed valve assembly, the pump is easy to install, operate, and maintain, minimizing downtime and enhancing overall productivity.

Technical Specifications for Reliable Performance

• High-Quality Materials
  • Pump Head: GFPPL, PVC, PVDF, 316 SS
  • Fittings: GFPPL, PVC, PVDF
  • Diaphragm: PTFE-faced, CSPE-backed
• Operational Precision
  • Turndown Ratio: 100:1
  • Seat O-Rings: PTFE, CSPE, Viton
  • Balls: Ceramic, PTFE, 316 SS, Alloy C
• Power Requirements
  • Power Input: 115 VAC or 230 VAC, 50/60 Hz, single phase
  • Peak Input Power: 300 Watts
  • Average Input Power at Max SPM: 130 Watts

Certifications and Approvals

The PULSAtron Series E pump is certified by ETL, ETL Sanitation, CE, and NSF 61 (for PVDF material and PVC Degassing Head models). These certifications affirm the pump’s compliance with stringent safety and quality standards, making it suitable for critical industrial applications.

Applications

The versatility and precision of the Series E pump make it suitable for a wide range of applications, including:

• Water and wastewater treatment systems.
• Chemical injection in agricultural processes.
• Detergent and cleaning solution dosing in manufacturing.
• Acid and alkali metering in industrial systems.
• Precision chemical dosing in laboratory and pharmaceutical environments.

Final Words

The PULSAtron Series E - Electronic Metering Pump offers exceptional reliability, precision, and efficiency for chemical dosing applications. With its durable construction, advanced safety features, and manual control capabilities, it is a dependable choice for demanding industries. Backed by over 25 years of expertise and global certifications, the Pulsafeeder LE02SB-KTCJ-XXX ensures consistent and high-quality performance. For industries seeking robust and accurate dosing systems, this pump is an excellent investment.
