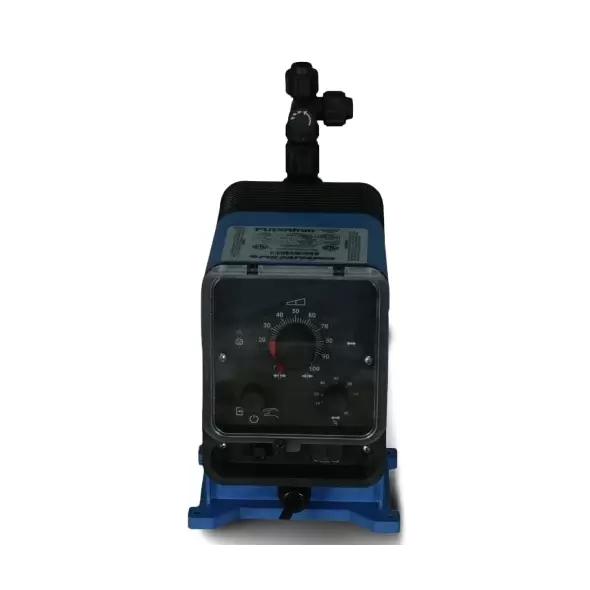

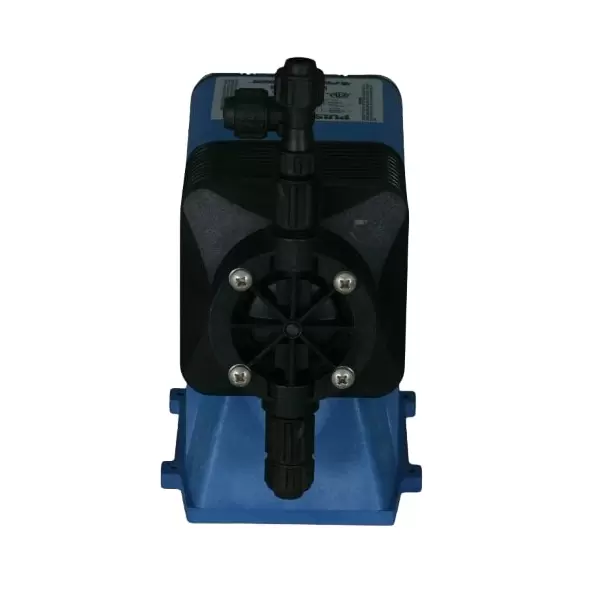

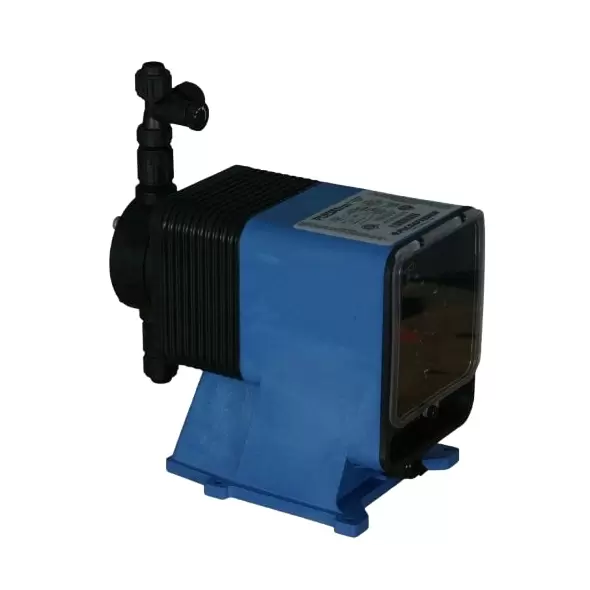

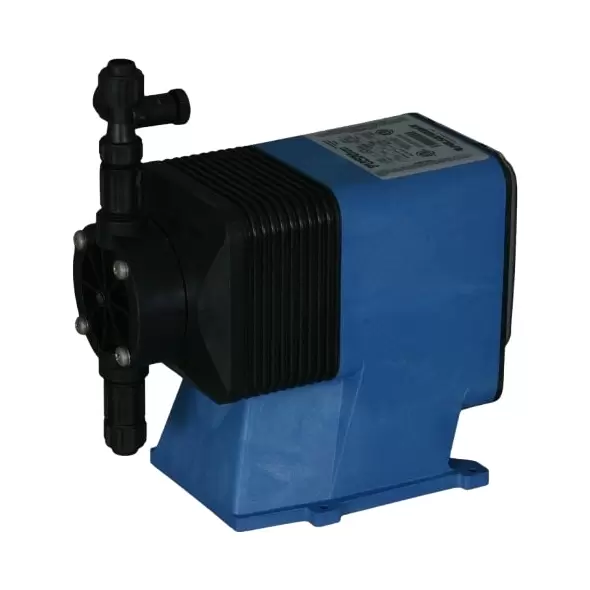

Pulsafeeder LE02SB-PTCJ-XXX Series E - Electronic Metering Pumps
In stock
0.00

Description

The PULSAtron Series E - Electronic Metering Pump is a high-performance solution tailored for precise chemical dosing applications. This robust pump is engineered to operate efficiently in both indoor and outdoor environments, ensuring long-lasting reliability and consistent results. Designed for demanding industrial and commercial needs, the Pulsafeeder LE02SB-PTCJ-XXX is backed by over 25 years of excellence, offering unmatched precision, durability, and ease of use.

Key Features of the PULSAtron Series E Pump

The Pulsafeeder LE02SB-PTCJ-XXX comes equipped with advanced features to deliver superior performance:

  • Manual Precision Control The pump offers on-line adjustable stroke rate and stroke length, providing precise control over chemical dosing. This allows operators to fine-tune performance according to specific operational requirements.
  • High Pressure and Flow Handling With pressure capabilities up to 250 psi (17 bar) and flow rates of 44 gpd (7 bar), the pump’s 100:1 turndown ratio ensures flexibility and adaptability across various applications.
  • Enhanced Safety and Protection Mechanisms Built with a reliable timing circuit, thermal overload protection with auto-reset, and safeguards against voltage and current fluctuations, this pump guarantees consistent and safe operation even in challenging conditions.
  • Water-Resistant and Durable Design The pump’s water-resistant construction makes it suitable for both indoor and outdoor use. Its guided ball check valve system reduces backflow and enhances priming, ensuring efficient and reliable operation.
  • Low Maintenance and Easy Installation With minimal moving parts and a wall-mountable design, the Series E pump simplifies installation and reduces maintenance needs. Its durable leak-free bleed valve assembly ensures safe and hassle-free priming.

Technical Specifications for Superior Performance

  • High-Quality Construction Materials
    • Pump Head: GFPPL, PVC, PVDF, 316 SS
    • Fittings: GFPPL, PVC, PVDF
    • Diaphragm: PTFE-faced, CSPE-backed
  • Operational Efficiency
    • Turndown Ratio: 100:1
    • Seat O-Rings: PTFE, CSPE, Viton
    • Balls: Ceramic, PTFE, 316 SS, Alloy C
  • Power Requirements
    • Power Input: 115 VAC or 230 VAC, 50/60 Hz, single phase
    • Peak Input Power: 300 Watts
    • Average Input Power at Max SPM: 130 Watts

Certifications and Approvals

The PULSAtron Series E pump is certified by ETL, ETL Sanitation, CE, and NSF 61 (specific to PVDF material and PVC Degassing Head models). These certifications underscore the pump’s compliance with global safety and quality standards, ensuring its reliability for critical applications.

Applications

The versatility and durability of the Series E pump make it ideal for various industrial and commercial applications, including:

  • Water and wastewater treatment systems.
  • Agricultural chemical injection and fertilizer dosing.
  • Detergent and cleaning solution metering in manufacturing.
  • Acid and alkali dosing in industrial systems.
  • Precision chemical dosing in laboratory and pharmaceutical processes.

Final Words

The PULSAtron Series E - Electronic Metering Pump is a robust and reliable solution for industries requiring accurate chemical dosing systems. With advanced manual control, durable construction, and certified safety features, this pump ensures consistent performance in even the most demanding environments. Backed by decades of proven excellence, the Pulsafeeder LE02SB-PTCJ-XXX delivers exceptional value and operational efficiency. It is the preferred choice for industries seeking precision, durability, and reliability in metering pumps.
