Description

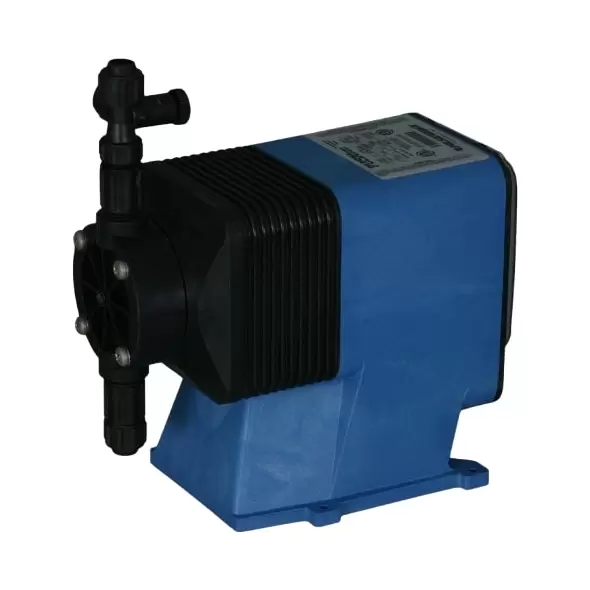

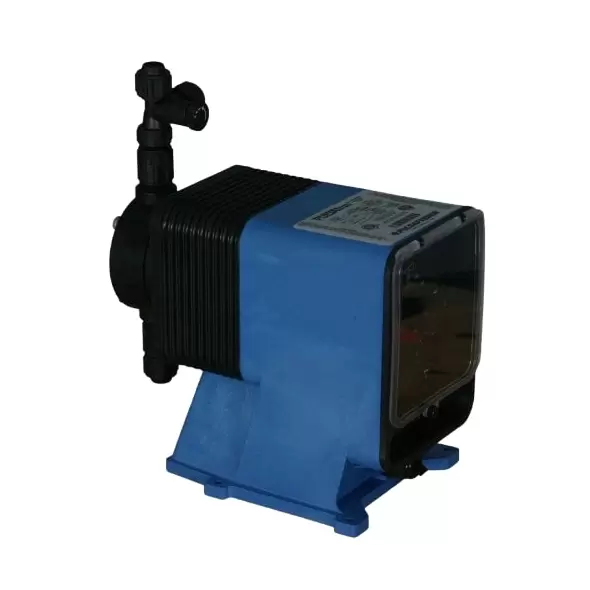

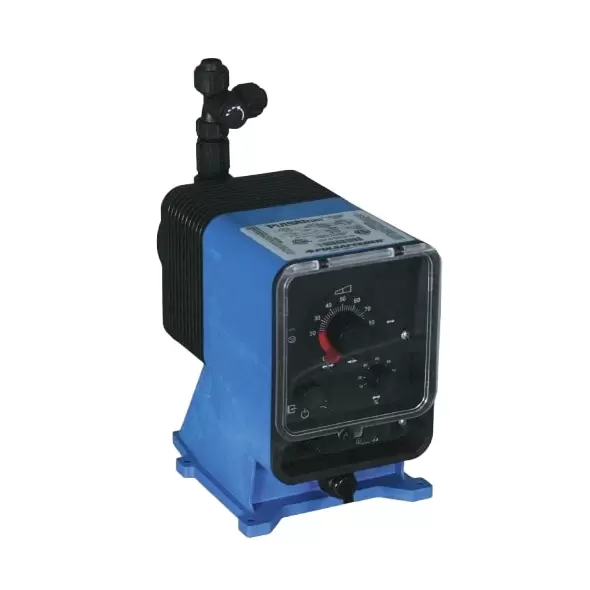

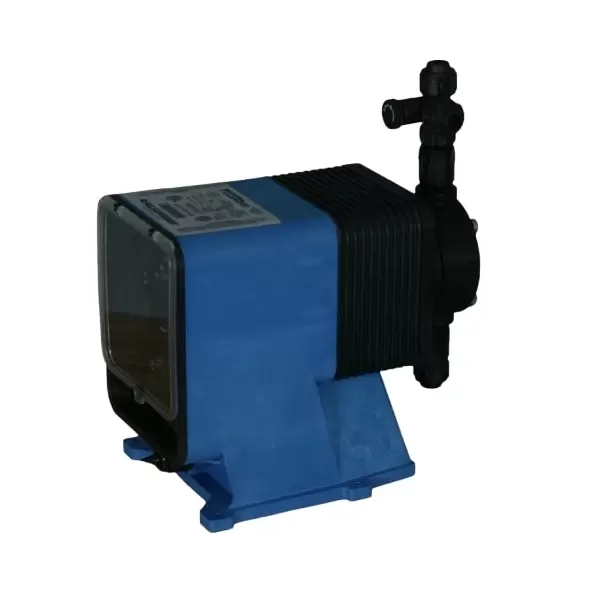

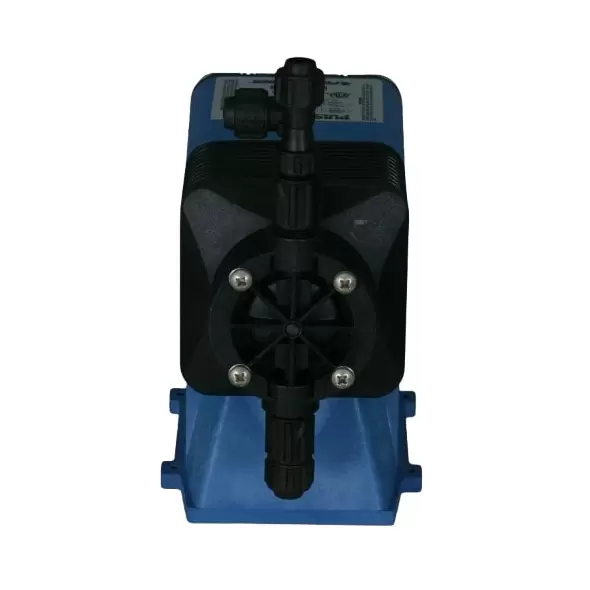

The Pulsafeeder LPA2SA-PTCJ-XXX PULSAtron Series E Plus is an industrial-grade metering pump designed to deliver unmatched precision and reliability. Engineered for adaptability, it offers both manual and automatic control options to meet the diverse needs of industrial applications. With over 25 years of proven excellence, the Series E Plus ensures consistent performance and robust durability.
Flexible Control Options
This pump provides flexibility with manual and automatic operation modes. Users can manually adjust stroke length and rate for fine-tuned control or integrate the pump into automated systems using 4-20mA or external pacing inputs. Its impressive 100:1 turndown ratio ensures suitability across a wide range of industrial applications.
Reliable Performance and Accuracy
The PULSAtron Series E Plus offers superior metering accuracy, with performance reproducible to within ± 2% of maximum capacity. With pressure capabilities of up to 300 psi (21 bar) at 3 gpd (0.5 lph) and maximum flow capacities of 600 gpd (94.6 lph) at 30 psi (2 bar), this pump is ideal for precision-demanding environments.
Certified Quality and Durability
Certified by ETL, ETL Sanitation, CE, and NSF 61 (for specific models), the PULSAtron Series E Plus meets stringent safety and quality standards. Its rugged design and water-resistant construction make it suitable for both indoor and outdoor applications.
Key Features
- Versatile Operation: Offers manual and 4-20mA external pacing control.
- Safety Measures: Equipped with thermal overload protection and auto-reset for solenoid longevity.
- Circuit Protection: Guards against voltage and current disruptions for enhanced reliability.
- Leak-Free Priming: Durable bleed valve assembly ensures safe and efficient operation.
- Enhanced Priming: Guided ball check valves minimize backflow and optimize priming.
- Weather-Resistant Design: Water-resistant construction for robust indoor and outdoor use.
- User-Friendly Interface: Auto-off-manual switch and indicator lights for simplified operation.
- Material Options: Constructed with GFPPL, PVC, PVDF, and 316 SS for industrial versatility.
Specifications
- Pump Head Materials: GFPPL, PVC, PVDF, 316 SS.
- Fitting Materials: Available in GFPPL, PVC, PVDF.
- Bleed Valve Material: Matches fitting and check valve material (excluding 316 SS).
- Diaphragm Construction: PTFE-faced with CSPE backing for durability.
- Valve Balls: Options include Ceramic, PTFE, 316 SS, Alloy C.
- Seat O-Rings: Available in PTFE, CSPE, and Viton.
- Tubing Materials: Clear PVC, White PE, PVDF.
- Turndown Ratio: 100:1 for adaptability.
- Power Input: Operates at 115 VAC or 230 VAC, 50/60 Hz, single-phase.
- Power Consumption: Peak input power of 300 Watts; average power at maximum strokes per minute is 130 Watts.
- Current Draw: 1.0 Amps (115 VAC) or 0.5 Amps (230 VAC).
Recommendation
The Pulsafeeder LPA2SA-PTCJ-XXX PULSAtron Series E Plus is the ultimate choice for precision, reliability, and versatility in metering applications. Its advanced features, robust construction, and certifications make it an invaluable tool for industries requiring accurate and consistent performance. Invest in this pump for long-term efficiency and operational excellence.
