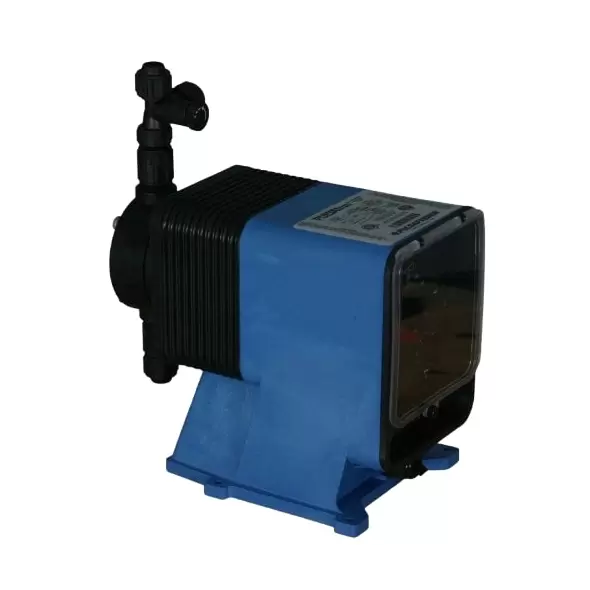

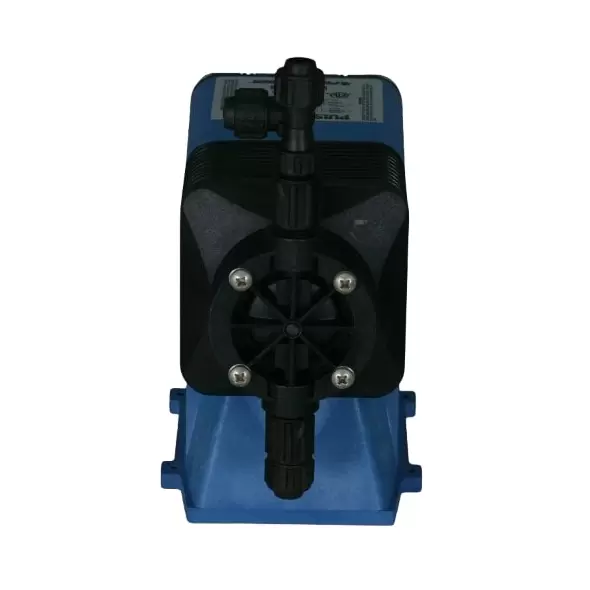

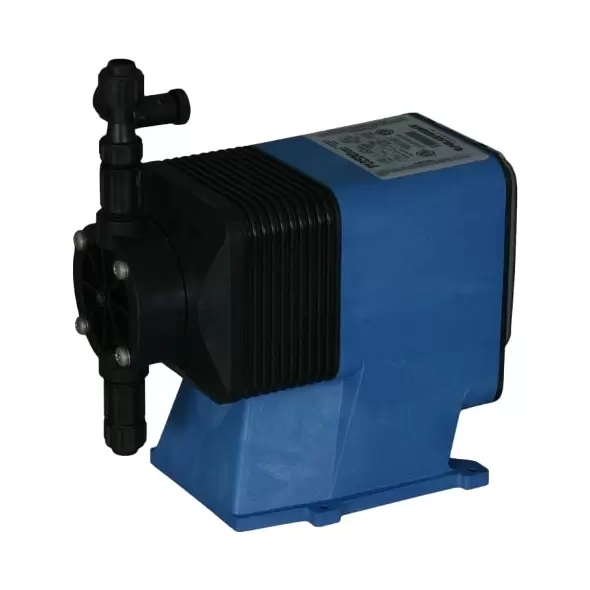

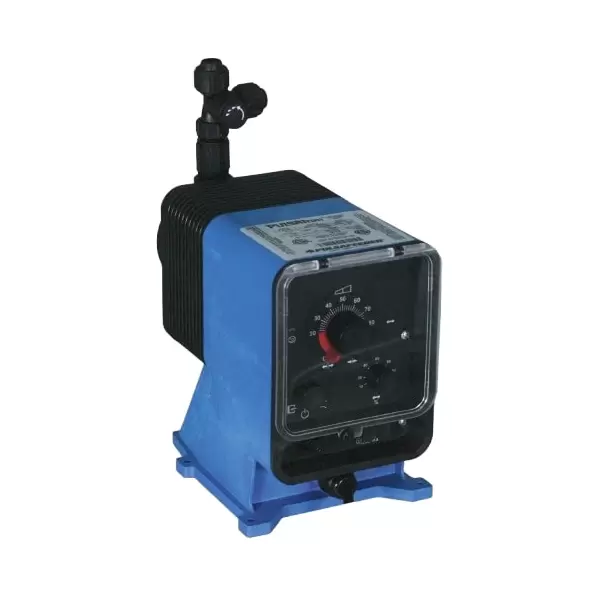

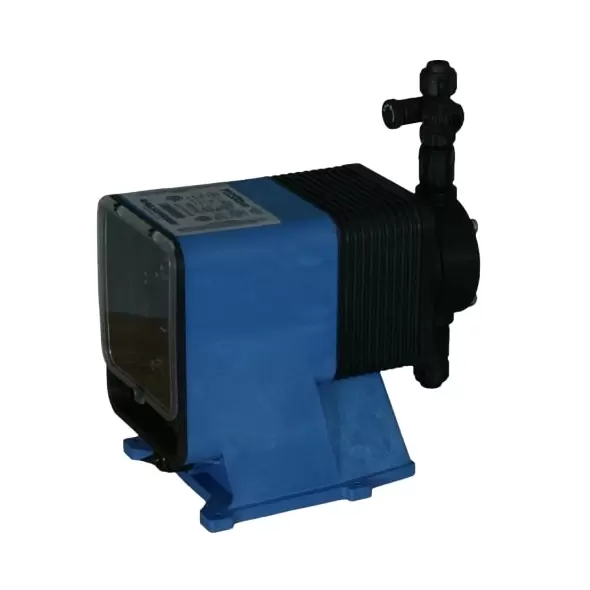

Pulsafeeder LPA2SA-PTSA-XXX Pulsatron Series E Plus

The Pulsafeeder LPA2SA-PTSA-XXX PULSAtron Series E Plus is a state-of-the-art metering pump designed for reliability, precision, and adaptability. With manual and automatic control options, robust construction, and excellent metering accuracy, this pump is ideal for demanding industrial applications. Its certifications and decades of proven performance make it a trusted solution for diverse operational needs.

Advanced Control Options

The PULSAtron Series E Plus offers both manual and automatic control capabilities. Users can adjust stroke length and stroke rate manually for real-time customization or utilize 4-20mA and external pacing inputs for seamless automated operation. Its 100:1 turndown ratio further enhances versatility, allowing precise adjustments for various applications.

Precision Performance

Engineered for consistency and accuracy, the PULSAtron Series E Plus delivers performance reproducible to within ± 2% of maximum capacity. It boasts pressure capabilities of up to 300 psi (21 bar) at 3 gpd (0.5 lph) and flow capacities of up to 600 gpd (94.6 lph) at 30 psi (2 bar), making it highly suitable for critical industrial processes requiring exacting standards.

Certified Durability and Safety

With certifications including ETL, ETL Sanitation, CE, and NSF 61 (for PVDF material and PVC Degassing Head models), this pump adheres to stringent quality and safety standards. Its durable design ensures reliable performance in both indoor and outdoor settings.

Key Features

• Flexible Control: Manual stroke adjustments and 4-20mA external pacing inputs for customizable operation.
• Safety Features: Thermal overload protection with automatic reset safeguards the solenoid.
• Enhanced Circuitry: Circuit protection against voltage and current disruptions ensures reliability.
• Efficient Priming: Leak-free bleed valve and guided ball check valves optimize performance.
• Weather-Resistant Design: Water-resistant construction supports both indoor and outdoor applications.
• User-Friendly Interface: Includes an auto-off-manual switch and panel-mounted indicator lights.
• Robust Construction: Built with high-quality materials, including GFPPL, PVC, PVDF, and 316 SS.
• Certified Quality: Meets ETL, CE, and NSF 61 standards for safety and reliability.

Specifications

• Pump Head Materials: GFPPL, PVC, PVDF, 316 SS.
• Fitting Materials: GFPPL, PVC, PVDF options available.
• Bleed Valve Material: Matches fitting and check valve material (except 316 SS).
• Diaphragm Material: PTFE-faced with CSPE backing for durability.
• Valve Balls: Available in Ceramic, PTFE, 316 SS, Alloy C.
• Seat O-Rings: Options include PTFE, CSPE, and Viton.
• Tubing Materials: Clear PVC, White PE, PVDF.
• Turndown Ratio: 100:1 for flexible operation.
• Power Input: 115 VAC or 230 VAC, 50/60 Hz, single-phase.
• Power Consumption: Peak input power of 300 Watts; average power at maximum strokes per minute is 130 Watts.
• Current Draw: 1.0 Amps (115 VAC) or 0.5 Amps (230 VAC).

Recommendation

The Pulsafeeder LPA2SA-PTSA-XXX PULSAtron Series E Plus combines cutting-edge features, exceptional performance, and certified reliability to deliver unmatched versatility in industrial metering applications. Whether you need precision, safety, or adaptability, this pump offers an efficient and durable solution tailored to your needs.
