Pulsafeeder LPA2SA-VHC1-XXX Pulsatron Series E Plus

In stock
0.00
LPA2SA-VHC1-XXX
Request Quote

Shipping & Policies

Estimated Delivery This delivery estimate is based on the time it will take for the seller to ship out your order and for the carrier to deliver it.
Ships from United States

Sold by Cannon Water Technology

Returns: 30 days refund/replacement You can return any item within 30 days of delivery for a full refund or replacement, as long as it's unused and in its original packaging. Some products may be subject to restocking fees—see our return policy for full details.

Payment: Secure Transaction All payments are handled via industry-standard encryption and fraud protection. Your card details are never stored by us, and you’re covered by buyer-protection policies for a worry-free checkout.

  • Dual Control Modes: Offers manual and 4-20mA external pacing options.
  • High Pressure: Handles up to 300 psi (21 bar) with precision.
  • Generous Flow Rate: Delivers up to 600 gpd (94.6 lph) at 30 psi.
  • Accurate Performance: Reproducible metering within ± 2% of maximum capacity.
  • Certified Quality: ETL, CE, and NSF 61 standards for safety and reliability.
  • Durable Construction: Water-resistant for indoor and outdoor use.
  • Efficient Priming: Leak-free bleed valve and guided ball check systems.
  • Robust Safety: Includes thermal overload protection and circuit safeguards.
  • Material Options: Available in GFPPL, PVC, PVDF, and 316 SS materials.

Tell us what you need

Banner Image

SELL MORE
WITH GROWCYCLE

Join as a seller and connect with thousands of B2B buyers nationwide!

Sign Up

+
Pulsafeeder LPA2SA-VHC1-XXX Pulsatron Series E Plus
In stock
0.00

Description

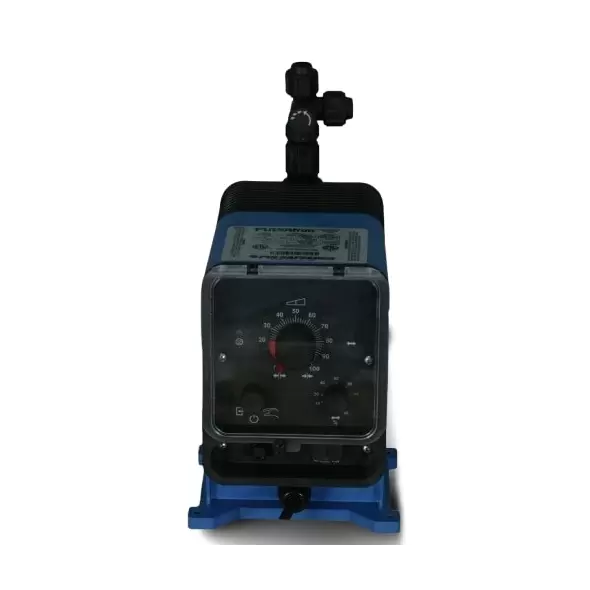

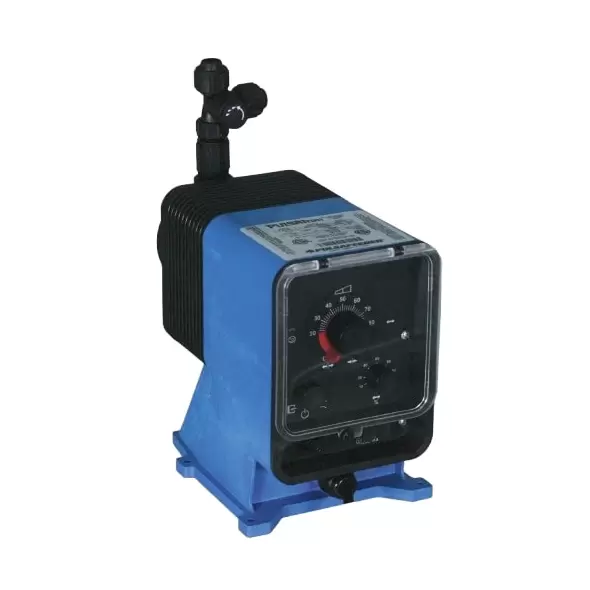

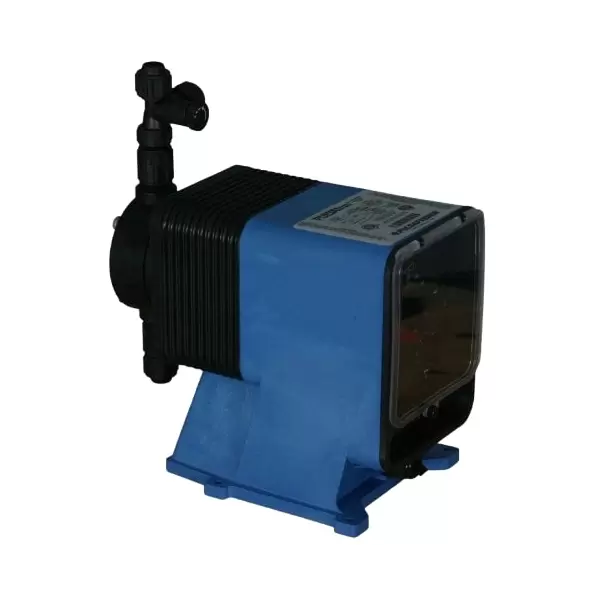

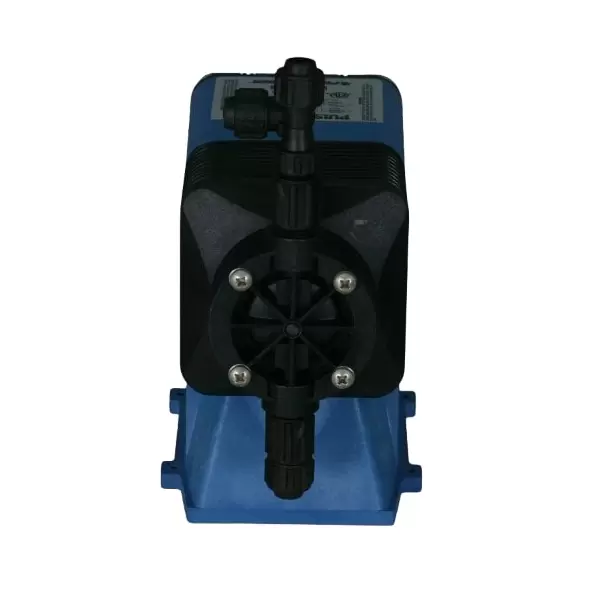

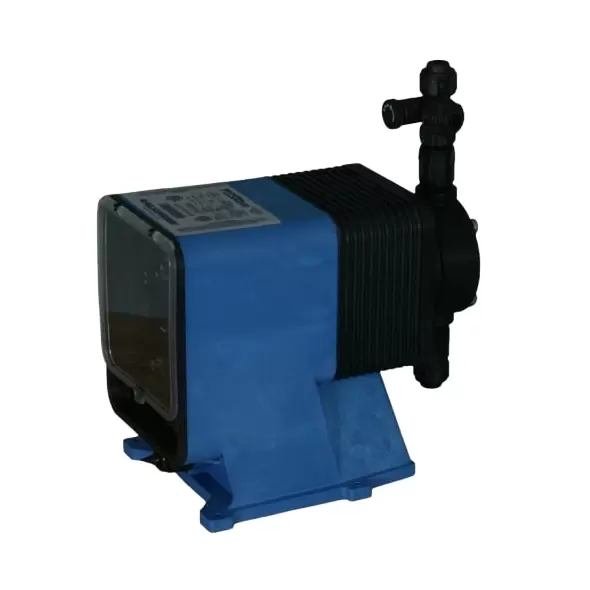

The Pulsafeeder LPA2SA-VHC1-XXX PULSAtron Series E Plus is a versatile and reliable metering pump designed for precision and efficiency. Its robust design, certified quality, and advanced control options make it an essential tool for demanding industrial applications. This pump combines manual and automatic controls, ensuring adaptability for a wide range of operational requirements.

Exceptional Control Options

The PULSAtron Series E Plus offers manual control over stroke length and stroke rate, allowing on-the-spot adjustments. For automated processes, the pump supports 4-20mA and external pacing inputs with a stop function. The turndown ratio of 100:1 enhances its adaptability, enabling precise metering across various industrial tasks.

High-Performance Metering

Built to deliver reliable and accurate performance, this pump offers pressure capabilities of up to 300 psi (21 bar) at 3 gpd (0.5 lph) and flow capacities of up to 600 gpd (94.6 lph) at 30 psi (2 bar). Metering accuracy is reproducible within ± 2% of maximum capacity, ensuring consistent and precise output for critical operations.

Certified Quality and Durability

With over 25 years of proven excellence, the PULSAtron Series E Plus meets rigorous safety and quality standards. Certified by ETL, ETL Sanitation, CE, and NSF 61 (for PVDF and PVC Degassing Head models), it ensures reliable and safe operation in diverse environments.

Key Features

  • Dual Control Modes: Manual adjustments and 4-20mA external pacing for operational flexibility.
  • Safety Features: Includes thermal overload protection with auto-reset for solenoid safety.
  • Robust Circuitry: Circuit protection guards against voltage and current disruptions.
  • Efficient Priming: Features a leak-free bleed valve and guided ball check valves to enhance priming performance.
  • Weather-Resistant Design: Suitable for both indoor and outdoor use with water-resistant construction.
  • User-Friendly Interface: Equipped with an auto-off-manual switch and panel-mounted indicator lights.
  • Material Versatility: Available in GFPPL, PVC, PVDF, and 316 SS to suit a variety of applications.
  • Certified Standards: Meets ETL, CE, and NSF 61 standards for safety and reliability.

Specifications

  • Pump Head Materials: GFPPL, PVC, PVDF, 316 SS.
  • Fitting Materials: GFPPL, PVC, PVDF.
  • Bleed Valve Material: Matches fitting and check valve material (excluding 316 SS).
  • Diaphragm Material: PTFE-faced with CSPE backing for enhanced durability.
  • Valve Balls: Available in Ceramic, PTFE, 316 SS, Alloy C.
  • Seat O-Rings: Options include PTFE, CSPE, and Viton.
  • Tubing Materials: Clear PVC, White PE, PVDF.
  • Turndown Ratio: 100:1 for flexible operations.
  • Power Input: Compatible with 115 VAC or 230 VAC, 50/60 Hz, single-phase.
  • Power Consumption: Peak input power of 300 Watts; average power at maximum strokes per minute is 130 Watts.
  • Current Draw: 1.0 Amps (115 VAC) or 0.5 Amps (230 VAC).

Recommendation

The Pulsafeeder LPA2SA-VHC1-XXX PULSAtron Series E Plus offers a blend of precision, reliability, and versatility for industrial metering needs. With its advanced features, certified quality, and robust design, this pump is the ideal solution for achieving consistent and efficient performance in demanding environments.
