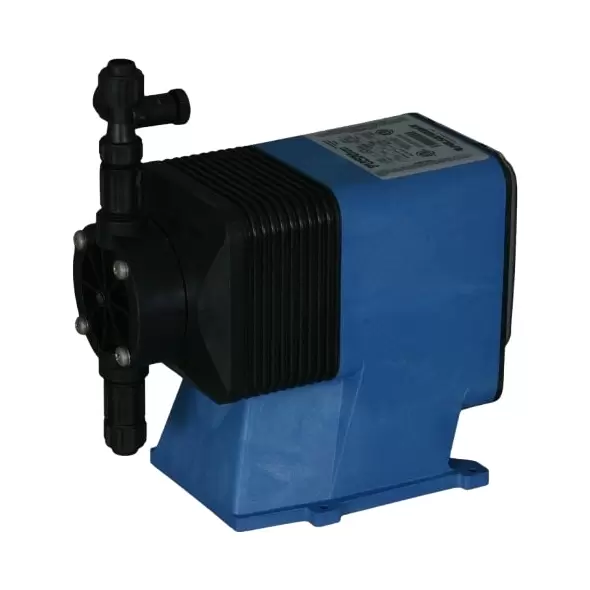

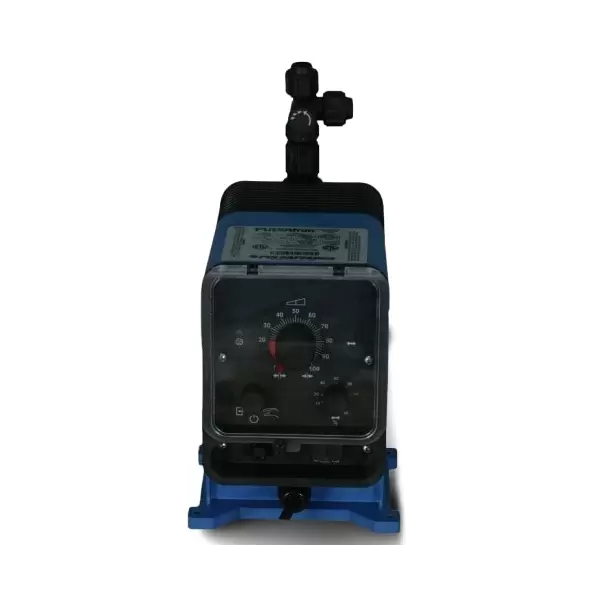

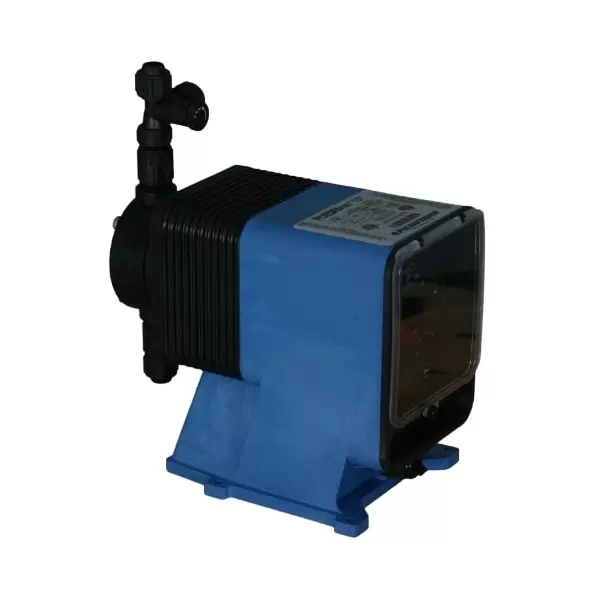

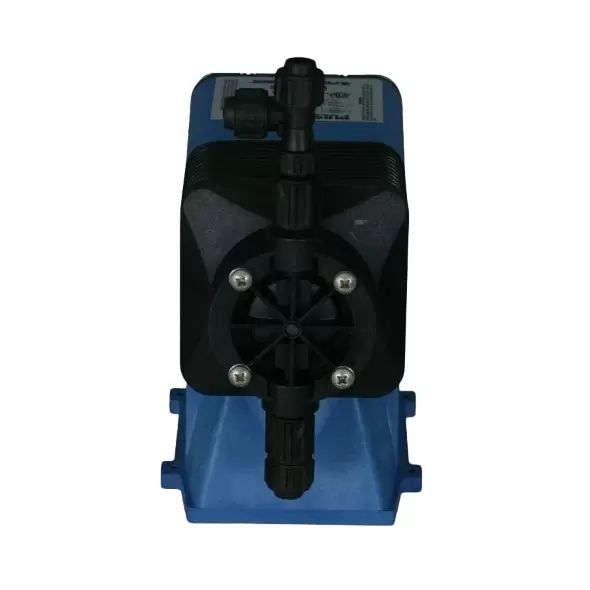

Pulsafeeder LPA3MA-VTC1-XXX Pulsatron Series E Plus

In stock
0.00
LPA3MA-VTC1-XXX
Request Quote

Shipping & Policies

Estimated Delivery This delivery estimate is based on the time it will take for the seller to ship out your order and for the carrier to deliver it.
Ships from United States

Sold by Cannon Water Technology

Returns: 30 days refund/replacement You can return any item within 30 days of delivery for a full refund or replacement, as long as it's unused and in its original packaging. Some products may be subject to restocking fees—see our return policy for full details.

Payment: Secure Transaction All payments are handled via industry-standard encryption and fraud protection. Your card details are never stored by us, and you’re covered by buyer-protection policies for a worry-free checkout.

  • Dual Control Options: Supports manual and 4-20mA automatic control.
  • High Pressure Capability: Handles up to 300 psi (21 bar) with precise metering.
  • Generous Flow Capacity: Delivers up to 600 gpd (94.6 lph) at 30 psi.
  • Reliable Accuracy: Ensures reproducible performance within ± 2% of capacity.
  • Certified Design: Compliant with ETL, CE, and NSF 61 safety standards.
  • Durable Construction: Water-resistant for indoor and outdoor use.
  • Efficient Priming: Leak-free bleed valve and advanced ball check systems.
  • Safety Features: Thermal overload protection and circuit safeguards.
  • Material Flexibility: Compatible with GFPPL, PVC, PVDF, and 316 SS materials.

Tell us what you need

Banner Image

SELL MORE
WITH GROWCYCLE

Join as a seller and connect with thousands of B2B buyers nationwide!

Sign Up

+
Pulsafeeder LPA3MA-VTC1-XXX Pulsatron Series E Plus
In stock
0.00

Description

The Pulsafeeder LPA3MA-VTC1-XXX PULSAtron Series E Plus offers a powerful combination of precision, durability, and versatility for industrial applications. Its advanced manual and automatic control options make it adaptable to a wide range of operational needs, ensuring reliable and accurate metering. Built on over 25 years of excellence, this pump is certified to meet stringent safety and quality standards.

Advanced Control Options

This model features both manual and automatic control capabilities. Users can easily adjust stroke length and stroke rate manually or opt for automation using the 4-20mA external pacing inputs. The 100:1 turndown ratio allows for precise adjustments, making it suitable for tasks requiring varying flow and pressure levels.

High-Performance Metering

Engineered for reliability, this pump delivers pressure capabilities of up to 300 psi (21 bar) at 3 gpd (0.5 lph) and flow rates of up to 600 gpd (94.6 lph) at 30 psi (2 bar). Its metering accuracy, reproducible within ± 2% of maximum capacity, ensures consistent performance for critical operations.

Certified Quality and Durability

The PULSAtron Series E Plus is certified by ETL, ETL Sanitation, CE, and NSF 61 for specific PVDF and PVC models. These certifications guarantee compliance with global safety and reliability standards. Its water-resistant design supports both indoor and outdoor applications, enhancing versatility and robustness.

Key Features

  • Flexible Operation: Dual control modes with manual adjustments and 4-20mA external pacing.
  • Safety Mechanisms: Includes thermal overload protection with automatic reset for solenoid longevity.
  • Reliable Circuitry: Safeguarded against voltage and current disruptions for continuous operation.
  • Efficient Priming: Leak-free bleed valve and guided ball check valves enhance priming performance.
  • Weather-Resistant Design: Durable and water-resistant for various environments.
  • User-Friendly Interface: Features panel-mounted indicator lights and an auto-off-manual switch.
  • Material Options: Available in GFPPL, PVC, PVDF, and 316 SS for compatibility with diverse industrial needs.
  • Certified Standards: Meets ETL, CE, and NSF 61 certifications for safety and quality assurance.

Specifications

  • Pump Head Materials: GFPPL, PVC, PVDF, 316 SS.
  • Fitting Materials: GFPPL, PVC, PVDF.
  • Bleed Valve Material: Matches fitting and check valve material (excluding 316 SS).
  • Diaphragm Material: PTFE-faced with CSPE backing for extended durability.
  • Valve Balls: Options include Ceramic, PTFE, 316 SS, Alloy C.
  • Seat O-Rings: Available in PTFE, CSPE, Viton.
  • Tubing Materials: Clear PVC, White PE, PVDF.
  • Turndown Ratio: 100:1 for operational flexibility.
  • Power Input: Operates on 115 VAC or 230 VAC, 50/60 Hz, single-phase.
  • Power Consumption: Peak input power of 300 Watts; average power at maximum strokes per minute is 130 Watts.
  • Current Draw: 1.0 Amps (115 VAC) or 0.5 Amps (230 VAC).

Recommendation

The Pulsafeeder LPA3MA-VTC1-XXX PULSAtron Series E Plus offers unmatched precision and reliability for industrial metering applications. Its advanced features, certified quality, and robust design make it an essential tool for ensuring consistent and accurate performance. Whether for automated systems or manual operation, this pump delivers dependable results tailored to your industrial needs.
