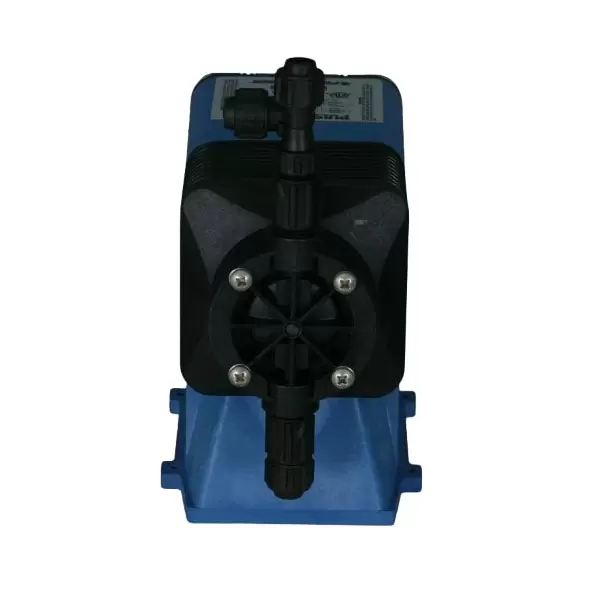

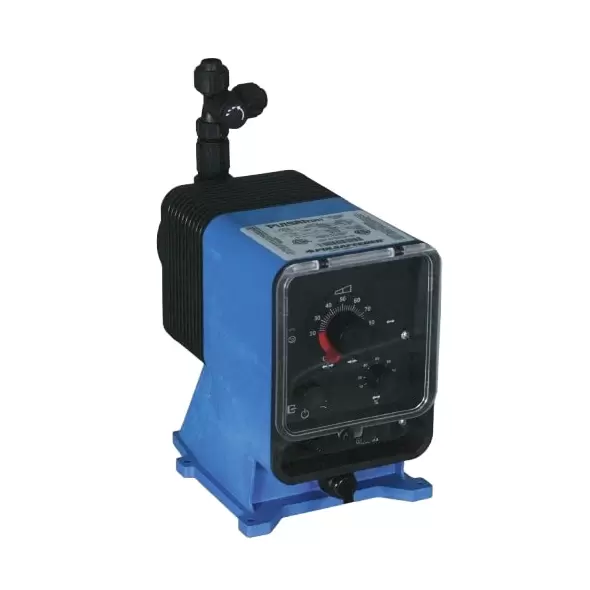

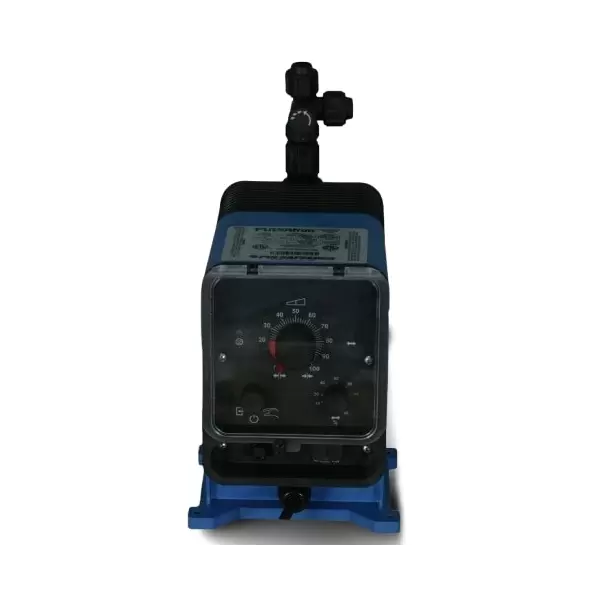

Pulsafeeder LPA3MB-VTC1-500 Pulsatron Series E Plus

In stock
0.00
LPA3MB-VTC1-500
Request Quote

Shipping & Policies

Estimated Delivery This delivery estimate is based on the time it will take for the seller to ship out your order and for the carrier to deliver it.
Ships from United States

Sold by Cannon Water Technology

Returns: 30 days refund/replacement You can return any item within 30 days of delivery for a full refund or replacement, as long as it's unused and in its original packaging. Some products may be subject to restocking fees—see our return policy for full details.

Payment: Secure Transaction All payments are handled via industry-standard encryption and fraud protection. Your card details are never stored by us, and you’re covered by buyer-protection policies for a worry-free checkout.

  • Flexible Control: Supports manual adjustments and 4-20mA automatic control.
  • High Pressure Capability: Handles up to 300 psi (21 bar) with precision.
  • Generous Flow Rate: Delivers up to 600 gpd (94.6 lph) at 30 psi.
  • Reliable Accuracy: Reproducible metering within ± 2% of maximum capacity.
  • Certified Quality: Meets ETL, CE, and NSF 61 safety and reliability standards.
  • Durable Design: Water-resistant for indoor and outdoor use.
  • Efficient Priming: Leak-free bleed valve and advanced ball check systems.
  • Safety Features: Includes thermal overload protection and circuit safeguards.
  • Material Options: Compatible with GFPPL, PVC, PVDF, and 316 SS materials.

Tell us what you need

Banner Image

SELL MORE
WITH GROWCYCLE

Join as a seller and connect with thousands of B2B buyers nationwide!

Sign Up

+
Pulsafeeder LPA3MB-VTC1-500 Pulsatron Series E Plus
In stock
0.00

Description

The Pulsafeeder LPA3MB-VTC1-500 PULSAtron Series E Plus offers a reliable, precise, and adaptable solution for industrial metering needs. Combining advanced manual and automatic control capabilities with robust construction and certified quality, this pump is an ideal choice for a wide range of applications. With over 25 years of proven excellence, the Series E Plus ensures consistent and accurate performance.

Flexible and Precise Control

This pump features manual and automatic control options for enhanced flexibility. Operators can manually adjust stroke length and rate for customized operation or integrate automated processes using 4-20mA external pacing inputs. The 100:1 turndown ratio ensures adaptability for diverse flow and pressure requirements.

High-Performance Metering

Designed for reliability, this pump delivers pressure capabilities of up to 300 psi (21 bar) at 3 gpd (0.5 lph) and flow rates reaching 600 gpd (94.6 lph) at 30 psi (2 bar). Its metering accuracy, reproducible to within ± 2% of maximum capacity, ensures consistent results in critical industrial processes.

Certified Durability and Safety

The PULSAtron Series E Plus is certified by ETL, ETL Sanitation, CE, and NSF 61 (for specific PVDF and PVC models). These certifications guarantee compliance with global safety standards. Additionally, its water-resistant construction enhances durability, supporting both indoor and outdoor applications.

Key Features

  • Dual Control Modes: Manual stroke adjustments and 4-20mA external pacing for flexible operation.
  • Safety Mechanisms: Includes thermal overload protection with automatic reset to safeguard the solenoid.
  • Reliable Circuitry: Protection against voltage and current disruptions ensures uninterrupted operation.
  • Priming Excellence: Features a leak-free bleed valve and guided ball check valves to enhance priming performance.
  • Weather-Resistant Design: Suitable for both indoor and outdoor environments.
  • User-Friendly Interface: Equipped with an auto-off-manual switch and panel-mounted indicator lights for ease of operation.
  • Material Flexibility: Available in GFPPL, PVC, PVDF, and 316 SS to meet various industrial requirements.
  • Certified Quality: Complies with ETL, CE, and NSF 61 standards for safety and reliability.

Specifications

  • Pump Head Materials: GFPPL, PVC, PVDF, 316 SS.
  • Fitting Materials: GFPPL, PVC, PVDF.
  • Bleed Valve Material: Matches fitting and check valve material (excluding 316 SS).
  • Diaphragm Material: PTFE-faced with CSPE backing for enhanced durability.
  • Valve Balls: Options include Ceramic, PTFE, 316 SS, Alloy C.
  • Seat O-Rings: Available in PTFE, CSPE, Viton.
  • Tubing Materials: Clear PVC, White PE, PVDF.
  • Turndown Ratio: 100:1 for adaptable performance.
  • Power Input: Operates on 115 VAC or 230 VAC, 50/60 Hz, single-phase.
  • Power Consumption: Peak input power of 300 Watts; average power at maximum strokes per minute is 130 Watts.
  • Current Draw: 1.0 Amps (115 VAC) or 0.5 Amps (230 VAC).

Recommendation

The Pulsafeeder LPA3MB-VTC1-500 PULSAtron Series E Plus is a high-precision, durable metering pump tailored to industrial applications. Its advanced control options, certified reliability, and consistent performance make it an essential tool for achieving operational efficiency. Whether for automated or manual processes, this pump delivers dependable results for demanding environments.
