Pulsafeeder LPB2MA-KTCJ-130 Pulsatron Series E Plus
In stock
0.00

Description

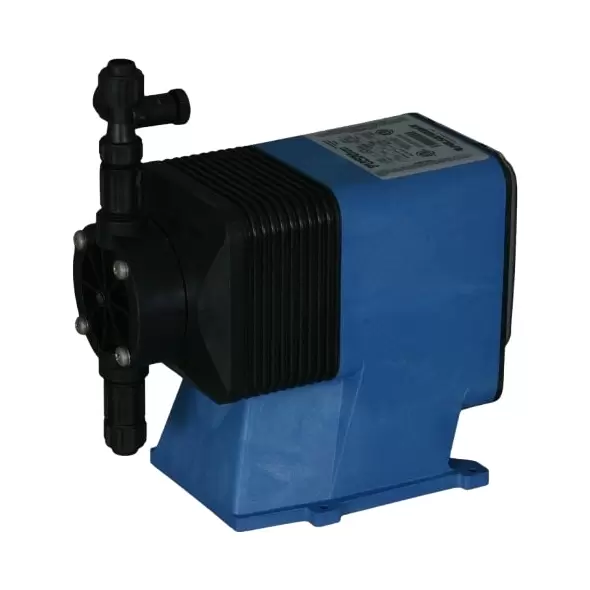

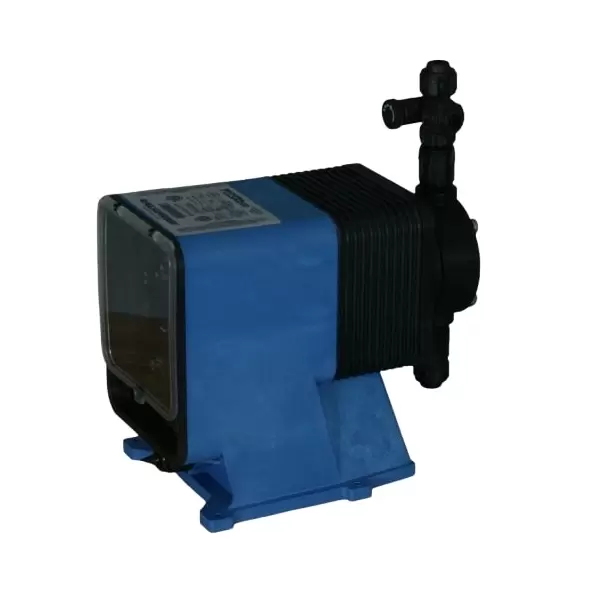

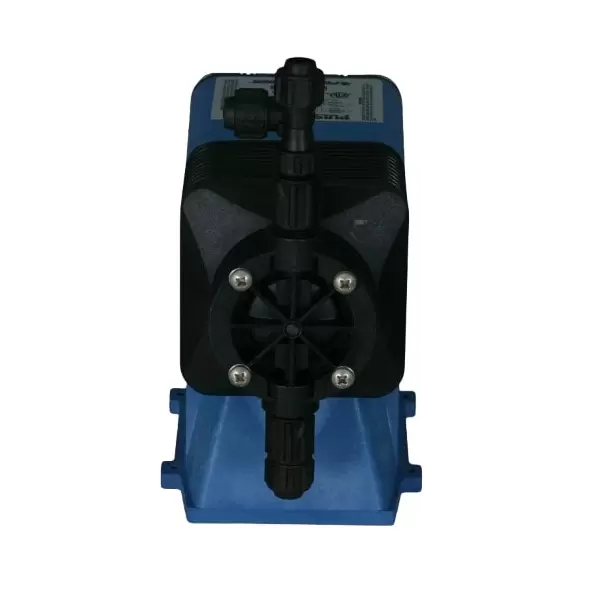

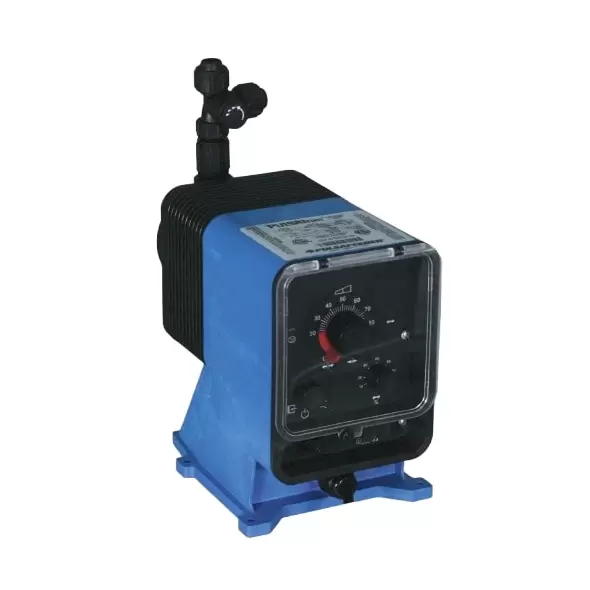

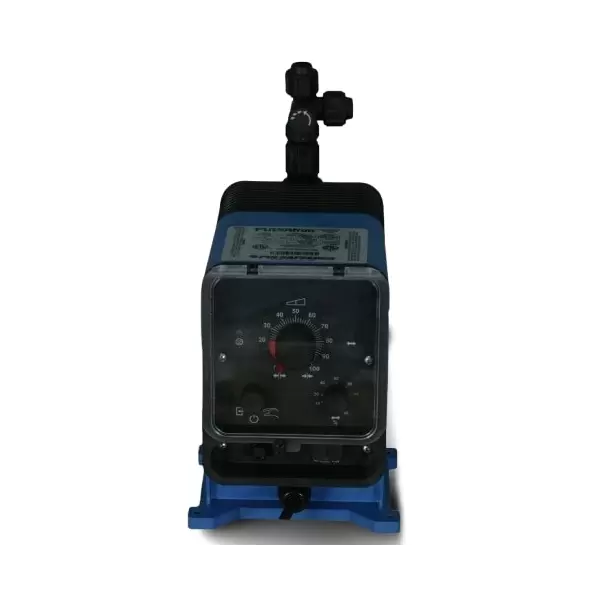

The Pulsafeeder LPB2MA-KTCJ-130 PULSAtron Series E Plus is a state-of-the-art metering pump designed for precision, flexibility, and durability. Engineered to meet the demands of industrial environments, this pump provides consistent performance, advanced control options, and certified reliability.

Flexible Control Options

The LPB2MA-KTCJ-130 features both manual and automatic operation modes to suit varying application needs. Adjust stroke length and rate manually for precise customization or utilize the 4-20mA external pacing input for seamless automation. The 100:1 turndown ratio ensures precise performance across diverse flow and pressure requirements.

Unmatched Accuracy and Performance

Capable of handling pressures up to 300 psi (21 bar) at 3 gpd (0.5 lph) and flow rates of 600 gpd (94.6 lph) at 30 psi (2 bar), this pump delivers metering accuracy reproducible within ± 2% of maximum capacity. It is a dependable solution for critical industrial operations requiring consistent and precise fluid management.

Certified Quality and Durability

With over 25 years of proven excellence, the PULSAtron Series E Plus is certified by ETL, ETL Sanitation, CE, and NSF 61 (specific PVDF and PVC models). Its water-resistant design enhances durability, ensuring reliable operation in both indoor and outdoor environments.

Key Features

  • Dual Control Modes: Manual adjustments and 4-20mA external pacing for flexible operation.
  • Reliable Safety Mechanisms: Thermal overload protection with auto-reset ensures solenoid longevity.
  • Efficient Circuit Protection: Safeguards against voltage and current upsets ensure consistent operation.
  • Enhanced Priming: Leak-free bleed valve and guided ball check valves reduce backflow and improve priming efficiency.
  • Weather-Resistant Design: Suitable for indoor and outdoor industrial environments.
  • User-Friendly Interface: Includes an auto-off-manual switch and panel-mounted indicator lights for ease of use.
  • Material Versatility: Available in GFPPL, PVC, PVDF, and 316 SS to accommodate various fluids.
  • Certified Standards: Meets ETL, CE, and NSF 61 certifications for performance and safety.

Specifications

  • Pump Head Materials: GFPPL, PVC, PVDF, 316 SS.
  • Fitting Materials: GFPPL, PVC, PVDF.
  • Bleed Valve Material: Matches fitting and check valve material (excluding 316 SS).
  • Diaphragm Material: PTFE-faced with CSPE backing for enhanced durability.
  • Valve Balls: Ceramic, PTFE, 316 SS, Alloy C options.
  • Seat O-Rings: Available in PTFE, CSPE, Viton.
  • Tubing Materials: Clear PVC, White PE, PVDF.
  • Turndown Ratio: 100:1 for adaptable performance.
  • Power Input: Operates on 115 VAC or 230 VAC, 50/60 Hz, single-phase.
  • Power Consumption: Peak input power of 300 Watts; average power at maximum strokes per minute is 130 Watts.
  • Current Draw: 1.0 Amps (115 VAC) or 0.5 Amps (230 VAC).

Recommendation

The Pulsafeeder LPB2MA-KTCJ-130 PULSAtron Series E Plus is a high-quality, versatile metering pump engineered for precision and durability. Its advanced features, certified safety, and flexible control options make it the perfect solution for critical fluid management in industrial environments. Whether for manual or automated systems, this pump ensures efficient, reliable performance tailored to your specific needs.
