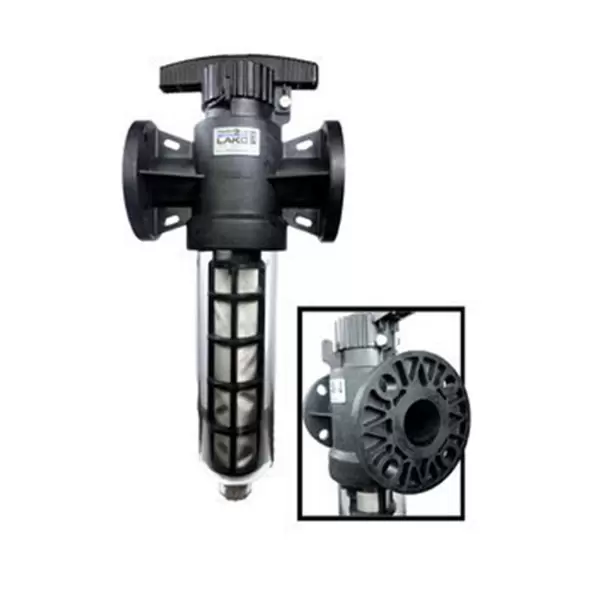

Twist II Clean Inline Filter - 60# Mesh - 250 Micron - 2" Flanged Inlet/Outlet - 3/4" MPT Purge Outlet

The Twist II Clean series from Cannon Water Technologies offers a revolutionary approach to solid filtration, combining efficiency, ease of use, and cost-effectiveness. Designed to protect water systems from damage caused by suspended solids and sediments, these inline filters are essential for maintaining equipment integrity and ensuring injector warranty compliance. With its patented filter technology, the Twist II Clean allows for quick, five-second cleaning without the need for disassembly. At half the cost of automatic backflushing systems, this product stands out as the most economical manual backflush solution on the market. Additionally, there are no costly cartridges to replace, making it a sustainable choice.

Key Features of the Twist II Clean Filter

• Quick and Easy Cleaning: Simply twist the filter to clean it, no disassembly required.
• Flow Capacity: 0-150 GPM.
• Pressure Rating: Maximum operating pressure of 100 PSI at 73°F.
• Temperature Range: Operates effectively between 32°F and 120°F.
• Connection Design: 4-bolt flange inlet/outlet with a 3/4" MPT purge outlet.
• Leak-Free Operation: Patented design ensures no leaks or water messes during cleaning.
• Self-Cleaning Action: Innovative cleaning mechanism reduces maintenance effort.
• Non-Disruptive Maintenance: No need to depressurize the system during cleaning.

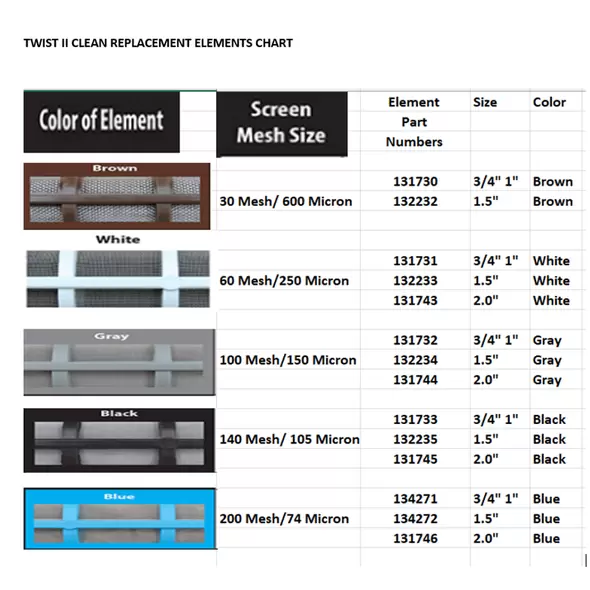

• Replaceable Mesh Filter Cartridges: Available in various sizes to suit diverse applications.
• Durable Construction: Resistant to corrosion due to aluminum structure and plastic pallet.

Note: The filter ships with a manually operated ball valve for installation on the drain port, which isolates the filter during maintenance cycles.

Applications and Success Stories

Location: Italy – Irrigation Drip Tape Filtration

Review: This inline battery filter was prepared for a dealer specializing in irrigation drip tape. Farmers with small fields often rely on portable pumps and filters that can be easily moved between fields. The Twist II Clean system, mounted on a plastic pallet with an aluminum frame, offers a lightweight, corrosion-resistant solution. Unlike traditional filters that require pump stoppage for cleaning, this system eliminates downtime by allowing cleaning without halting water flow. For higher flow rates (up to 330 GPM or more), additional filters can be added.

Location: Nevada – Process Water for PVC Extrusion Line

Review: Two Twist II Clean 2" Lakos filters were installed in parallel to manage process water in a PVC extrusion line calibration tank. These filters allow for on-the-fly cleaning twice daily without production downtime. After a year of continuous use, the filters have maintained sprayers, tubes, and shell heat exchangers without a single issue. This product is highly recommended for similar applications or any setting requiring efficient and reliable filtration.

Maintenance and Installation Guidelines

To maximize the performance and lifespan of the Twist II Clean filter:

• Lubricate O-Rings: Before installation, apply an approved lubricant such as DOW Corning 111 "MOLYKOTE" to prevent damage to the filter element.
• System Preparation: Ensure the ball valve is installed on the drain port for isolating the filter during maintenance.
• Cleaning Process: Simply twist the filter to activate the self-cleaning mechanism, eliminating downtime and ensuring smooth operations.

Benefits of Twist II Clean Filters

• Cost-Effective: Lower cost compared to automatic backflushing systems.
• Time-Saving: Five-second cleaning reduces labor time and system disruptions.
• Eco-Friendly: Reusable mesh cartridges eliminate the need for expensive disposable cartridges.
• Versatile: Suitable for irrigation systems, industrial process water management, and more.
• Reliable Performance: Proven effectiveness in various industries, with real-world testimonials supporting its durability and functionality.

Recommendations

The Twist II Clean Inline Filter is an exceptional choice for professionals seeking a reliable, cost-efficient, and easy-to-maintain filtration system. Whether for agricultural irrigation, industrial processes, or portable pump setups, this filter delivers outstanding performance and convenience. Pair it with appropriate lubricants and installation practices to achieve optimal results.
