EZ AIR Sub-Canopy System
The EZ Air presents a fully adaptable and personalized sub-canopy airflow solution ideal for both multi-tier and single-tier cultivation setups.
Key Features:
- Enhances photosynthesis and effectively reduces powdery mildew and botrytis pressure by directing fresh, CO2-rich air directly under the canopy.
- Can be configured for both sub-canopy and above-canopy airflow.
- Options for single, double, or quad runs for each tier.
- Complete adjustability of mounting hardware along the x, y, and z axes, allowing for greater flexibility in various planting densities.
- Utilizes an 8” 735 CFM inline fan for powerful airflow.
Benefits:
- Improves photosynthesis by thinning the leaf boundary-layer and increasing CO2 diffusion into the leaf.
- Prevents powdery mildew and botrytis by maintaining optimal airflow.
Specifications:
- Material exposed to plants: Polypropylene tubing – 2mil
- UL certified components: 8" Inline fan, On/Off Switch
- Voltage: 120 VAC
- Amps: 1.6 Amps
- Watts: 205 Watts
- CFM: 735 CFM
- RPM: 2450 RPM
Airflow Details:
- Utilizes 6" polyethylene duct with 1/2" holes spaced every 6" at the ten and two positions.
- Airflow measured at up to 4 meters per second at each hole and up to 2 meters per second when measuring the airflow 2 feet away from the duct.
Included Components:
- Each unit comes with 40' of tubing.
Dimensions:
- Single Fan:
- Weight: 11 lbs.
- Assembled Dimensions: 24" x 24" x 12"
- Ship Dimensions: 16" x 16" x 24"
- Single Fan with Mounts:
- Weight: 27 lbs.
- Assembled Dimensions: 48" x 30" x 24"
- Ship Dimensions (Box 1): 16" x 16" x 24"
- Ship Dimensions (Box 2): 52" x 8" x 8"

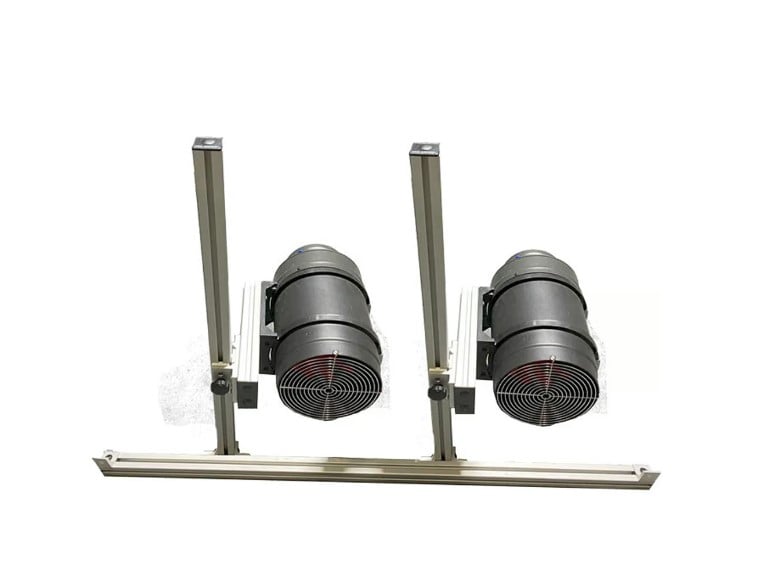

- Double Fan with Mounts:
- Weight: 45 lbs.
- Assembled Dimensions: 48" x 30" x 24"
- Ship Dimensions (Box 1): 24" x 24" x 12"
- Ship Dimensions (Box 2): 52" x 8" x 8"
