EZ AIR - 40' Single Air Tube & Adjustable Mounts - EZ TRIM HARVESTING

In stock
0.00
(0 reviews) Write a review
$99900
Contact Supplier
Request Bulk Order Quote Chat Now

Key Features:

  • Configurable for sub-canopy and above-canopy airflow
  • Options for single, double, or quad runs for each tier
  • Complete adjustability of mounting hardware on the x, y, and z axes
  • Utilizes an 8" 735 CFM inline fan for efficient airflow

Tell us what you need

Reviews

Average Star Rating:
0.00 (0 reviews Total)
  • 5 stars
    0
  • 4 stars
    0
  • 3 stars
    0
  • 2 stars
    0
  • 1 star
    0
Have you used the product?
Tell us something about it and help others make the right decision
Show reviews with:
5 stars (0 reviews)
4 stars (0 reviews)
3 stars (0 reviews)
2 stars (0 reviews)
1 star (0 reviews)

No reviews found

Description

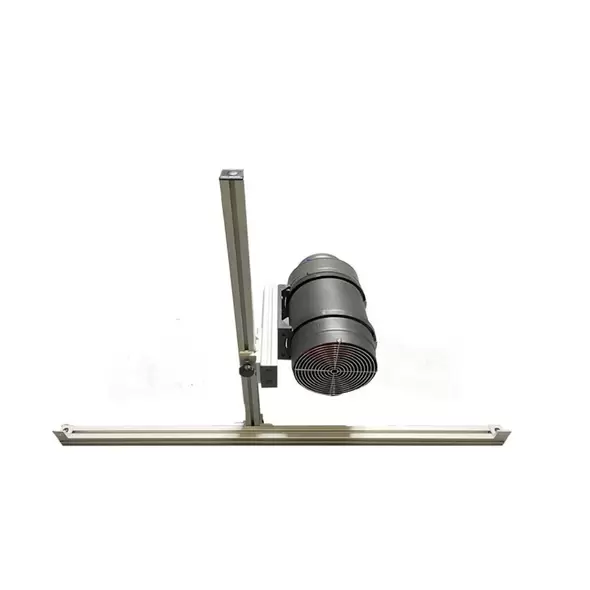

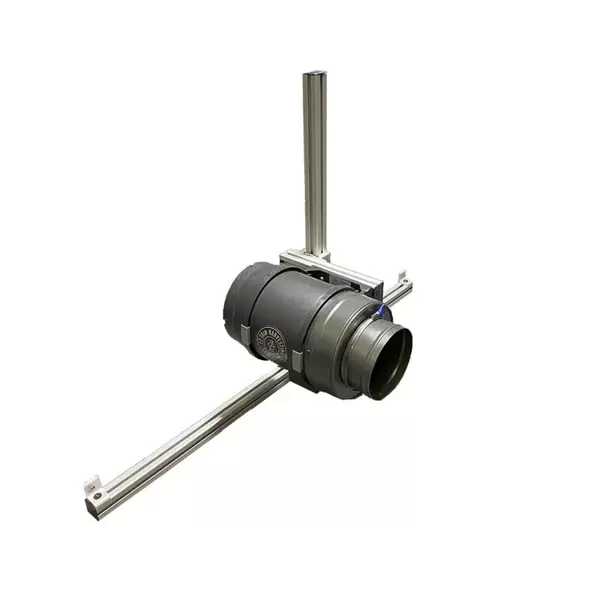

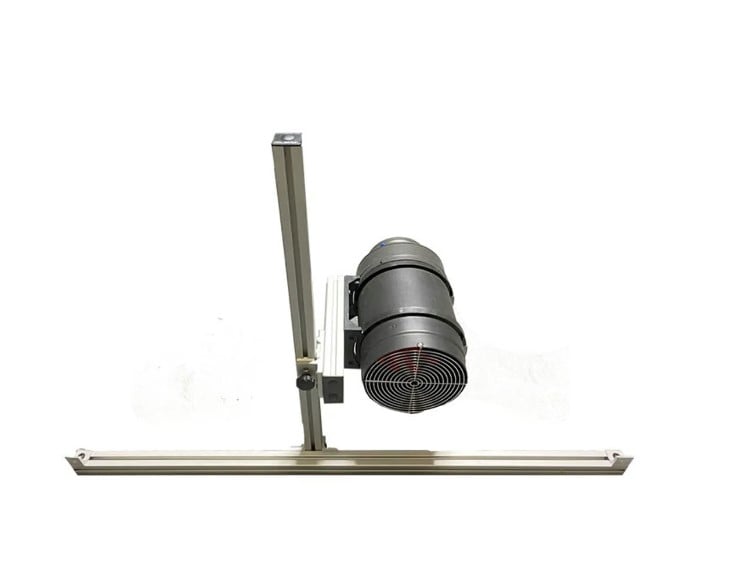

EZ AIR Sub-Canopy System

The EZ Air offers a fully adjustable and customizable sub-canopy airflow system designed for both multi-tier and single-tier grow setups. By injecting fresh, CO2-rich air directly into the underside of the canopy, it enhances photosynthesis and effectively mitigates powdery mildew and botrytis pressure by eliminating stagnant, moist air surrounding the leaves.

Key Features:

  • Configurable for sub-canopy and above-canopy airflow
  • Options for single, double, or quad runs for each tier
  • Complete adjustability of mounting hardware on the x, y, and z axes
  • Utilizes an 8" 735 CFM inline fan for efficient airflow

Benefits:

  • Improves photosynthesis by reducing the thickness of the leaf boundary-layer
  • Increases CO2 diffusion into the leaf, leading to enhanced yield
  • Prevents powdery mildew and botrytis by maintaining optimal airflow

Specifications:

  • Material exposed to plants: Polypropylene tubing – 2mil
  • UL-certified components: 8" Inline fan, On/Off Switch
  • Voltage: 120 VAC
  • Amps: 1.6 Amps
  • Watts: 205 Watts
  • CFM: 735 CFM
  • RPM: 2450 RPM

Airflow Details:

  • Utilizes 6" polyethylene duct with 1/2" holes spaced every 6" at the ten and two positions
  • Airflow is measured at up to 4 meters per second at each hole and up to 2 meters per second 2 feet away from the duct

Included Components:

  • Each unit comes with 40' of tubing

Dimensions:

  • Single Fan:
    • Weight: 11 lbs.
    • Assembled Dimensions: 24" x 24" x 12"
  • Single Fan with Mounts:
    • Weight: 27 lbs.
    • Assembled Dimensions: 48" x 30" x 24"
  • Double Fan with Mounts:
    • Weight: 45 lbs.
    • Assembled Dimensions: 48" x 30" x 24"
