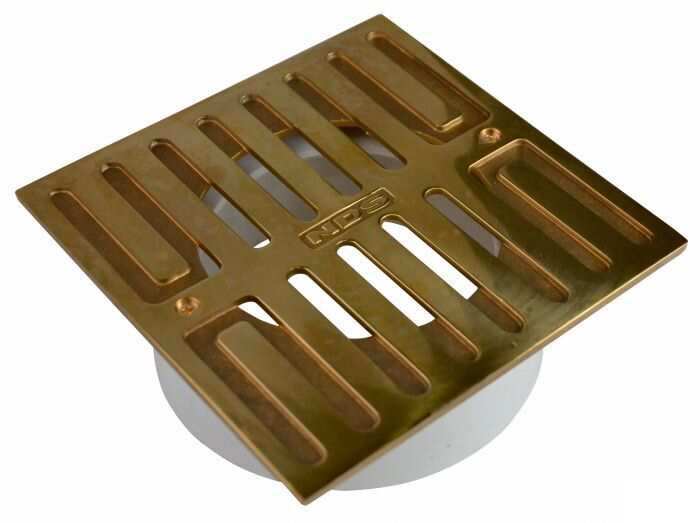

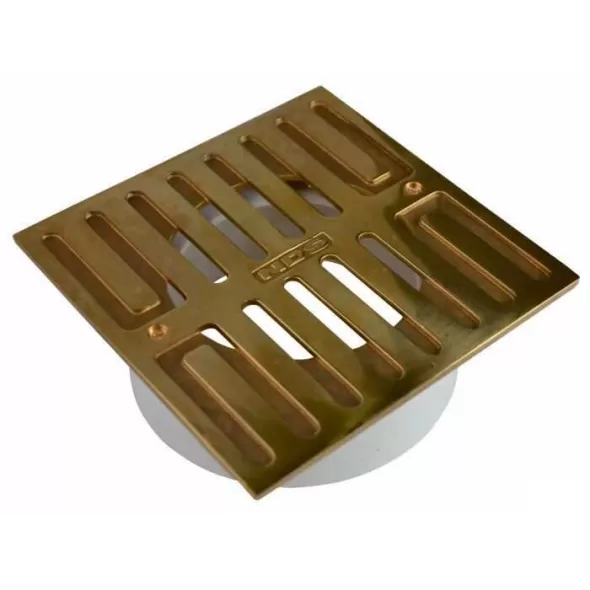

5" Square Drain Grate | 914PB

Specifications

Brand	NDS
Material	Brass
Shape	Square
Type	Pedestrian Traffic Channel Grate
Size	5 in.
UPC	052063591407

NDS 5-inch pro series features include 39 3/8" long deep profile high impact PVC channel drain with mechanical interlocking joints, structural foam polyolefin light traffic channel grate with an open surface area 20.44 square inches per foot, 26.77 GPM per foot, UV inhibitors. Recommended for medium-duty pneumatic tire traffic; autos and light trucks less than 20 mph. End and bottom outlet fits 3" sewer & drain fittings end cap/knock-out end and outlet fitting simplifies assembly and installation class B create a channel as long as you need, or reduce to lengths as short as 4" for smaller, interlocking sections. Load rating: 61-175 psi.
