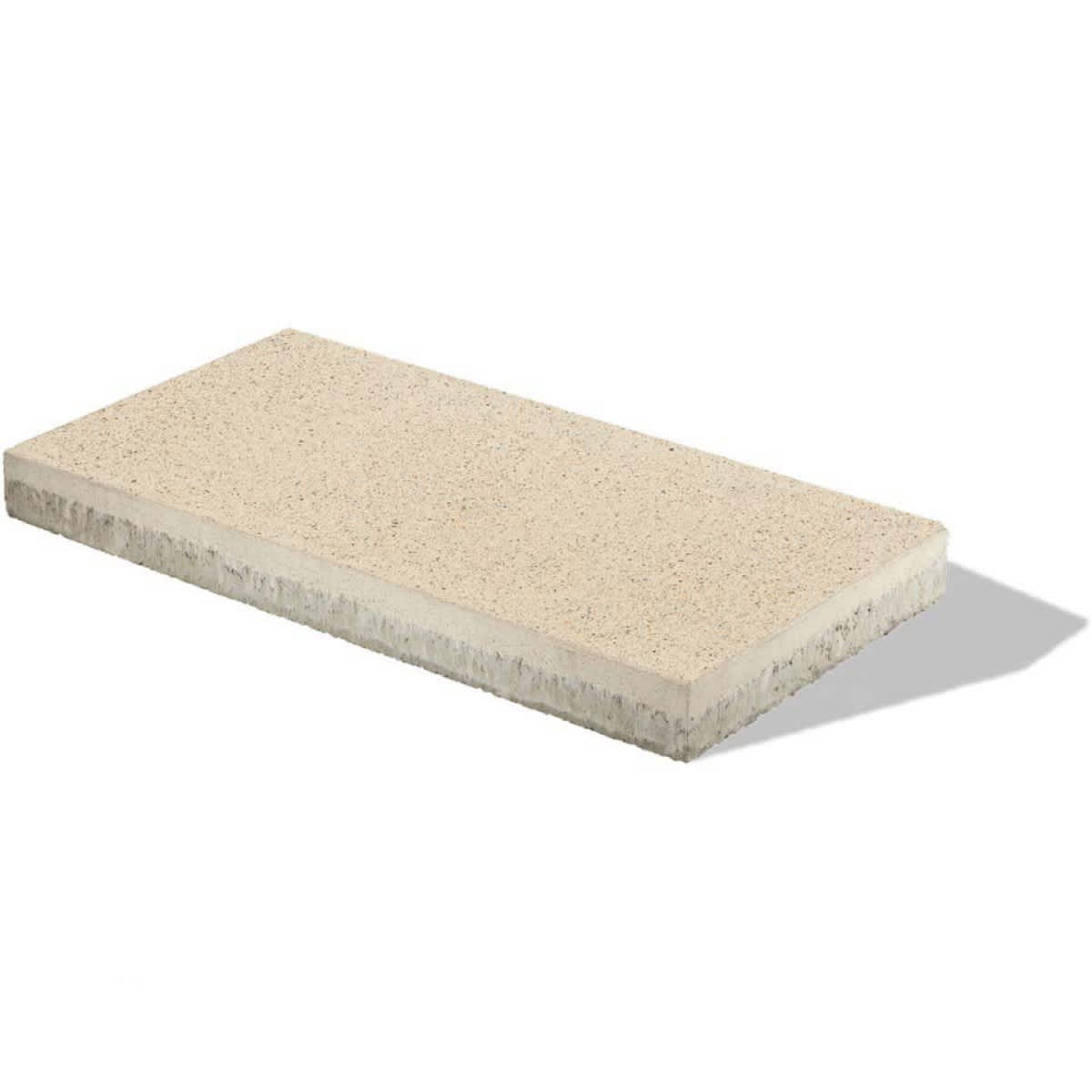

24" x 24" Lugano Arcana EnduraColor Paver | UNP24232S0353121

Key Features

• One layer of DriveGrid™ stabilization grid between sub-grade and base material, use under standard base gravel or permeable base gravel, recommended depth 8 to 10 in. below pavers for maximum stability and performance or as specified by project engineer
• Minimum 6 to 8 in. of 3/4 in. crusher run gravel (any road base standard in accordance with ASTM-D2940) compacted to 98% Standard Proctor Density (SPD)
• 1 in. thick of coarse sand in accordance with ASTM-D2940 screeded over base
• Minimum 6 to 8 in. of 3/4 in. clear open-graded stone compacted to achieve full particle lock up and consolidation
• 1 in. thick of 1/4 in. clear open-graded chip stone - (ASTM No. 8 or 9) screeded over base
• All sands must meet ASTM C144 or C33 specifications, for best appearance and optimal performance, keep jointing materials approximately 1/8 in. below the chamfer (bevel edge) of the paver
• This product has zero bevel edges so handle carefully to prevent edge chipping
• Always install an edge restraint around the perimeter of any paver installation not restrained by building structures, "spike in" edge restraints come in plastic and various metals and work well for most applications, a concrete curb or a "sub surface concrete wedge" can also be installed to retain the edge
• Always use a protective polymer pad on the bottom of your compactor when doing the final compaction of the pavers, an alternative is to use a rubber roller compactor for the final compaction
• Any cleaner specifically designed for pavers may be used for color restoration or general cleaning, follow manufacturer's dilution rates and application procedures, always test a small area to make sure the results are as expected
