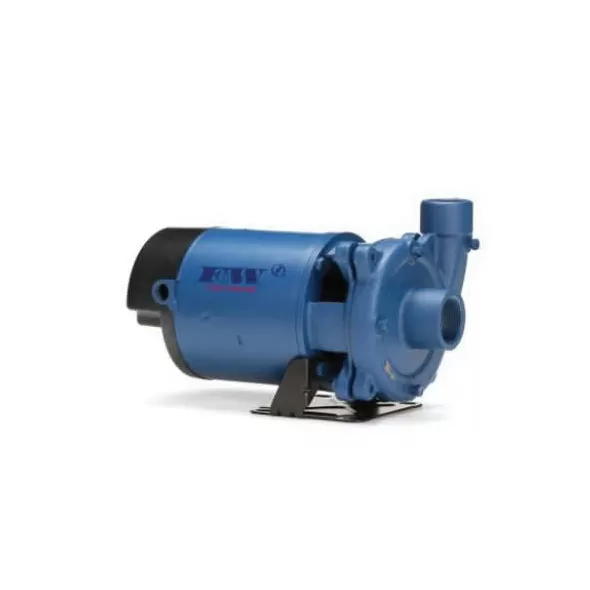

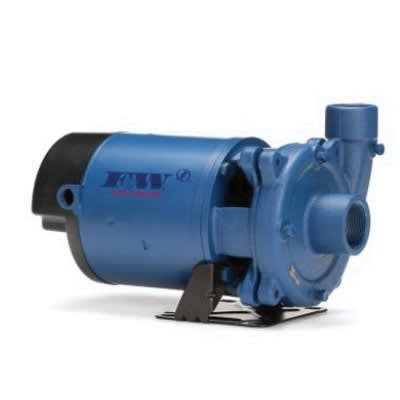

1-1/2 hp 115/230 V 68 gpm 1-Stage Multi-Stage Centrifugal Pump | FLWCJ103P151

Out of stock
0.00
(0 reviews) Write a review
CJ103P151
Request Quote

Minimum quantity for "1-1/2 hp 115/230 V 68 gpm 1-Stage Multi-Stage Centrifugal Pump | FLWCJ103P151" is 1.

Chat Now

Key Features

  • Non self-priming
  • Low-lead brass or thermoplastic impellers
  • Capacities to 6600 gph (24984 lph)
  • Pressures to 45 psi
  • Discharge can be rotated for horizontal or vertical positioning
  • Suction lift to 25 ft (8 m)

Tell us what you need

Description

Specifications

BrandFlint & Walling
AMP Rating21/10.5 A
Discharge1-1/4 in. NPT
Frequency Rating60 Hz
Horsepower1.5 hp
MaterialCast Iron Body, Thermoplastic Impeller
Maximum Head25 ft. Suction
Motor SpecificationNEMA 56J ODP
Number of Stages1
Speed3450 rpm
Voltage115/230 V
UPC054757067175

For continuous-duty high flow, pressure boosting applications such as increasing water pressure from city mains or private water systems. Units are not self-priming but will lift water up to 25 ft. with foot valve and pump suction piping filled with water. Heavy-duty cast-iron body, low lead brass or thermoplastic impellers and mechanical seal with stainless steel, Buna N and carbon-silicon carbide parts. F&W 3450 RPM motor. NEMA 56J frame with threaded shaft.
