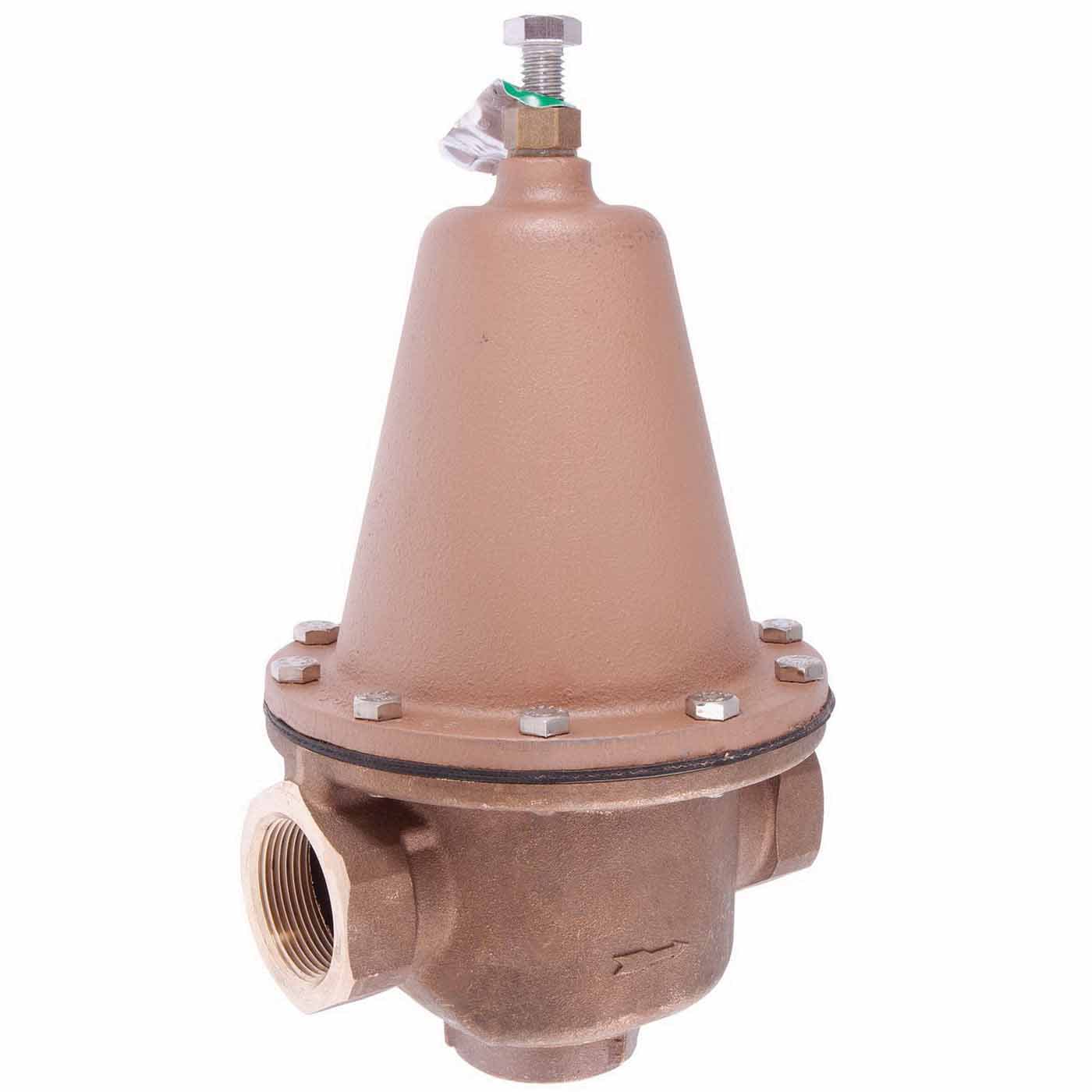

1" FNPT Lead-Free Brass 300 psi LF223 Series High Capacity Water Pressure Reducing Valve | WAT223HP010LF

Specifications

Brand	Watts
Body Material	Lead-Free Brass
Connection Size	1 in.
Connection Type	FNPT
Max Working Pressure	300 psi
Seat Material	Stainless Steel
Trim Material	Bronze
Valve Type	Pressure Reducing Valve
UPC	098268349788

Series LF223 and LF223S high capacity water pressure reducing valves are designed to reduce incoming water pressure to a sensible level to protect plumbing system components and reduce water consumption. The LF223/LF223S features Lead Free construction to comply with Lead Free* installation requirements. This series is suitable for water supply pressures up to 300psi (20.7 bar) and may be adjusted from 25 to 75 psi (172 - 517 kPa). The standard setting is 50psi (345 kPa). Series LF223 features an enlarged diaphragm, spring cage and seat orifice for high capacity performance. Series LF223S has the same options as the LF223, except it is furnished with a strainer. All parts are quickly and easily serviceable without removing the valve from the line. The optional bypass feature permits the flow of water back through the valve into the main when pressures, due to thermal expansion on the outlet side of the valve, exceed the pressure in the main supply
