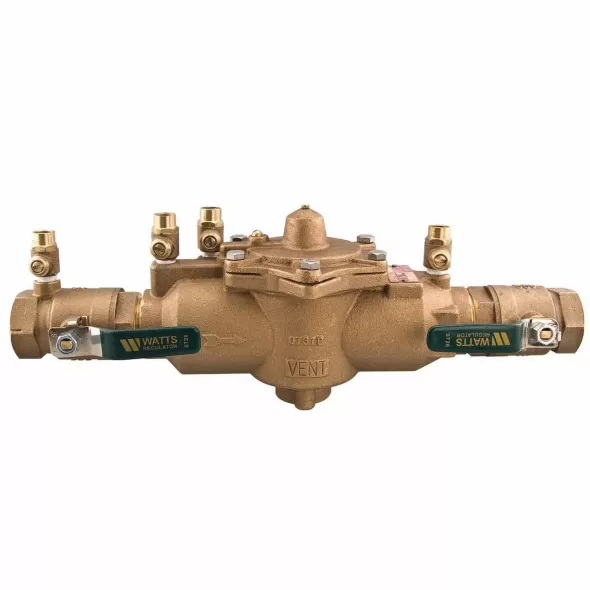

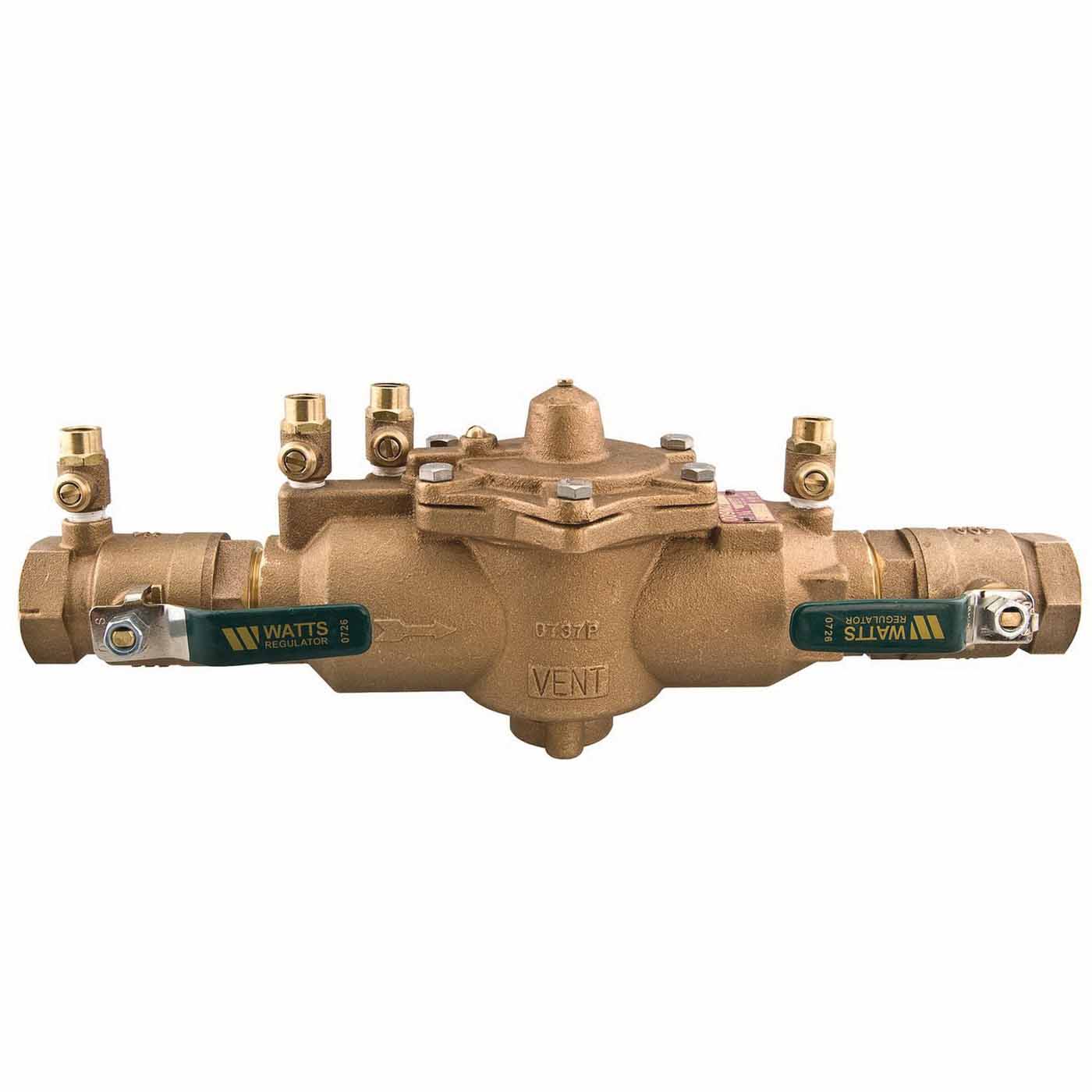

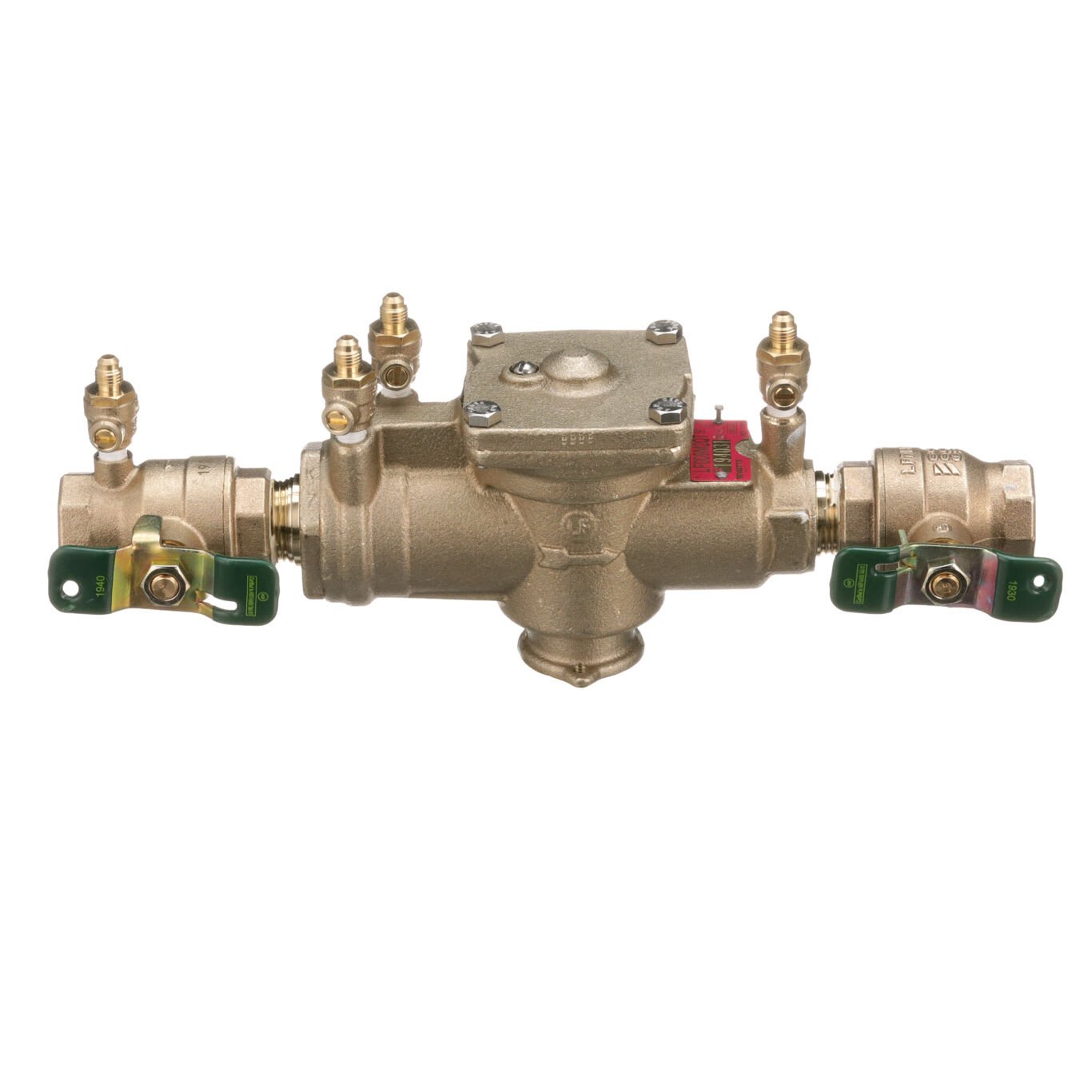

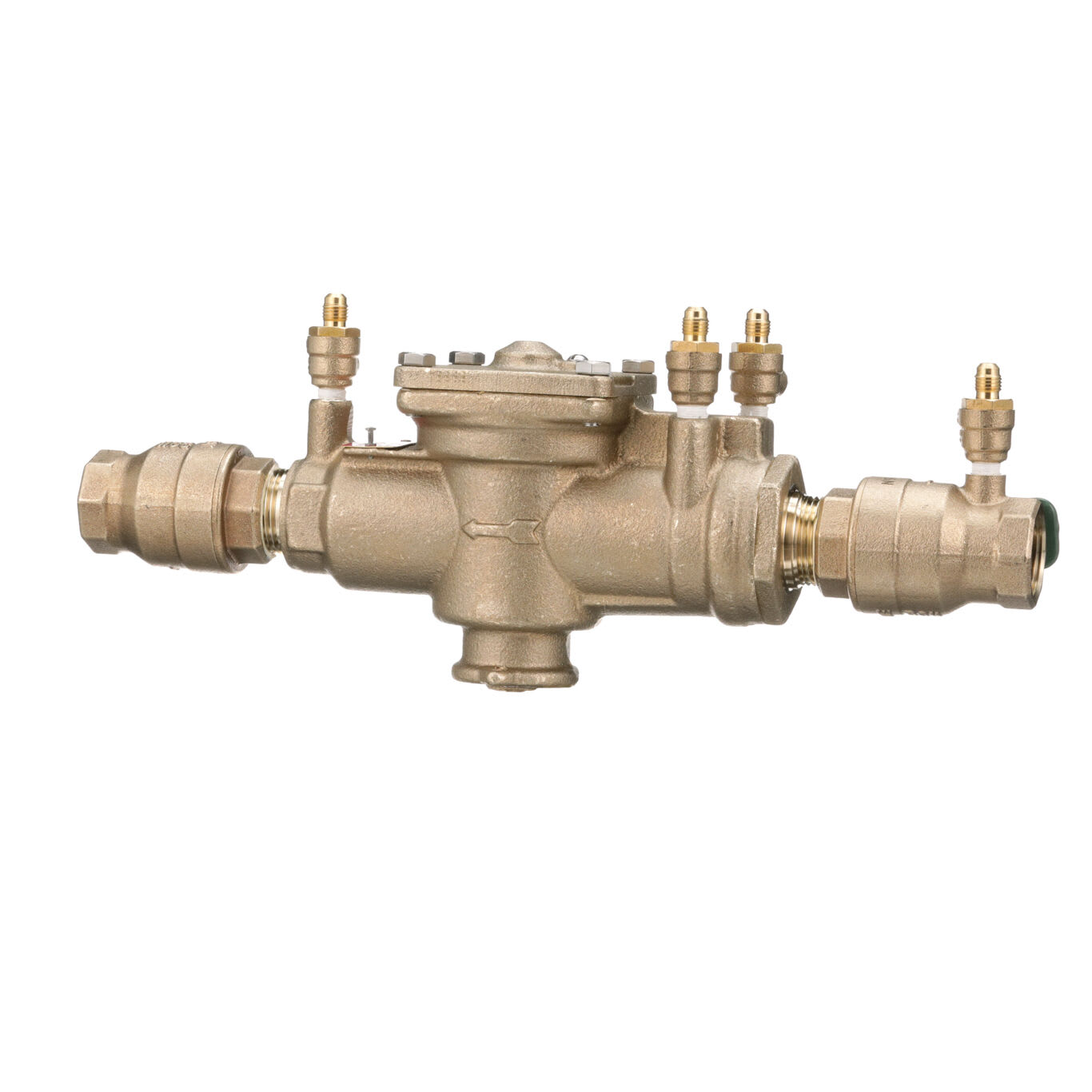

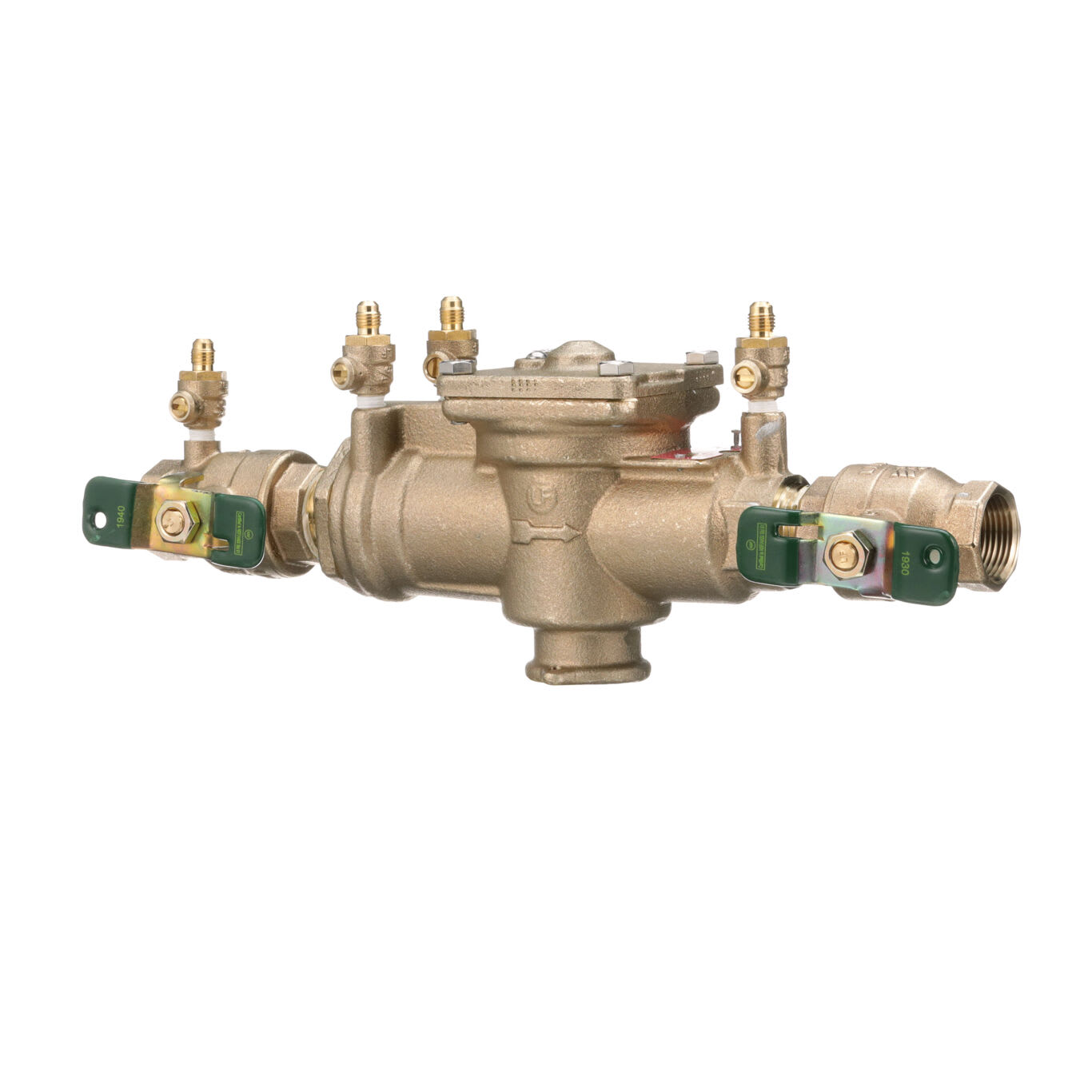

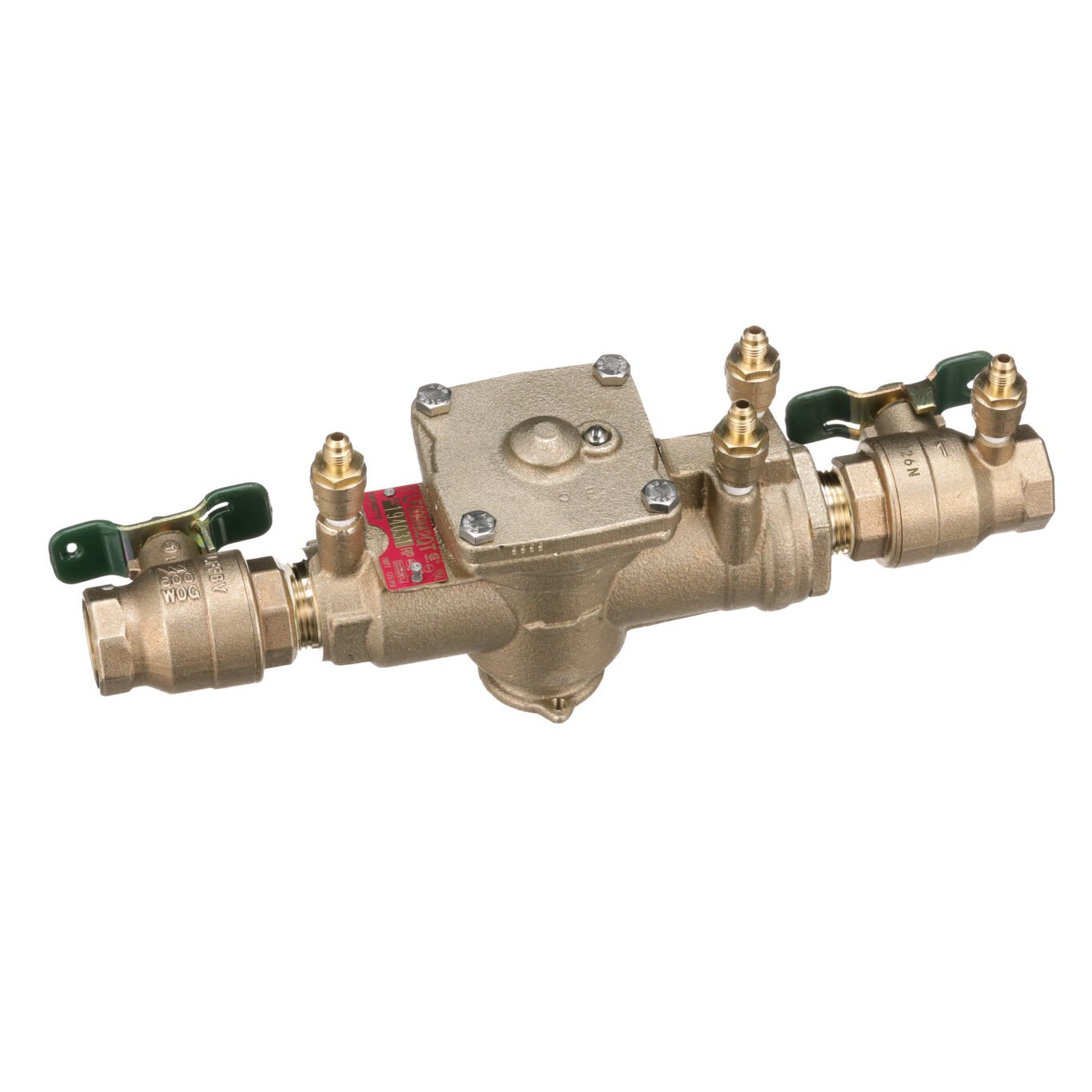

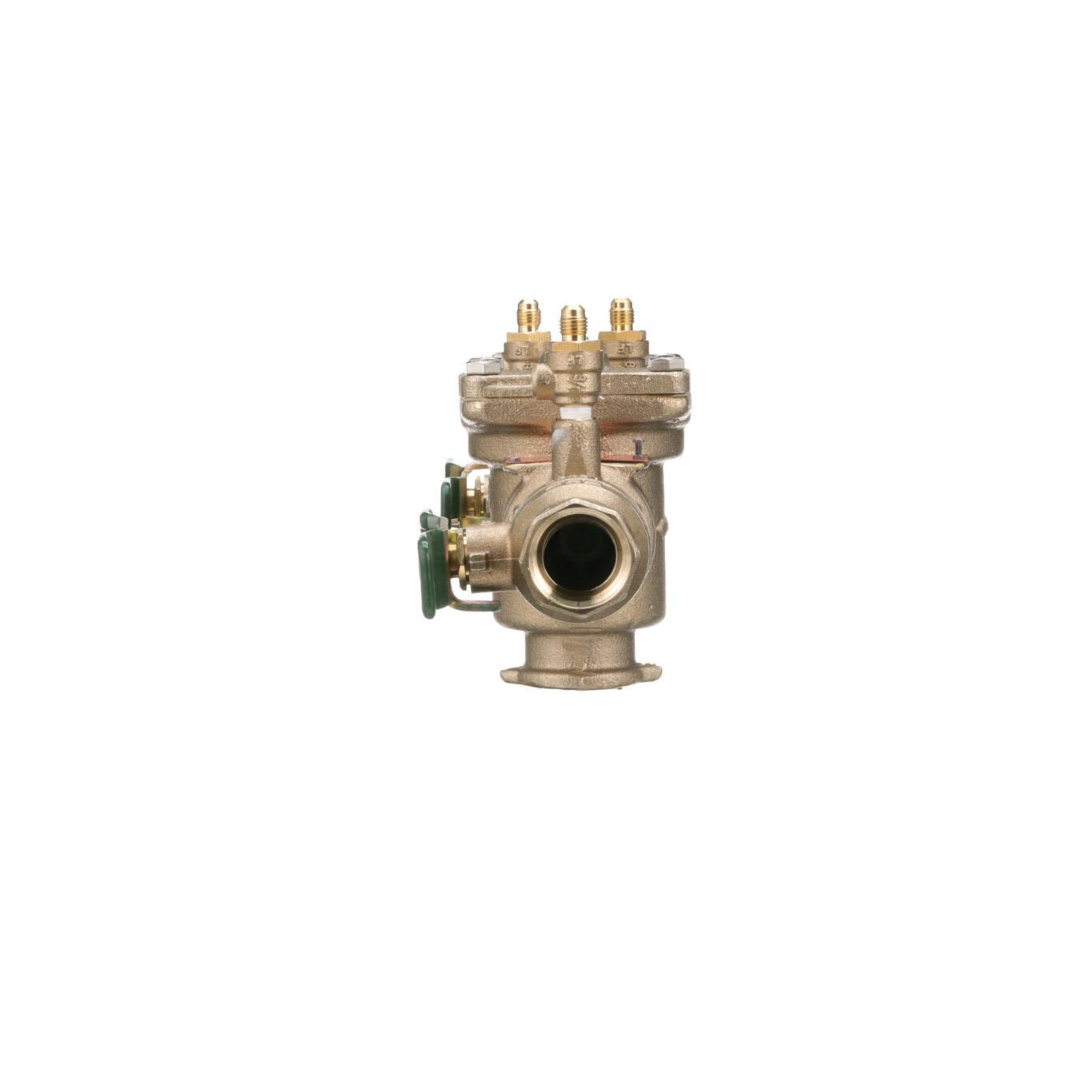

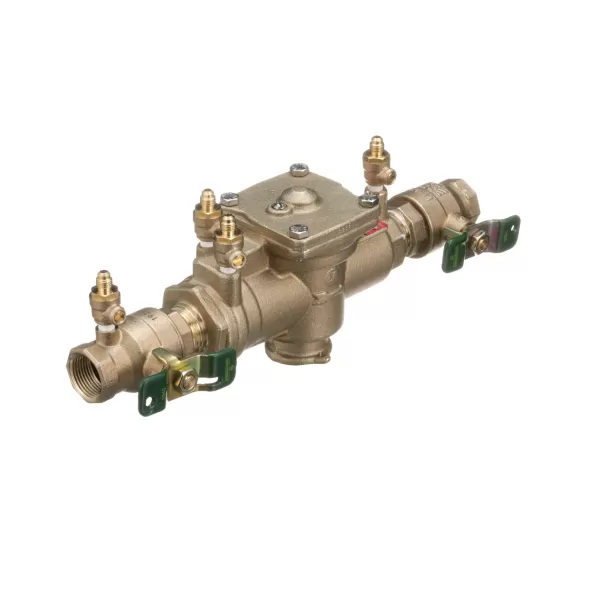

1" FNPT Lead-Free Bronze 175 psi LF009M2-QT Series In-Line Reduced Pressure Zone Assembly | WAT009QT010LF

Specifications

Brand	Watts
Body Material	Lead-Free Bronze
Connection Size	1 in.
Connection Type	FNPT
Pressure Range	175 psi
Temperature Range	33 to 180° F
UPC	098268051131

This 1 in. lead free reduced pressure zone assembly is designed to prevent the backflow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards and for contaminants at the service line entrance. This assembly consists of a lead free bronze body, 1 in. NPT end connections, quarter turn ball valve shutoffs with tee handles, top mounted test cocks, two in-line independent check valves, captured springs and replaceable check seats with an internal relief valve for reduced space requirements.
