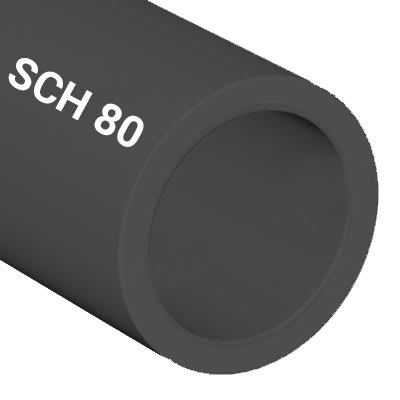

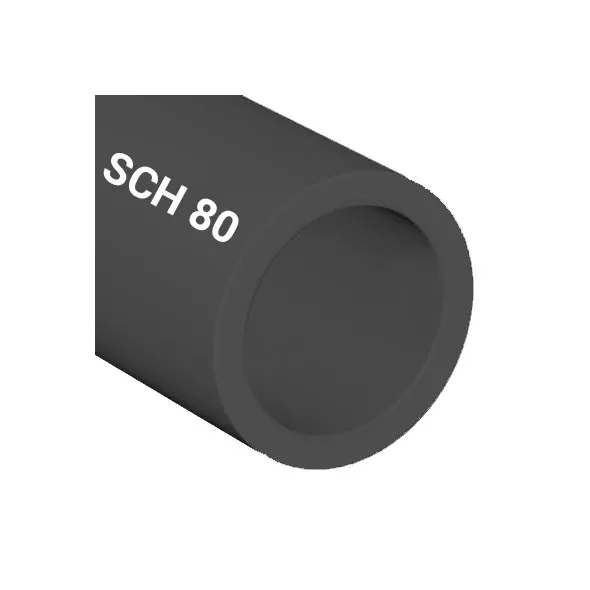

1" X 20' Sch. 80 Gray Bell End PVC Pipe | 010SCH80

Specifications

Max Working Pressure	630 psi
Pipe Diameter	1 in.
Pipe Length	20 ft.
End Connection	Bell End
Minimum Working Temperature	33° F
Maximum Working Temperature	140° F
Schedule	Schedule 80
Material	PVC
Color	Gray

All Xirtec PVC Schedule 40 and 80 pipe shall conform to ASTM D1785, NSF 14, and/or CSA B137.0/B137.3. Xirtec PVC Schedule 40 fittings shall conform to ASTM D2466. Xirtec PVC Schedule 80 socket fittings shall conform to ASTM D2467 and Schedule 80 threaded fittings shall conform to ASTM D2464. All fittings must be third party certified to NSF 14. All PVC fittings shall be molded or fabricated from Xirtec PVC compound compatible with the pipe material. Only Xirtec PVC Schedule 80 pipe shall be threaded and the pressure rating shall be reduced by 50%. Belled end pipe socket dimensions shall conform to ASTM D2672 or F480. All pipe, fittings and valves shall be compatible Xirtec PVC and produced by one manufacturer as supplied by IPEX.
