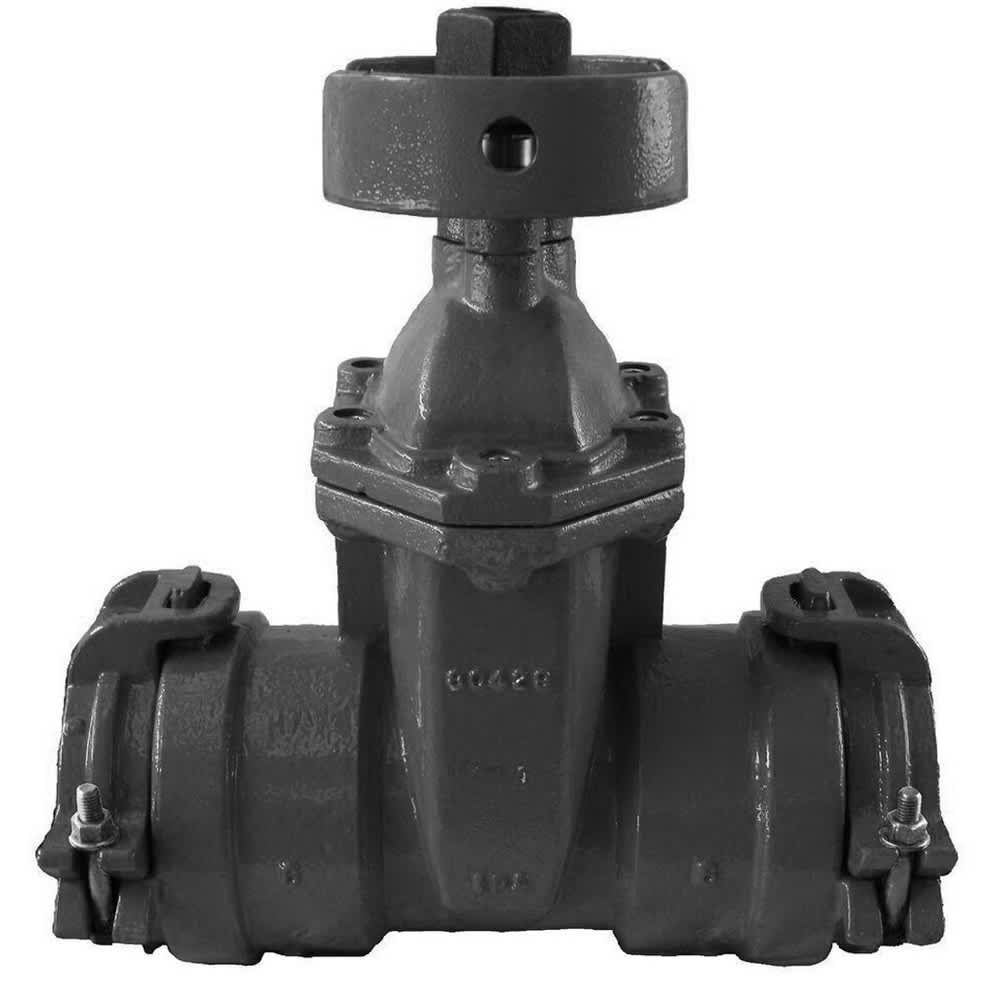

10" Bell End Epoxy Coated Ductile Iron 350 psi LMV Series Mainline Gate Valve | LEMLMV1010BB

Out of stock
0.00
(0 reviews) Write a review
LMV-1010BB
$2,66461

Minimum quantity for "10" Bell End Epoxy Coated Ductile Iron 350 psi LMV Series Mainline Gate Valve | LEMLMV1010BB" is 1.

Chat Now

Key Features

  • The Bell x Bell version provides inline isolation where the location is not near a mainline ductile iron fitting, both bell ends have the proprietary Leemco self-restrained clamps that securely fasten the pipe to the valve
  • The deep bell, self-restrained, gasket outlet has blunt cast serrations which are specifically designed not to damage the plastic pipe surface, the Leemco gasket is made of high-grade EPDM rubber and unique "U-CUP" design, gasket ribbed segments assure compression against side walls to seal under low and high pressures
  • Valve body and outlet clamp are made of durable ductile iron and have a fused epoxy finish inside and out to help protect against corrosive soils and acidic water created by chemical injector and sulfur burner systems
  • Non-rising bronze stem is sealed with a lifetime lubricated high-grade EPDM rubber O-ring, resilient wedge is made of ductile iron with EPDM rubber seal for drip tight shutoff
  • Slotted skirt top the valve is designed for IPS sleeve to protect 2 in. operating nut from dirt and debris, two opposing holes in the shroud can be used to lift and place valve assembly into trench
  • Feet on bottom of valve are designed to keep valve upright on flat surfaces for ease of warehouse or container storage

Tell us what you need

Description

Specifications

BrandLeemco
Body MaterialDuctile Iron
Connection Size10 in.
Connection TypeBell End
Material StandardASTM A536 Grade 65-45-12
Stem MaterialStainless Steel
Top to Inlet Center24.9 in.
Valve TypeGate Valve
