12/2 2500' PE Orange Twisted Jacketed Decoder Cable | WIC1202JH2500OR

Specifications

Brand	Regency Wire
Insulation Material	PE
Insulation Thickness	0.045 in.
Jacket Material	HDPE
Number of Conductors	2
Solid/Stranded	Solid
Voltage Rating	600 V
Wire Gauge	12 Gauge
Wire Roll Length	2,500 ft.
Wire Type	Decoder Cable

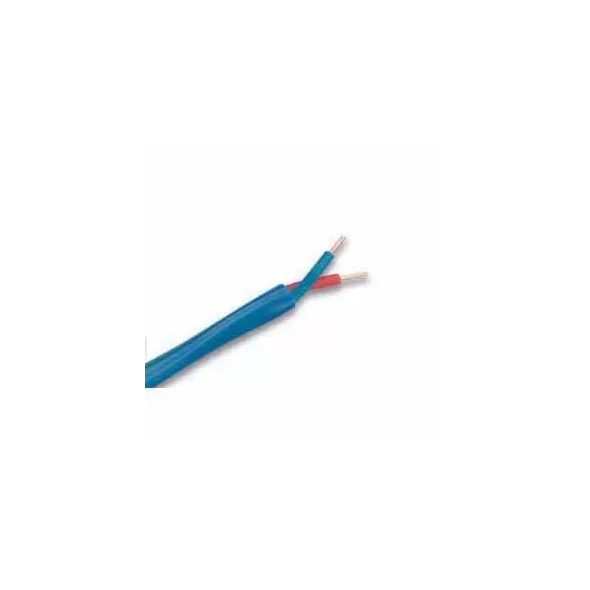

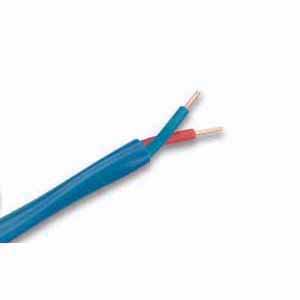

Regency's Hunter® Jacketed Decoder Cable is manufactured for the purpose of direct burial power and control wire applications in accordance with the National Electric Code. Conductor construction is soft drawn bare copper meeting the requirements of ASTM Specification B-3. Gauge sizes 14 - 12 are solid 2 conductor. The insulation is a low density, high molecular weight polyethylene, twisted for systems applications of up to 600 volts. UV inhibitors added for color stability. Conductor colors are blue, red and shall be twisted with a 4 in. lay length. The two twisted conductors shall be extruded with a high density, sunlight resistant polyethylene (HDPE) jacket. A Mylar tape is formed around the conductors for the purpose of separating the conductors from the jacket. The jacket comes in a variety of colors to accommodate easy identification. Comes with pull cord for easy stripping.
