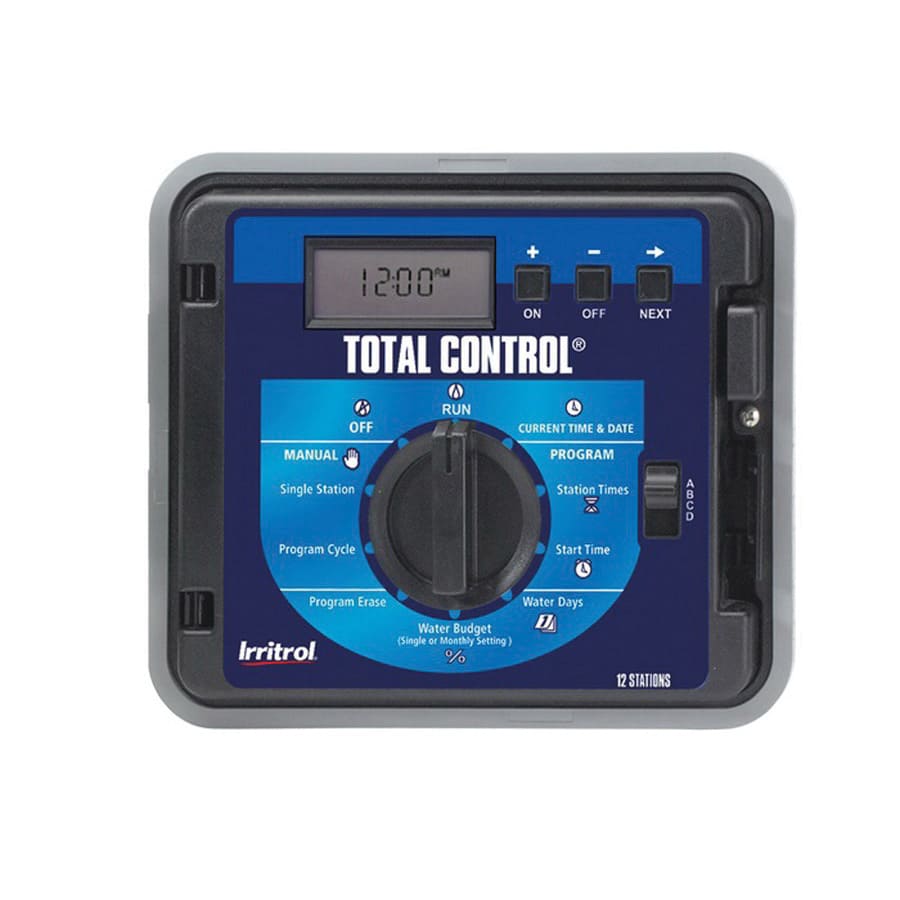

12 Stations Outdoor 10-1/2" x 5" x 8-1/2" R Series Hybrid 4-Program Commercial Controller | IRRTC12EXR

Key Features

• Climate Logic® compatible, turn the controller into a weather based program using an onsite wireless weather sensor
• Sensor hookup with bypass switch compatible with Irritrol®'s RainSensor™ Series, saves water by shutting off the system during rainfall
• Four independent programs, with five selectable start times for a total of 20 possible irrigation cycles per day
• Non-volatile memory, retains all program data for reliable operation
• SMRT Logic® compatible, provide remote control from any internet connected device
• 6, 9 and 12 station models have 12 station terminal boards, allows increase of station count simply by changing face panel module
• Seven-day calendar, odd/even date or day interval options of 1 to 30 days provides the flexibility to meet water restrictions or plant water requirements
• New R models are remote ready for Irritrol®'s Contractor Residential Remote (CRR) Series
• Programmable master valve On/Off per program, provides the flexibility of running some programs with a booster pump and some without
• Flexible station run and start times meet a broad range of watering requirements
• User friendly, 10-position programming dial and large, easy-to read display
• Excluded day option, when used with the odd/even date option, allows selection of specific day(s) not to water
• 365 days calendar for odd/even date programming
• Start time stacking within each program
• Programmable "Rain Off" up to 7 days
• Automatic, semi-automatic, manual and timed manual operation
• Self-diagnostic circuit breaker
• Electrical surge protection (on both input and output lines)
• Remote control ready
