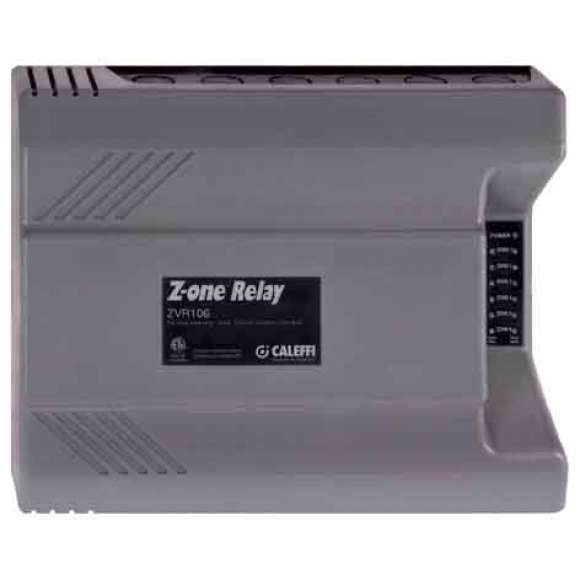

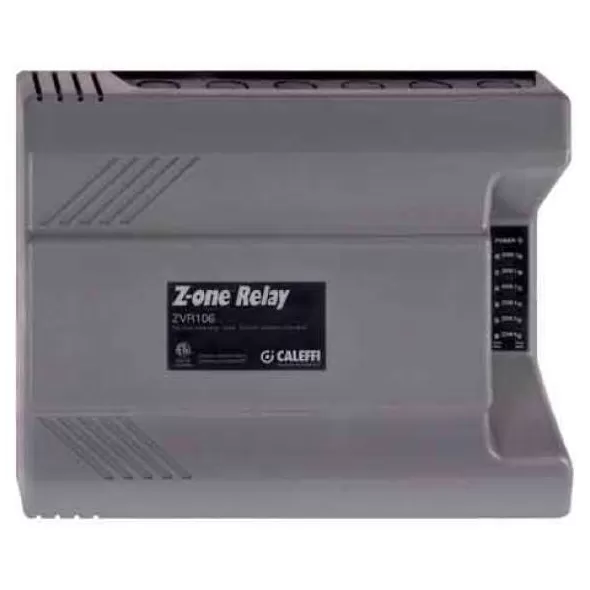

120 VAC 80 VA Multi-Zone 6-Zone Valve Switching Relay

Key Features

• Compatible with two, three and four wire thermostats or other low voltage controllers with switching action
• 120 VAC input
• Heavy-duty, sealed relays
• Three pump outputs (120 VAC/5 A) and 3 to 6 (model dependent) zone valve outputs (24 V)
• Zone priority selectable with 1 hr time out feature
• Convenient R,W,C and T,T,COM dual labeling at thermostat terminals
• System pump status (On/Off) during priority selectable
• Dry contacts (XX,AUX, ZONE 1 E/S) capable of switching line voltage
• Replaceable, snap fit 40 VA transformer on 3 and 4 zone models, expandable to 80 VA with 2nd transformer
• Two replaceable, snap-fit 40 VA transformers (80 VA) on six zone models
