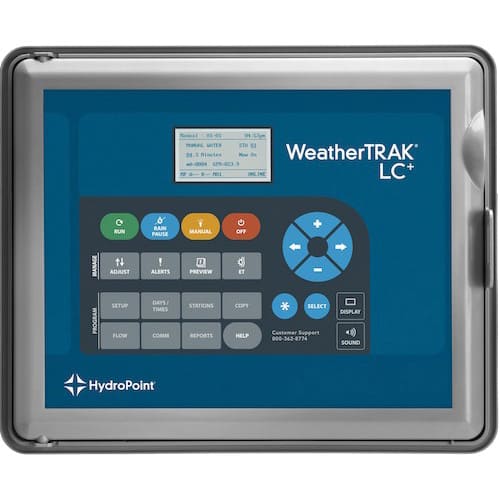

120 VAC Input 24 VAC Output 24-Station 12" x 5-3/4" x 8" High Impact Plastic LC+ Series Light Commercial Irrigation Controller | WTPLCC24PL

Key Features

• Expand with six station expansion keys and an optional key for station-based flow
• Automated daily runtime adjustments using site specific ET Everywhere™ weather data
• Cloud based scheduling engine optimizes by microclimate, plant, soil, sprinkler-type and slope
• Independent station programming (72 cycles/ station) with automated cycle and soak
• User defined water days and water windows
• Program settings at controller, using mobile app, or remotely with WeatherTRAK.net
• Up to 4 simultaneous programs for 24 to 36 stations
• Up to 7 simultaneously energized outputs - 4 programs, 1 manually operated valve, 1 master valve and 1 pump start
• Integrated LTE cellular radio and antenna, over the air updates
• Supports wired or wireless rain sensor, RainShare™ enables multiple controllers to share a single rain sensor
• Daylight bright backlit LCD display
• Built-in fault protection and diagnostics
• Lightning protection up to 6 kV
• Main-line/catastrophic break detection and shut down
• Real time, station specific flow monitoring and control
• Learned flow determined at station level
• Fault detection, diagnostics and alerts
• Normally open or normally closed master valve operation
• Worry-free Wireless Warranty™ covers cellular technology upgrades
