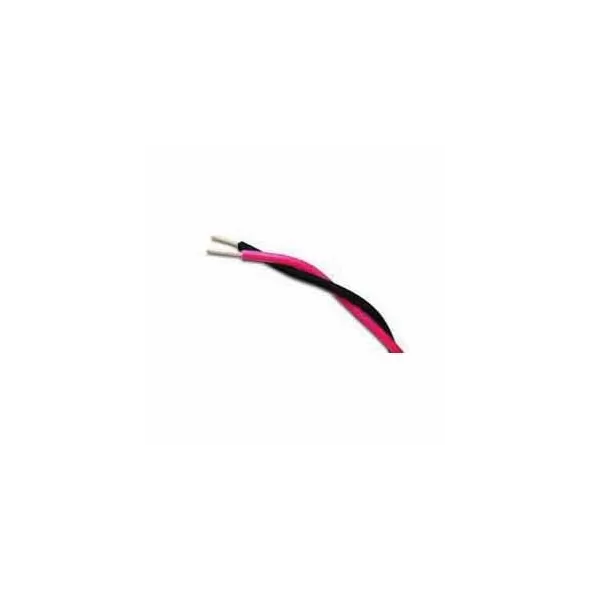

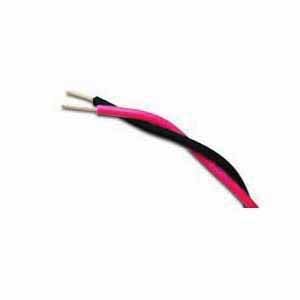

14/2 2500' HDPE Black Twisted Decoder Cable | WIC1402JT2500B

Specifications

Brand	Regency Wire
Insulation Material	HDPE
Number of Conductors	2
Voltage Rating	600 V
Wire Gauge	14 Gauge
Wire Roll Length	2,500 ft.
Wire Type	Decoder Cable

Regency Wire Decoder Cable, 14/2 2500' HDPE Black Twisted Gauge size: 12 and 14 AWG Conductor: Soft drawn bare copper (ASTM Spec. B-3). Solid (14 awg - 12 awg) Length: 2500' Color: Black Product Details: Temperature: 75º C Voltage: 600 volts Insulation: Polyethylene (HDPE) Features and Benefits Regency's Toro Twisted Decoder Cable is manufactured for the purpose of direct burial power wire applications in accordance with the National Electric Code. Conductor construction is soft drawn bare copper meeting the requirements of ASTM Specification B-3. Gauge sizes 14 and 12 are solid 2 conductor. The insulation is a high density polyethylene, twisted for systems applications of up to 600 volts. UV inhibitors added for color stability. Conductor colors are black and red, yellow or orange. Other colors are available on request. Conductors shall be twisted with a 4” lay length. Regency's Toro Twisted Decoder Cable is constructed in accordance with Underwriters Laboratories, Inc.
