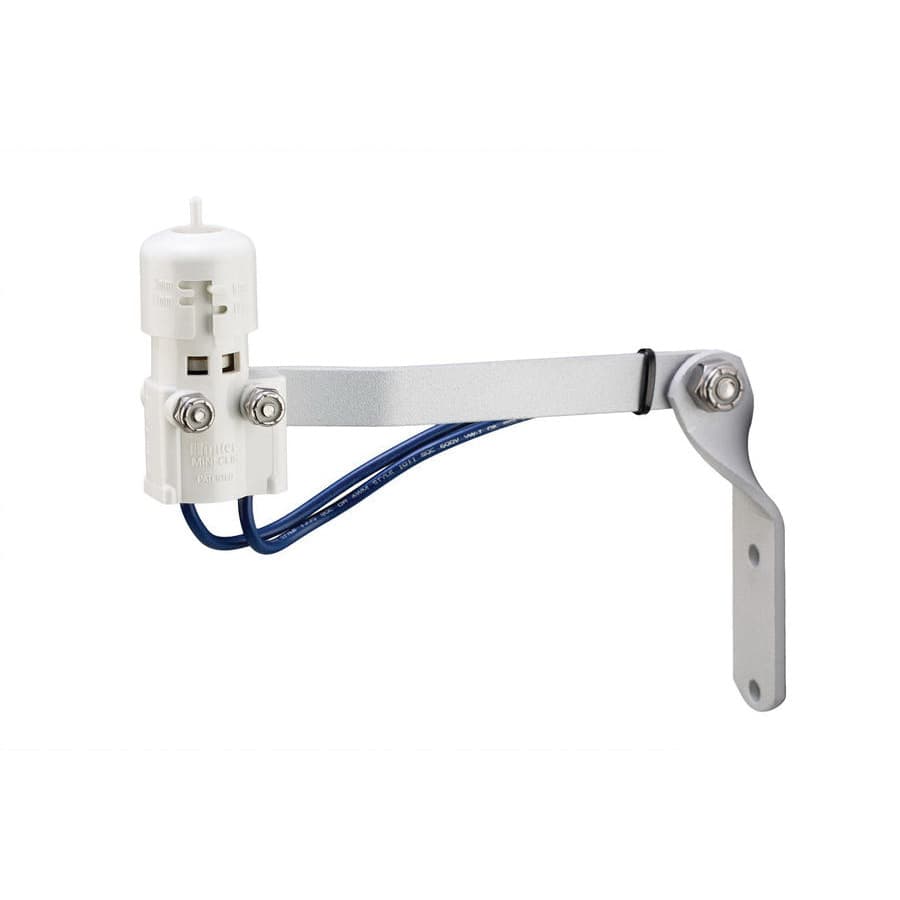

24 VAC Output Outdoor Wired 15 cm x 5 cm Plastic 2 Wire with Conduit Mount Rain Sensor | HTRMINICLIKC

Specifications

Brand	Hunter
Case Quantity	12
Material	Plastic
Output Current	5 A
Output Voltage	24 VAC
Sensor Size	15 x 5 cm
Sensor Type	Rain Sensor
Wired or Wireless	Wired
UPC	611698113318

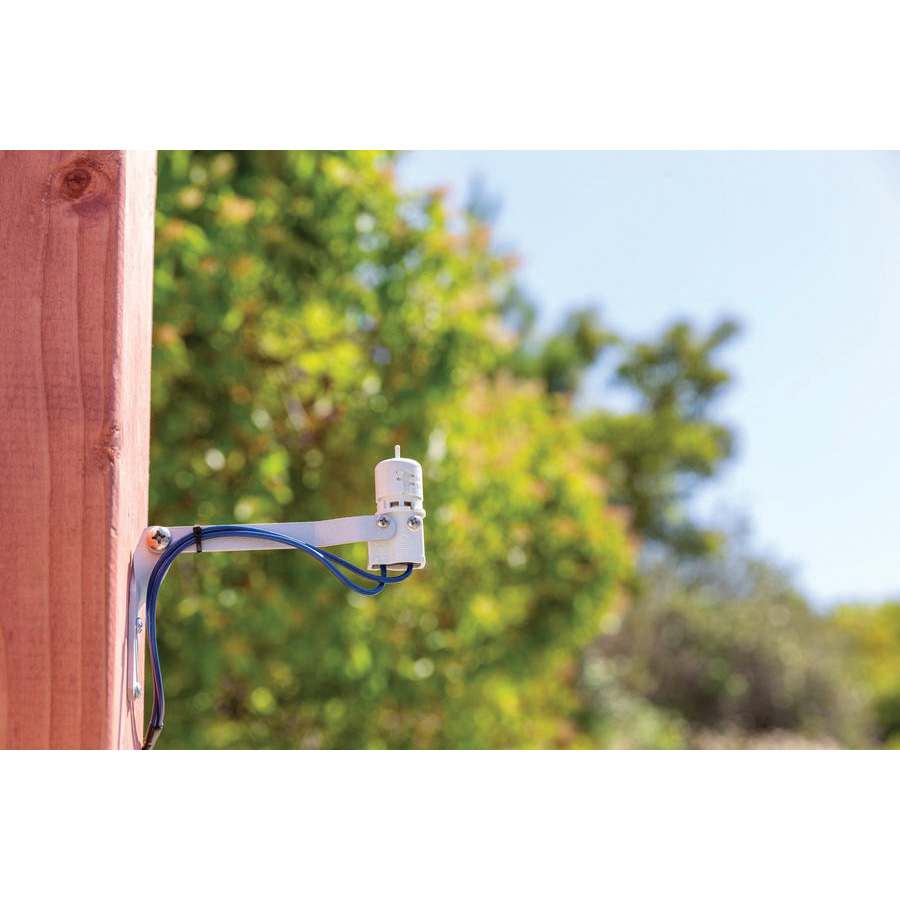

Shop for Hunter Rain Sensor Wired w/Conduit Mount Rain Sensor with Conduit Mount Wired Shuts off sprinkler system automatically when it rains Features and Benefits Irrigating a landscape during a rainstorm not only results in oversaturated plants and turf, it also wastes water. Hunter's Mini Clik rain sensor provides the simplest, most effective way to prevent sprinklers from running during or after any level of rainfall. It easily installs on any automatic irrigation system. The Mini-Clik stops scheduled irrigation when it detects a pre-set level of rain has fallen. This automatic process ensures landscapes aren't watered during a storm. Once the storm passes, the Mini-Clik allows the controller to resume normal irrigation. Mini-Clik is compatible with all Hunter controllers and once plugged in, it ensures that a system doesn't water during the rain. In most installations, the Mini-Clik sensor acts as a switch that breaks the circuit to an irrigation system's solenoid valves in response to rain. This allows the timer to advance as scheduled, but keeps the valves from opening the water flow. Once the Mini-Clik has dried sufficiently, the switch closes again to allow normal operation. The Mini-Clik has 25' (8 m) of cable attached to it. The cable terminates with blue leads. These leads will be wired to the SEN terminals or SEN and SEN COM terminals of the controller. The order in which they are wired does not matter (Figure 1). Remove the jumper from the two SEN terminals. For the conduit model, Mini-Clik-C: This rain sensor unit is the same as the standard model, except there is no aluminum mounting bracket and a 1/2" threaded cap that allows for electrical conduit to totally enclose the wires has been added. Unless local code states otherwise, plumbing-grade PVC pipe can be used, as well as electrical-grade conduit. Product Details Shuts off sprinkler system automatically when it rains Adjustable from ”¦”º" to ¾" of rainfall Debris tolerant for reliable operation Compatible with most irrigation controllers Switch rating (24 VAC): 5 A Includes 25' of 20 AWG sheathed, two-conductor, UL-approved wire Approvals: UL, cUL, FCC, CE, RCM Warranty period: 5 years Helpful Hints for Mounting A. When looking for a suitable location (such as on the side of a building or post), the closer the Mini-Clik is to the controller, the shorter the wire run will be. This will minimize the chance for wire breaks. B. The ideal location for mounting is not always the most practical location. In the case where a compromise must exist (such as a low location on a side wall rather than a preferred higher location), note that the Mini-Clik will still work because it will always receive some rainfall ”” it just will not be as accurate in its gauging as it could be. C. As described in the ”Å“Operation” section of this manual, ”Å“reset rate” refers to the amount of time it takes the Mini-Clik to dry out sufficiently for the sprinkler system to be allowed to come back on. The mounting location will affect this rate and must be taken into consideration should extreme conditions exist. For example, mounting the Mini-Clik on a very sunny, southern end of a building may cause the Mini-Clik to dry out sooner than desired. Similarly, mounting on the northern end of a building with constant shade may keep the Mini-Clik from drying soon enough. Once the Mini-Clik is mounted, run the wire to the controller. Fasten it every few feet with wire clips or staples for best results. If an extension to the wire provided is needed, use the following table to determine the minimum wire gauge needed: If the extension needed: For : 0100' (1530 m) - Use: 18 AWG (1 mm) For :
