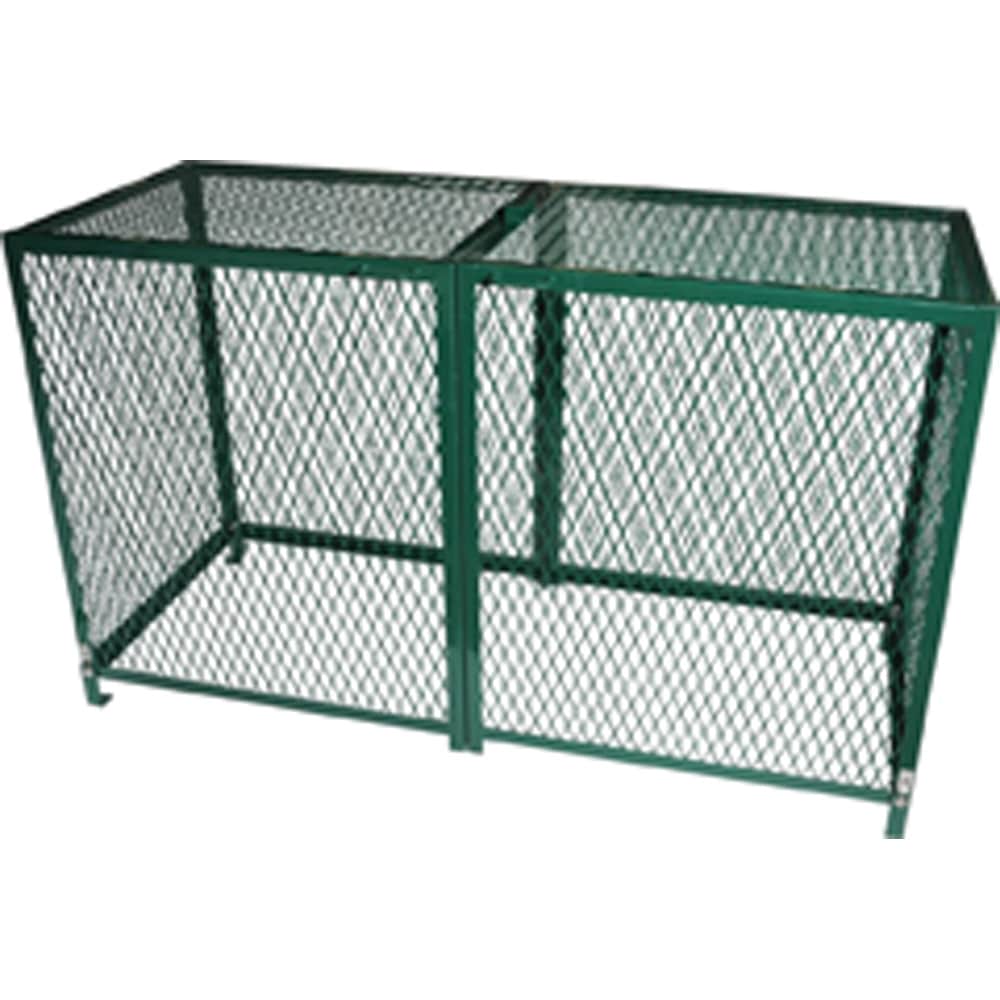

75" x 30" x 42" Plasti-Coat Powder Coated Metal Expanded Metal High Profile Backflow Enclosure | SBXBC75CR

Out of stock
0.00
(0 reviews) Write a review
BC-75CR
$2,91334

Minimum quantity for "75" x 30" x 42" Plasti-Coat Powder Coated Metal Expanded Metal High Profile Backflow Enclosure | SBXBC75CR" is 1.

Chat Now

Key Features

  • Expanded metal vandal resistant backflow cover
  • 1-1/2 in. number 9, flattened expanded metal allows full viewing of backflow preventer
  • Cold rolled, formed steel frame provides strength and stability
  • Lock tab provides for use of padlock
  • Easy lift handles and hinges access provides for service and testing
  • Coated with a performance polymer alloy coating to prevent handling injury
  • Open diamond-patterned panels minimizes surface area for graffiti
  • Standard color for powder coated enclosures is dark green, all other colors are available at an extra charge
  • Accepts padlock
  • Hinged for easy access

Tell us what you need

Description

Specifications

BrandStrong Box

The backflow cover shall be of a vandal-resistant nature manufactured of formed and expanded metal, coated with a performance polymer alloy coating to prevent handling injury. The cover shall have a hinge on one end and a locking tab on the other end. The hinge shall be attached to mounting brackets with carriage bolts to allow removal of the cover from the hinges. The mounting brackets shall be submerged into the concrete a minimum of 2 in., positioning the cover one and one half inches above the concrete. The locking tab shall accept a padlock. Handles shall be attached to the sides to facilitate raising and lowering of the cover. The cover shall be covered with a zinc base powder coat then powder-coated with a polyester TGIC coating having a minimum thickness of 2.5 mil.
