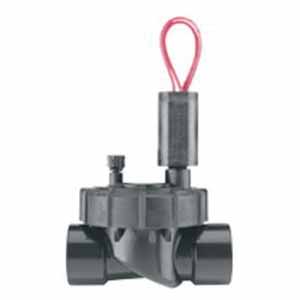

Hunter PGV Jar Top Valve 1" Slip

Specifications

Brand	Hunter
Body Material	Pro Plastic
Case Quantity	20
Connection Size	1 in.
Connection Type	Female Slip
Electrical Rating	24 VAC, 350 mA Inrush, 190 mA Holding at 60 Hz, 370 mA Inrush, 210 mA Holding at 50 Hz
Operator Type	Solenoid
Valve Type	Globe Valve
UPC	611698123959

Shop for Hunter Globe Jartop Valve, 1" Female Slip w/o Flow Control Inlet Diameter: 1" Height: 5½" Length: 4½" Width: 3¼" Features and Benefits For maximum in convenience, reliability, and ease of service in a residential valve, the PGV Jar-Top is the solution. With the PGV Jar-Top, it's possible to service a Hunter valve without using any tools. Even with this ease-of-maintenance and operational simplicity, the PGV Jar-Top still delivers quality and performance to handle the demands of any residential system. Choose from a wide range of different configurations for specific installations that vary from region to region. All models feature durable, high-grade, corrosive and UV-resistant PVC construction, glass reinforced jarring and a rugged double-beaded, leak-proof diaphragm with support to prevent stress failure. Product Details External/internal manual bleed allows for quick and easy activation at the valve Double-beaded diaphragm seal design ensures leak-free performance Captive bonnet screws eliminate the possibility of lost parts during disassembly Triple-tool bonnet screws are compatible with standard or Phillips screwdrivers as well as a nut driver Jar-top models provide easy access without tools Encapsulated solenoid with captive plunger used on every Hunter valve provides hassle-free service ACCU SYNC® PRESSURE REGULATION Avoid sprinkler over-pressure conditions and experience significant water savings with Hunter's Accu Sync pressure regulator. This option is available in adjustable pressure or fixed pressure models. PGV PRESSURE LOSS IN PSI FLOW GPM 1" GLOBE 1" ANGLE 1 ½" GLOBE 1 ½" ANGLE 2" GLOBE 2" ANGLE 1 1.1 1.0 - - - - 5 1.9 1.0 - - - - 10 1.9 1.0 - - - - 15 1.6 1.0 - - - - 20 3.3 2.0 3.0 3.0 1.0 1.0 30 6.1 3.0 3.0 3.0 1.0 2.0 40 - - 3.0 3.0 2.0 2.0 50 - - 4.0 3.5 1.0 1.0 60 - - 5.0 4.0 2.0 2.0 80 - - 5.5 4.5 3.0 2.0 100 - - - - 5.0 3.0 120 - - - - 6.0 5.0 PGV PRESSURE LOSS IN BARS M3/HR 1" GLOBE 1" ANGLE 1 ½" GLOBE 1 ½" ANGLE 2" GLOBE 2" ANGLE 0.23 0.08 0.07 - - - - 1.14 0.13 0.07 - - - - 2.27 0.13 0.07 - - - - 3.41 0.11 0.07 - - - - 4.54 0.23 0.14 0.21 0.21 0.07 - 6.81 0.42 0.21 0.21 0.21 0.07 - 9.08 - - 0.21 0.21 0.14 - 11.36 - - 0.28 0.24 0.14 - 13.63 - - 0.34 0.28 0.14 - 18.17 - - 0.38 0.31 0.14 - 22.71 - - - - 0.21 - 27.25 - - - - 0.34 -
